| Price | EXW/FOB/CIF/DDP |
| MOQ | 100PCS |
| Delivery Time | 20-30days |
| Brand | FODOR |
| Place of Origin | China |
| Certification | ISO9001:2015 |
| Model Number | HEAT SINK-S0015 |
| Packaging Details | Blister packaging |
| Payment Terms | T/T, Western Union |
| Supply Ability | 30000 PCS Per month |
| Place of Origin | China | Delivery time | 20-30days |
| Keyword | skived fin heat sink | Packaging Details | Blister packaging |
| Model Number | HEAT SINK-S0015 | Supply Ability | 30000 PCS Per month |
| Processing Service | CNC,plating nicle | Certification | ISO9001:2015 |
| Brand Name | FODOR | Payment Terms | T/T, Western Union |
| Raw Material | AL1050/6063 | Price | EXW/FOB/CIF/DDP |
| Delivery Time | 20-30days | Minimum Order Quantity | 100PCS |
| Surface Treatment | natural anodizing 14um | Application | Aluminum Skived fin heat sink |

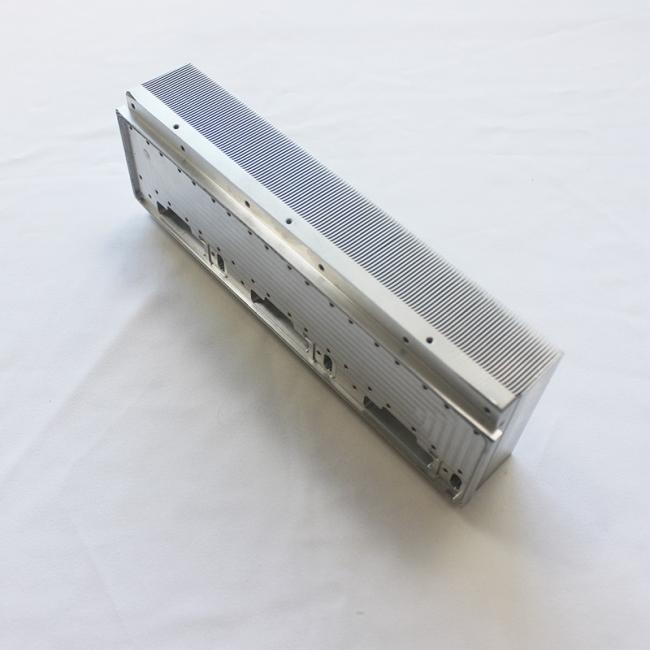

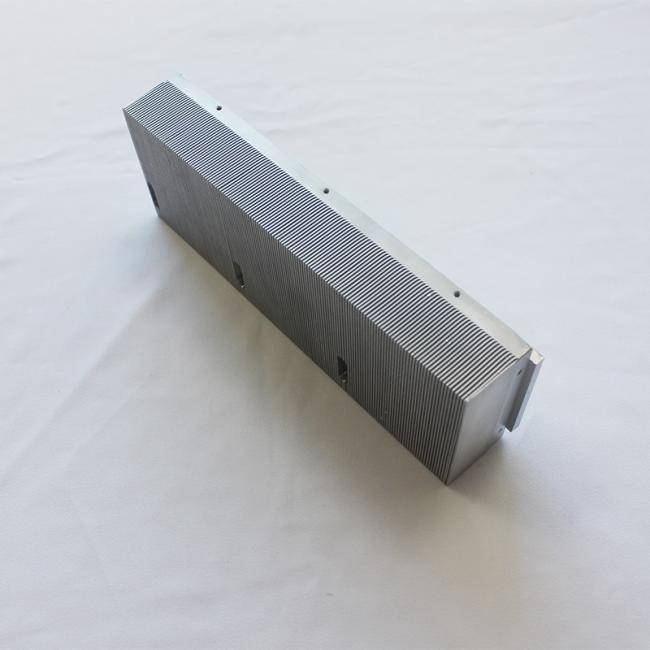

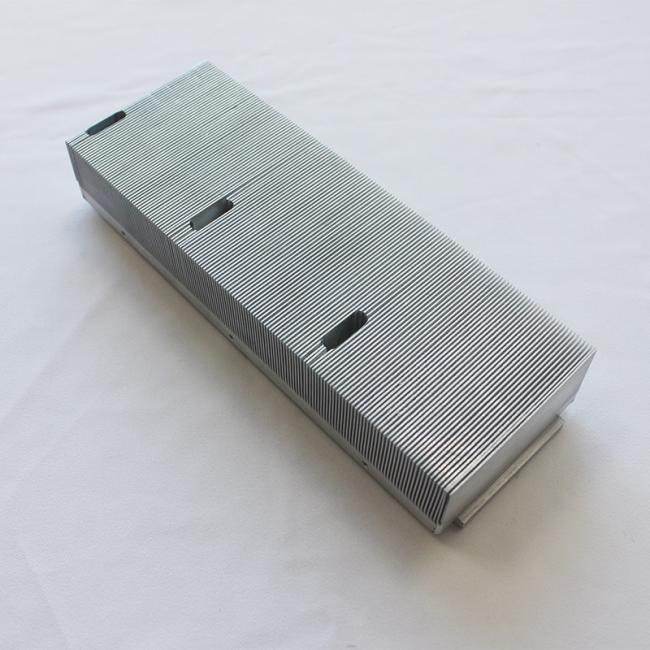

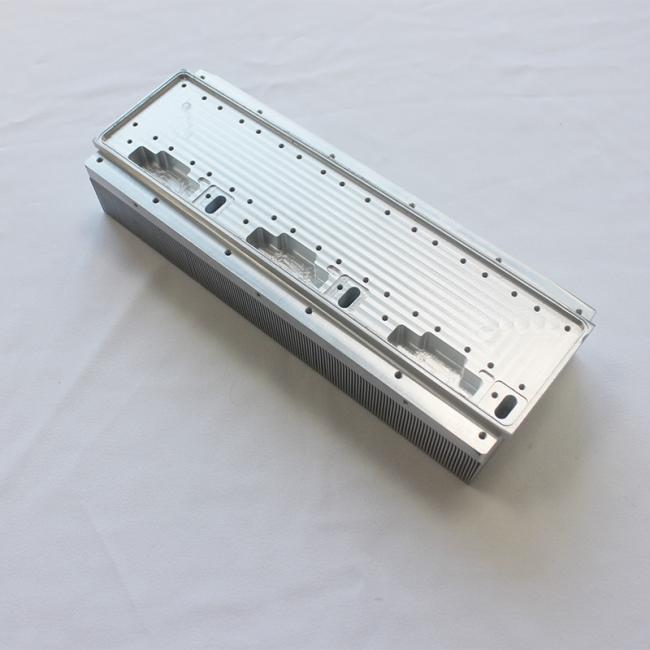

High Precision Aluminum 6063 Skived Fin Heat Sink With Quick Samples
Quick Detail
| Raw Material | AL1050 |
| Custom Service | Yes, OEM/ODM Service |
| Quality System | ISO9001:2015 |
| Processing Technology | CNC Gear /Wood machining/CNC/Riveting |
| Surface treatment | clear anodizing |
| Packing Way | Blister packaging or special packing you would like |
| Application Scenario | Electronic equipment heat sink |
| MOQ Request | 100/500/1000 |
Description
This heat sink is based aluminum profile 6063-T5 material to processing, first of all, we check the raw material dimension is fine or not, the second is that according to the drawing, use the CNC Gear shovel machine to do the dimension, the third is that accroding to the drawing, the forth is that use the CNC to do exact dimension, the fifth is do anodizing clear, the last step is riveting, and then inspection/packing. First inspection and patrol inspection are done in processing .
Notes
This is a skived fin heat sink
How is a Skived Heatsink manufactured?
A Skived Heatsink is manufactured using a skiving machine that uses a blade to cut material in thin slices, and then push the skived fin up. For a heatsink application, the manufacture of ultra thin fins is possible, and we have produced fins as thin as .008”. The process allows high aspect ratios that provide greater surface area for maximum heat dissipation. We typically use this process for copper Skived heatsinks, however Aluminum Skiving is possible. As this is very easy to set up, typically there are minimal setup fees which allow for rapid prototyping of new designs. It is possible to machine additional features after the skiving process has been completed, but requires an experience to avoid stresses on the heatsink.
Fodor can offer copper skived fi heat sink and aluminum(AL1050/6063) skived fin heat sink.
