| Cable type | standard center loose tube GYTA53 direct buried fiber optic cable | Number of conductors | 288 cores |
| Type | 2 4 6 8 12 24 48 96 144 core fiber optic cable | Price | Negotiable |
| Delivery Time | 2 Weeks after payment | Product name | UG GYTA53 Fiber Optic Cable |
| Minimum Order Quantity | 3KM | Application | Direct Buried |

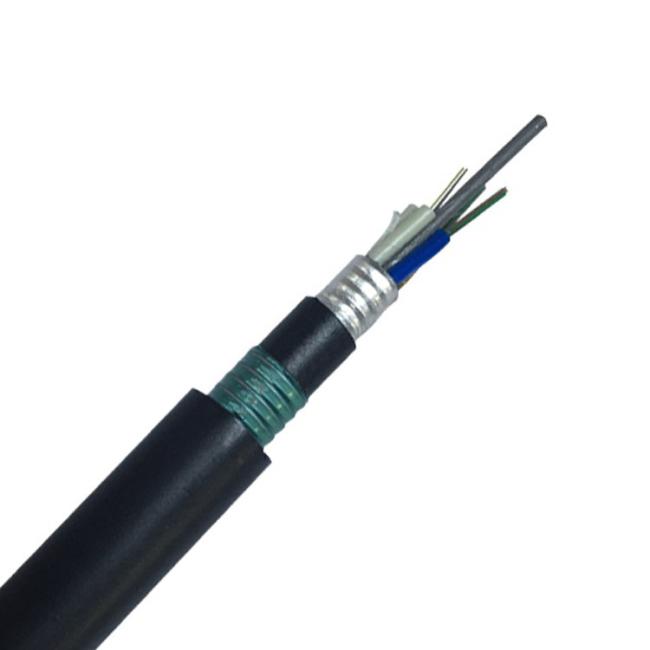

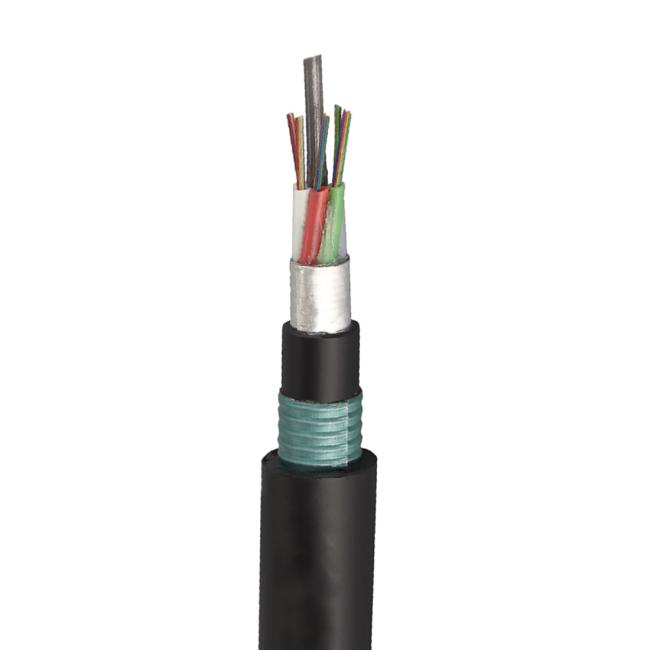

GYTA53 Steel Tape Outdoor Armored Submarine Fiber Optic Cable Communication Cable

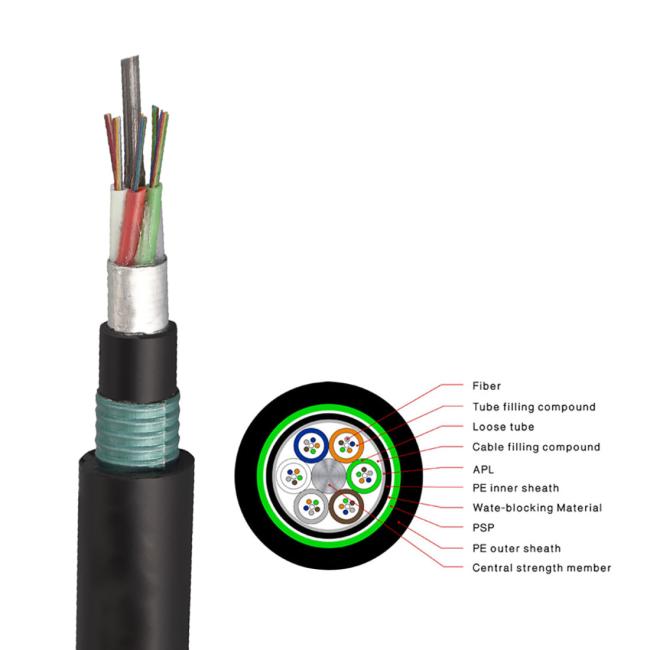

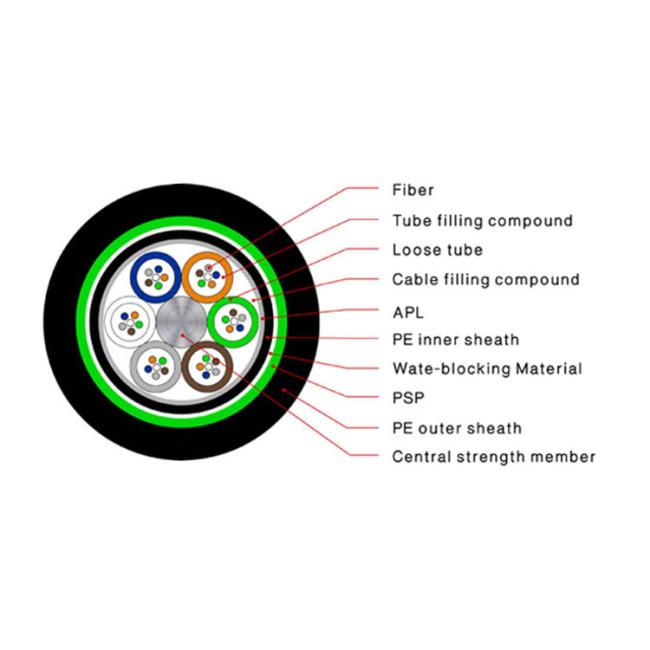

In the GYTA53 cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound. Tubes and fillers are stranded around the strength member into a circular cable core. An Aluminum Polyethylene Laminate(APL) is applied around the core. Which is filled with the filling compound to protect it. Then the cable is completed with a thin PE sheath. After PSP is applied over the inner sheath, the cable is completed with a PE outer sheath.
Armored Loose Tube Double Jacket/Single Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including direct buried. With fiber counts up to 288 and S-Z strand designs.
Features
- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
- Crush resistance and flexibility
- The following measures are taken to ensure the cable watertight:
- Steel wire used as the central strength member
- Loose tube filling compound
- 100% cable core filling
- APL moisture barrier
- PSP enhancing moisture-proof
- Water-blocking material
Applications
Direct
buried,
Duct
or
Underground
conduits.
Backbone.
Technical Specifications
GYTY53(DJSA)
|
Fiber Count |
Nominal Diameter (mm) |
Nominal Weight (kg/km) |
Allowable
Tensile
Load (N) |
Allowable
Crush
Resistance (N/100mm) |
||
| Short Term | Long Term | Short Term | Long Term | |||
| 2~30 | 12.2 | 142 | 3000 | 1000 | 3000 | 1000 |
| 32-48 | 12.8 | 155 | 3000 | 1000 | 3000 | 1000 |
| 50-72 | 13.6 | 170 | 3000 | 1000 | 3000 | 1000 |
| 72-96 | 15.0 | 192 | 3000 | 1000 | 3000 | 1000 |
| 96-144 | 16.6 | 220 | 3000 | 1000 | 3000 | 1000 |
| ＞144 | Avaliable upon customer's request | |||||
GYTA53( Aluminium polyethylene laminate)
|
Fiber Count |
Nominal Diameter (mm) |
Nominal Weight (kg/km) |
Allowable
Tensile
Load (N) |
Allowable
Crush
Resistance (N/100mm) |
||
| Short Term | Long Term | Short Term | Long Term | |||
| 2~30 | 13.2 | 162 | 3000 | 1000 | 3000 | 1000 |
| 32~48 | 13.8 | 175 | 3000 | 1000 | 3000 | 1000 |
| 50~72 | 14.6 | 205 | 3000 | 1000 | 3000 | 1000 |
| 74~96 | 16.0 | 230 | 3000 | 1000 | 3000 | 1000 |
| 98~144 | 17.6 | 285 | 3000 | 1000 | 3000 | 1000 |
| ＞144 | Avaliable upon customer's request | |||||
Characteristics
·
Good
mechanical
and
temperature
performance
·
High
strength
loose
tube
that
is
hydrolysis
resistant
·
Special
tube
filling
compound
ensure
a
critical
protection
of
fiber
·
Crush
resistance
and
flexibility
·
PE/LSZH
sheath
protects
cable
from
ultraviolet
radiation
·
100%
cable
core
filling
| Product Name | Double Jacket Fiber Optic Cable |
| TYPE | Outdoor Direct Buried |
| Brand Name | SL |
| MODEL NUMBER | GYTA53 |
| No Of Fiber | 12/24/48/72/96/144/288 optional |
| Fiber Type | Single Mode, G.652D, G.657A1, G.657A2, G655 |
| Loose Tube | PBT |
| Sheath 1 | PE |
| Armoured | Corrugated Steel Tape |
| Sheath 2 | PE |
| Application | Telecommunications, Direct burried |
| Operating Temperature | -40°C to+70°C |
| Package | Polywood Drum ( with test report and sticker) |
| OEM logo print | OK on cable and drum sticker |
| Standards | IEC 60794-1 YD/T901-2009 |
| Cable Sheath Marking | ||||||||||
| XXXOFC 2021 GYTA53 XXCORE SM XXXXM | ||||||||||
| XXXOFC | manufacture's brand, (as client order) | |||||||||
| 2021 | manufacture year | |||||||||
| GYTA53 | cable type | |||||||||
| XXXXM | marks for meters | |||||||||
| Item | Parameter | |
| Fiber-G652D | Attenuation Coefficient | 1310nm dB/km ≤0.4 |
| 1550nm dB/km ≤0.3 | ||
| Outer jacket | Material | MDPE |
| Color | Black | |
| Min. bending radius | Static | 10 times cable diameter |
| Dynamic | 20 times cable diameter | |
| Repeating bending | Load:150N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage. | |
| Tensile performance | Short term | 1500N The addition attention≤0.1dB,fiber strain ≤0.15% |
| Crush | Short term | 1000N/100mm The addition attention≤0.1dB |
| Torsion | Load:150N; number of cycles:10; twist angle:±180° No obvious addition attention, no fiber break and no cable damage. | |
| Impact | Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attention, no fiber break and no cable damage. | |
| Parameters of single mode fiber : | |||
| Items | Description | ||
| G.652.D | G.655 | ||
| Attenuation (dB/km) | 1310nm | ≤0.36 | ≤0.40 |
| (After cable) | 1550nm | ≤0.22 | ≤0.25 |
| Cable cut-off wavelength (mm) | ≤1260 | ≤1450 | |
| Zero-dispersion wavelength (mm) | 1300～1324 | ≤1520 | |
| Zero-dispersion slope([ps/(nm2·km)]) | ≤0.092 | --- | |
| Dispersion slope(1550nm) ([ps/(nm2·km)]) | --- | ≤0.0084 | |
| 1310nm Mode field diameter (μm) | 8.7~9.5 | --- | |
| 1550nm Mode field diameter (μm) | 9.8~10.8 | 9.1~10.1 | |
| Core/Clad concentricity error (μm) | ≤0.6 | ≤0.6 | |
| Cladding diameter ( μm) | 125±0.7 | 125±0.7 | |
| Cladding non-circularity (%) | ≤1.0 | ≤1.0 | |
| Primary Coating diameter ( μm) | 235～250 | 235～250 | |
| (Before be colored) | |||
| Proof test level (kpsi) | ≥100 | ≥100 | |
| Atttenuation with bending loss(dB) | @1550nm,25 mm radius, 100 turns | ≤0.05 | ≤0.05 |
| @1550nm,16 mm radius, 1 turn | ≤0.05 | ≤0.05 | |
| Attenuation and bandwidth of multi mode Optical fiber: | |||||||
| Fiber type | 850/1300nm Attenuation(20℃) (After cable) | Overfilled Modal Bandwidth | Effective Modal Bandwidth | Application support distance on (at 850nm) | |||
| Typical value | Max value | 850/1300nm | 850nm | 40GBASE-SR4 / 100GBASE-SR101 | 10GBASE-SR | 1000BASE-SR | |
| unit | dB/Km | dB/Km | MHz．Km | MHz．Km | m | m | m |
| 50/125 | 3.0/1.0 | 3.3/1.2 | ≥500/500 | --- | --- | --- | --- |
| 62.5/125 | 3.0/1.0 | 3.3/1.2 | ≥200/500 | --- | --- | --- | --- |
| OM2+ | 3.0/1.0 | 3.3/1.2 | ≥700/500 | ≥950 | --- | 140 | 170 |
| OM3 | 3.0/1.0 | 3.3/1.2 | ≥1500/500 | ≥2000 | 150 | 300 | 550 |
| OM4 | 3.0/1.0 | 3.3/1.2 | ≥3500/500 | ≥4700 | 750 | 1000 | 1100 |
