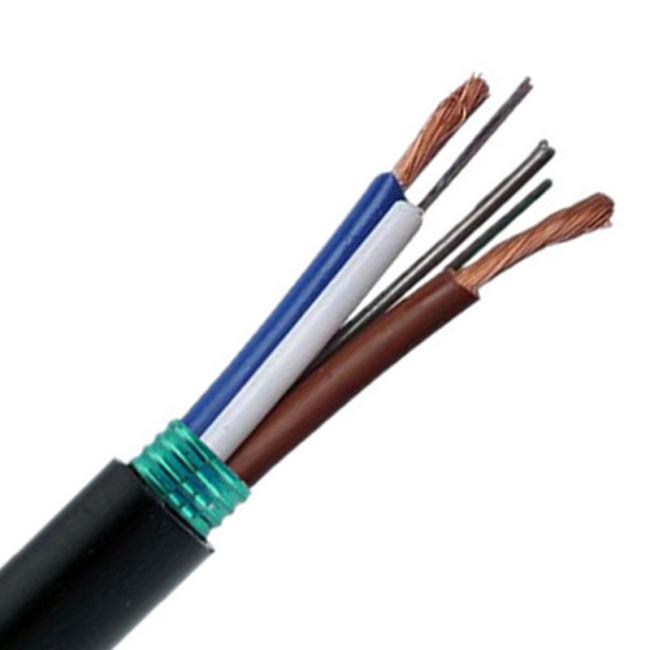

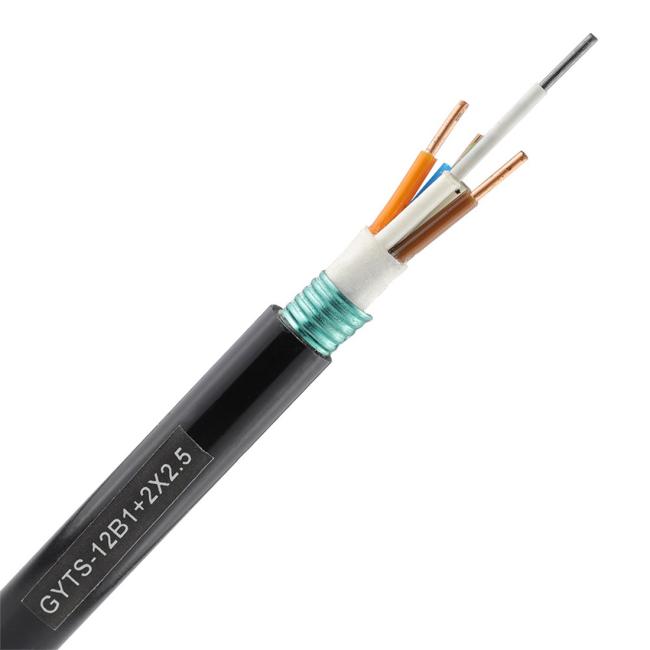

Hybrid Optical And Electrical Fiber Optic Cable With Corrugated Steel Tape Armour
Hybrid
Fiber
optic
cable
with
Power
wires,
that
means
in
a
single
cable
fiber
cable
and
power
wire
in
one
bundle.
It
not
only
supply
fiber
optic
data
transmission,
also
same
time
can
achive
the
goal
for
power
supply.
Hybrid
cable,
a
single
cable,
therefore
reducing
the
overall
cost
and
lead
time
for
installation.

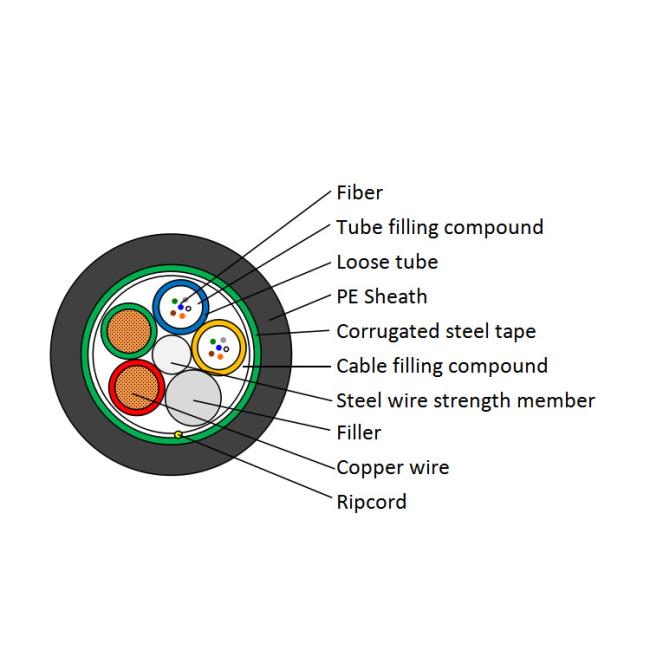

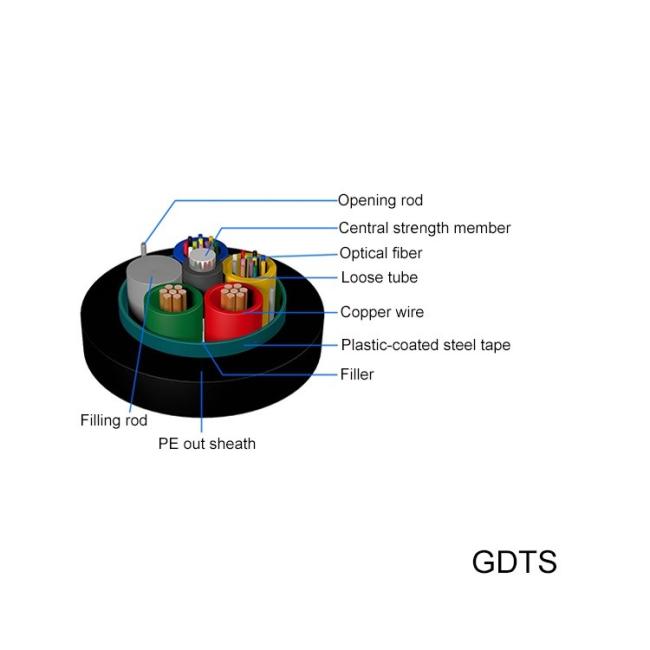

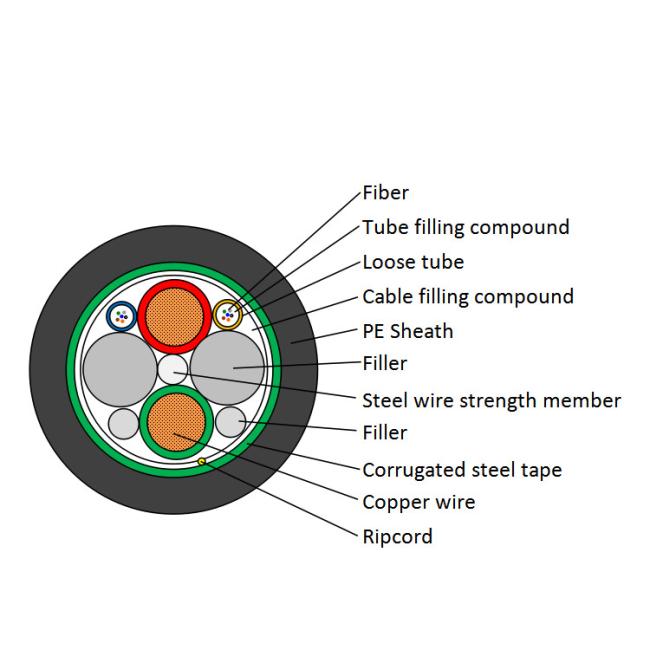

Cable
Structure:
The
optical
fibres
are
housed
in
loose
tubes
that
are
made
of
high-modulus
plastic
and
filled
with
tube
filling
compound.
In
the
center
of
cable
is
a
metallic
strength
member.
The
tubes
and
copper
wires
(of
required
specifications)
are
stranded
around
the
central
strength
member
to
form
a
cable
core.
The
core
is
filled
with
cable
filling
compound
and
armored
with
corrugated
steel
tape.
Then,
a
PE
sheath
is
extruded.
Fiber
core
number
and
fiber
type:
The
number
of
fiber
cores
can
be
selected
from
2
to
144.
There
are
the
following
optical
fiber
options:
1,
Single
mode
optical
fiber
G.652.D(or
G.652.B)
,G.655;
2,
Multi
mode
optical
fiber
50/125μm
or
62.5/125μm,OM1
OM2
OM3
OM4
optional.
You
can
choose
to
use
hybrid
fiber
according
to
the
actual
situation,
such
as
the
hybrid
use
of
G.652.D
and
G.655
fiber.
Application:
1:
Security
Camereas
2:
Optical
Network
Terminals
3:
Emergency
Phones
4:
Wi-Fi
Access
Points
5:
Base
stateion
| Technical Specification of fiber optic/copper hybrid fiber cable | |||||||
| Cable Type | Fiber counts | Cable Diameter (mm) | Weight (kg/km) | Tensile Strength(N) | Crush Resistance(N/100mm | ||
| Long -Term | Short -Term | Long -Term | Short -Term | ||||
| GDTS-2~24 2×1.5 | 2--24 | 11.2 | 132 | 600 | 1500 | 300 | 1000 |
| GDTS-2~24 2×2.5 | 2--24 | 12.3 | 164 | 600 | 1500 | 300 | 1000 |
| GDTS-2-24 2×4.0 | 2--24 | 13.4 | 212 | 600 | 1500 | 300 | 1000 |
| GDTS-2~24 2×5.0 | 2--24 | 14.6 | 258 | 600 | 1500 | 300 | 1000 |
| GDTS-2~24 2×6.0 | 2--24 | 15.4 | 287 | 600 | 1500 | 300 | 1000 |
| GDTS-2~24 2×8.0 | 2--24 | 16.5 | 350 | 600 | 1500 | 300 | 1000 |
Notes:
1.2*1.5/2*2.5/2*4.0/2*6.0
is
the
number
of
specification
of
the
conductor.
2.Different
conductor
specification
can
be
make
as
required.
3.Different
Fiber
specification
can
be
make
as
required.
| Cable Sheath Marking | ||||||||||
| XXXOFC 2021 GDTS XXCORE SM XXXXM | ||||||||||
| XXXOFC | manufacture's brand, (as client order) | |||||||||
| 2021 | manufacture year | |||||||||
| GDTS | cable type | |||||||||
| XXXXM | marks for meters | |||||||||
| Item | Parameter | |
| Fiber-G652D | Attenuation Coefficient | 1310nm dB/km ≤0.4 |
| 1550nm dB/km ≤0.3 | ||
| Outer jacket | Material | MDPE |
| Color | Black | |
| Min. bending radius | Static | 10 times cable diameter |
| Dynamic | 20 times cable diameter | |
| Repeating bending | Load:150N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage. | |
| Tensile performance | Short term | 1500N The addition attention≤0.1dB,fiber strain ≤0.15% |
| Crush | Short term | 1000N/100mm The addition attention≤0.1dB |
| Torsion | Load:150N; number of cycles:10; twist angle:±180° No obvious addition attention, no fiber break and no cable damage. | |
| Impact | Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attention, no fiber break and no cable damage. | |
| Parameters of single mode fiber : | |||
| Items | Description | ||
| G.652.D | G.655 | ||
| Attenuation (dB/km) | 1310nm | ≤0.36 | ≤0.40 |
| (After cable) | 1550nm | ≤0.22 | ≤0.25 |
| Cable cut-off wavelength (mm) | ≤1260 | ≤1450 | |
| Zero-dispersion wavelength (mm) | 1300～1324 | ≤1520 | |
| Zero-dispersion slope([ps/(nm2·km)]) | ≤0.092 | --- | |
| Dispersion slope(1550nm) ([ps/(nm2·km)]) | --- | ≤0.0084 | |
| 1310nm Mode field diameter (μm) | 8.7~9.5 | --- | |
| 1550nm Mode field diameter (μm) | 9.8~10.8 | 9.1~10.1 | |
| Core/Clad concentricity error (μm) | ≤0.6 | ≤0.6 | |
| Cladding diameter ( μm) | 125±0.7 | 125±0.7 | |
| Cladding non-circularity (%) | ≤1.0 | ≤1.0 | |
| Primary Coating diameter ( μm) | 235～250 | 235～250 | |
| (Before be colored) | |||
| Proof test level (kpsi) | ≥100 | ≥100 | |
| Atttenuation with bending loss(dB) | @1550nm,25 mm radius, 100 turns | ≤0.05 | ≤0.05 |
| @1550nm,16 mm radius, 1 turn | ≤0.05 | ≤0.05 | |
| Attenuation and bandwidth of multi mode Optical fiber: | |||||||
| Fiber type | 850/1300nm Attenuation(20℃) (After cable) | Overfilled Modal Bandwidth | Effective Modal Bandwidth | Application support distance on (at 850nm) | |||
| Typical value | Max value | 850/1300nm | 850nm | 40GBASE-SR4 / 100GBASE-SR101 | 10GBASE-SR | 1000BASE-SR | |
| unit | dB/Km | dB/Km | MHz．Km | MHz．Km | m | m | m |
| 50/125 | 3.0/1.0 | 3.3/1.2 | ≥500/500 | --- | --- | --- | --- |
| 62.5/125 | 3.0/1.0 | 3.3/1.2 | ≥200/500 | --- | --- | --- | --- |
| OM2+ | 3.0/1.0 | 3.3/1.2 | ≥700/500 | ≥950 | --- | 140 | 170 |
| OM3 | 3.0/1.0 | 3.3/1.2 | ≥1500/500 | ≥2000 | 150 | 300 | 550 |
| OM4 | 3.0/1.0 | 3.3/1.2 | ≥3500/500 | ≥4700 | 750 | 1000 | 1100 |
