| Price | Negotiable |
| MOQ | 3KM |
| Delivery Time | 2 Weeks after payment |
| Brand | SLR |
| Place of Origin | GUANGDONG CHINA |
| Certification | CE ROHS |
| Model Number | GYTA |
| Packaging Details | Wooden Drum |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 300000KM / Day |
| Fiber count | from 4 core to 288 core | Place of Origin | GUANGDONG CHINA |
| Packaging Details | Wooden Drum | Color | Black PE |
| Model Number | GYTA | Supply Ability | 300000KM / Day |
| Certification | CE ROHS | Strength member: | Metallic 、 FRP、 Steel Wire |
| Armored | Aluminium tape | Brand Name | SLR |
| Payment Terms | T/T, Western Union, MoneyGram | Price | Negotiable |
| Delivery Time | 2 Weeks after payment | Product name | Outdoor Fiber Optic Cable GYTA |
| Minimum Order Quantity | 3KM | Package | Wooden drum 2KM 3KM 5KM |
| Application | Duct, Aerial , overhead or buried | Loose tube | PBT loose tube |
Outdoor Fiber Optic Cable GYTA G652D Stranded Gel - Filled Loose Tube Aluminum Tape Armored Cable
GYTA
Armored
Loose
Tube
Single
Jacket/Single
Armor
fiber
optic
cables
are
designed
to
provide
high
fiber
counts
with
the
flexibility
and
versatility
required
for
today's
most
demanding
installations,
including
duct
and
underground
conduit.

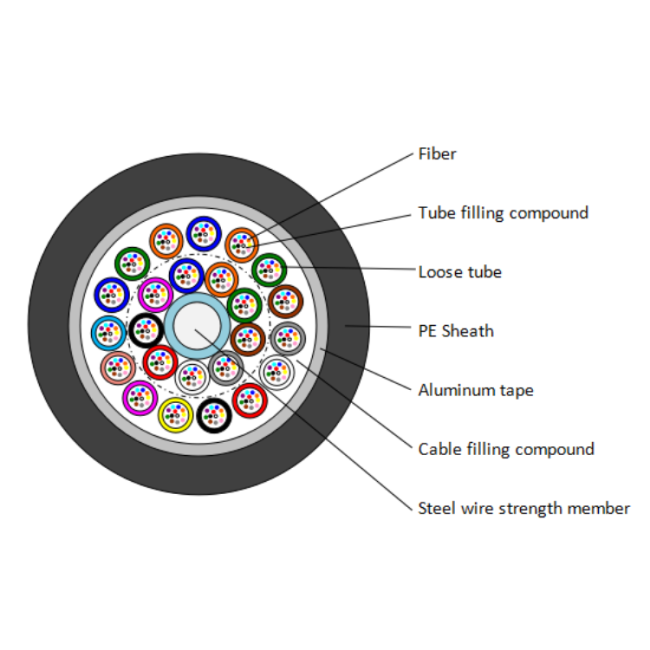

Product Construction:
1.
Fiber:2-288
fiber
Multi-loose
tube
gel-filled
2.
Central
Strength
Member:
Fiberglass
reinforced
Platic
(FRP)
or
steel
wire.
3.
Armor:Aluminum
Tape
Armor
4.
Outer
Jacket:Black
UV
Polyethylene(PE)
Features:
Up
to
288
fibers.
Loose
tube
gel-filled
construction
for
superior
fiber
protection.
Aluminum
tape
armor
to
protect
cable
from
mechanical
damage.
UV
and
waterproof
design.
Application:
Interbuilding
voice
or
data
communication
backbone.
Installed
in
duct,
underground
conduit
.
| Technical Parameters: | ||||||||||
| Cable Count |
Out
sheath Diameter |
Weight |
Minimum
allowable
Tensile
Strength (N) |
minimum
allowable
Crush
Load (N/100mm) |
Minimum
Bending
Radius (MM) |
Storage temperature |
||||
| (MM) | (KG) | short term | long term | short term | long term | short term | long term | (℃) | ||
| 24 | 10.5 | 105.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 36 | 10.5 | 105.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 42 | 10.5 | 105.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 48 | 12.0 | 150.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 60 | 12.0 | 150.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 72 | 12.0 | 150.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| Cable Sheath Marking | ||||||||||
| XXXOFC 2021 GYTA XXCORE SM XXXXM | ||||||||||
| XXXOFC | manufacture's brand, (as client order) | |||||||||
| 2021 | manufacture year | |||||||||
| GYTA | cable type | |||||||||
| XXXXM | marks for meters | |||||||||
| Item | Parameter | |
| Fiber-G652D | Attenuation Coefficient | 1310nm dB/km ≤0.4 |
| 1550nm dB/km ≤0.3 | ||
| Outer jacket | Material | MDPE |
| Color | Black | |
| Min. bending radius | Static | 10 times cable diameter |
| Dynamic | 20 times cable diameter | |
| Repeating bending | Load:150N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage. | |
| Tensile performance | Short term | 1500N The addition attention≤0.1dB,fiber strain ≤0.15% |
| Crush | Short term | 1000N/100mm The addition attention≤0.1dB |
| Torsion | Load:150N; number of cycles:10; twist angle:±180° No obvious addition attention, no fiber break and no cable damage. | |
| Impact | Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attention, no fiber break and no cable damage. | |
| Parameters of single mode fiber : | |||
| Items | Description | ||
| G.652.D | G.655 | ||
| Attenuation (dB/km) | 1310nm | ≤0.36 | ≤0.40 |
| (After cable) | 1550nm | ≤0.22 | ≤0.25 |
| Cable cut-off wavelength (mm) | ≤1260 | ≤1450 | |
| Zero-dispersion wavelength (mm) | 1300～1324 | ≤1520 | |
| Zero-dispersion slope([ps/(nm2·km)]) | ≤0.092 | --- | |
| Dispersion slope(1550nm) ([ps/(nm2·km)]) | --- | ≤0.0084 | |
| 1310nm Mode field diameter (μm) | 8.7~9.5 | --- | |
| 1550nm Mode field diameter (μm) | 9.8~10.8 | 9.1~10.1 | |
| Core/Clad concentricity error (μm) | ≤0.6 | ≤0.6 | |
| Cladding diameter ( μm) | 125±0.7 | 125±0.7 | |
| Cladding non-circularity (%) | ≤1.0 | ≤1.0 | |
| Primary Coating diameter ( μm) | 235～250 | 235～250 | |
| (Before be colored) | |||
| Proof test level (kpsi) | ≥100 | ≥100 | |
| Atttenuation with bending loss(dB) | @1550nm,25 mm radius, 100 turns | ≤0.05 | ≤0.05 |
| @1550nm,16 mm radius, 1 turn | ≤0.05 | ≤0.05 | |
| Attenuation and bandwidth of multi mode Optical fiber: | |||||||
| Fiber type | 850/1300nm Attenuation(20℃) (After cable) | Overfilled Modal Bandwidth | Effective Modal Bandwidth | Application support distance on (at 850nm) | |||
| Typical value | Max value | 850/1300nm | 850nm | 40GBASE-SR4 / 100GBASE-SR101 | 10GBASE-SR | 1000BASE-SR | |
| unit | dB/Km | dB/Km | MHz．Km | MHz．Km | m | m | m |
| 50/125 | 3.0/1.0 | 3.3/1.2 | ≥500/500 | --- | --- | --- | --- |
| 62.5/125 | 3.0/1.0 | 3.3/1.2 | ≥200/500 | --- | --- | --- | --- |
| OM2+ | 3.0/1.0 | 3.3/1.2 | ≥700/500 | ≥950 | --- | 140 | 170 |
| OM3 | 3.0/1.0 | 3.3/1.2 | ≥1500/500 | ≥2000 | 150 | 300 | 550 |
| OM4 | 3.0/1.0 | 3.3/1.2 | ≥3500/500 | ≥4700 | 750 | 1000 | 1100 |
