| Price | Negotiable |
| MOQ | 3KM |
| Delivery Time | 1-2week after payment( based on quantity) |
| Brand | SLR |
| Place of Origin | GUANGDONG,CHINA |
| Certification | CE,ROHS |
| Model Number | GYTA53-48B1.3 |
| Packaging Details | 3KM /POLYWOOD DRUM |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 120KM/DAY |
| Construction | Stranded Loose Tube | Place of Origin | GUANGDONG,CHINA |
| Cable TYPE | anti-rodent fiber optic cable outdoor | Packaging Details | 3KM /POLYWOOD DRUM |
| Model Number | GYTA53-48B1.3 | Fiber Type | Single Mode, G.652D, G.657A1, G.657A2, G655 |
| Supply Ability | 120KM/DAY | Certification | CE,ROHS |
| Standards | IEC 60794-1 YD/T901-2009 | Brand Name | SLR |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Inner/Outer Jacket | PE (Black) |
| Delivery Time | 1-2week after payment( based on quantity) | Minimum Order Quantity | 3KM |
| Cable Diameter | 12.5mm | Armor Layer | Corrugated Steel Tape and Aluminum Tape |
| Package | Polywood Drum ( with test report and sticker) | Application | Telecommunications， Direct burried |
Anti-Rodent Outdoor 48core G.652D Steel Tape Armored Loose Tube Fiber Optic Cable GYTA53
GYTA53 uses metal strength member as central strength member to provide excellent strain performance of the cable. Double-jacket structure provide the cable nice properties of moisture resistance and crush resistance. Double armor structure provides cable good property of rodent-resistance. High strength loose tube is hydrolysis resistant. A layer of water-blocking material is applied around the cable core to prevent water ingress. It can be used for duct and direct buried application, suitable for harsh environments.
1,Specification
| Cable Count (cores) | Tubes +Fillers | Out Sheath Diameter(mm) | Weight (kg/km) |
Min Tensile Strength ( Long/Short Term N) |
Min Crush Resistance (Long/Short Term N/100mm) |
Min Bending Radius (Static/Dynamic mm) |
| 2 ~ 36 | 6 | 13.7 | 190 | 1000/3000 | 1000/3000 | 10D/20D |
| 38 ~ 72 | 6 | 15.3 | 229 | 1000/3000 | 1000/3000 | 10D/20D |
| 74~96 | 8 | 15.9 | 244 | 1000/3000 | 1000/3000 | 10D/20D |
| 98 ~120 | 10 | 18 | 288 | 1000/3000 | 1000/3000 | 10D/20D |
| 122 ~144 | 12 | 19.2 | 325 | 1000/3000 | 1000/3000 | 10D/20D |
| 146~288 | 18 | 20.9 | 373 | 1000/3000 | 1000/3000 | 10D/20D |

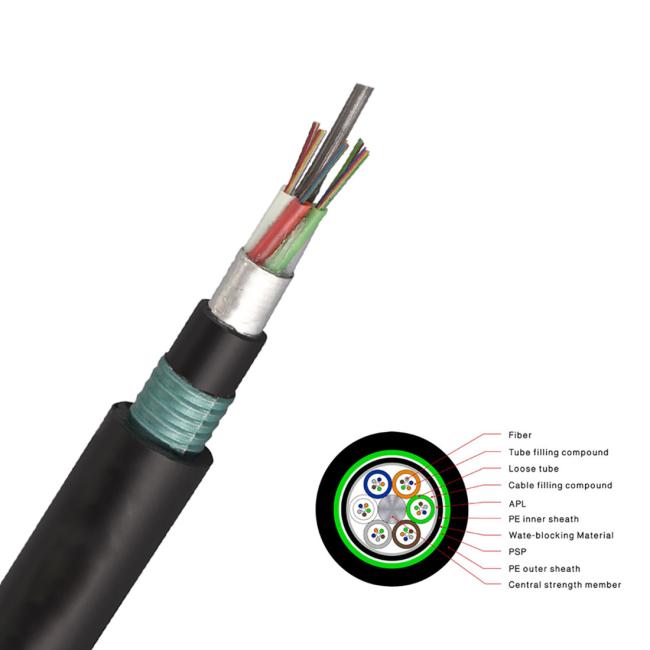

2, Structure of Double-amored outdoor fiber optic cable
3, Feature and Application
1,
Low
attenuation
and
dispersion
2,Good
mechanical
and
temperature
performance
3,Stranded
loose
tube
improves
the
tensile
strength
4,Metal
strength
member
provides
excellent
strain
performance
5,Double-jacket
structure
ensures
moisture
resistance
and
crush
resistance
6,
Steel
tape
and
aluminum
tape
enhances
water-blocking
&
moisture-proof
performance
7,Harsh
environment
Adopted
to
outdoor
distribution
CATV
&
computer
networks
system
8,Long
distance
and
local
area
network
communication
9,Used
for
duct
and
buried
laying
method
10,Specially
used
where
good
mechanical
performance
and
rodent
resistance
are
expected
Optical Cable Characteristics:
| G.652D | 50/125μm | 62.5/125μm | ||
| Attenuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | |
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
| @1310nm | ≤0.36 dB/km | |||
| @1550nm | ≤0.22 dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | |
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc | ≤1260nm | |||
