Price	USD
MOQ	1pc
Delivery Time	25days
Brand	ANS
Place of Origin	China
Certification	3C
Model Number	ANS-GB-200A
Packaging Details	standard export package
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	500pcs a week

Product Details

product name	GB/T EV Charging Cables	amps	200A
Place of Origin	China	color	green，blue ，orange ，grey
Packaging Details	standard export package	cables size	70mm2
cable length	5M cable length	Model Number	ANS-GB-200A
Supply Ability	500pcs a week	Certification	3C
voltage	750V	Brand Name	ANS
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram	Price	USD
Delivery Time	25days	Minimum Order Quantity	1pc
logo	support customzation

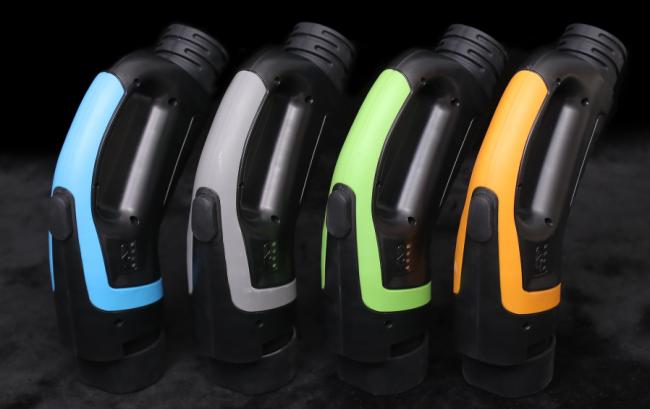

Chinese Standard 200A 750V DC Fast Charging plug EV Connectors GB/T EV Charging Cables

Features

Conform to the provisions and requirements of <Connection set for conductive charging of electric vehicles> GB/T20234.2-2015
Have one or two PTC ( PT1000 ) thermistor ( can match with NTC or Temperature control switch )
The head of pins using safety insulation design to prevent direct contact with the hand
Excellent protection performance, protection grade achieved IP55 ( working condition )
Adopted double color coating technology, personalized custom a variety of colors ( Orange, blue, green,grey )
Reliable material,flame-etardant, pressure proof .wear-resisting,impact resistance ,high oil proof

Mechanical Life

rated current	200A
rated voltage	750V
Insulation resistance	>2000M Ω
Pins temperature rise	< 50K
Withstand voltage	4500V
Contact impedance	0.5m Ω Max
Shell material	thermoplastics,lame retardant grade UL94
Pin	copper alloy,silver-plate and use thermoplastic at the top
Envirommental perommance	-30℃- +50℃
cables size	270mm2+125+24+20.75+8*0.75mm2

Certification: IATF 16949,3C

750V 200A GBT EV Charger UL94 grade with PT1000 thermistor
