Chinese Standard 80A 750V GBT EV Charger DC Fast Charging Plug
China Chinese Standard 80A 750V GBT EV Charger DC Fast Charging Plug for sale
China Chinese Standard 80A 750V GBT EV Charger DC Fast Charging Plug for sale
  1. China Chinese Standard 80A 750V GBT EV Charger DC Fast Charging Plug for sale
  2. China Chinese Standard 80A 750V GBT EV Charger DC Fast Charging Plug for sale
  3. China Chinese Standard 80A 750V GBT EV Charger DC Fast Charging Plug for sale

Chinese Standard 80A 750V GBT EV Charger DC Fast Charging Plug

Price USD
MOQ 1pc
Delivery Time 25days
Brand ANS
Place of Origin China
Certification 3C
Model Number ANS-GB-80A
Packaging Details standard export package
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pcs a week

Product Details

Product Specification

product name GB/T EV Charging Cables amps 80A
Place of Origin China color green，blue ，orange ，grey
Packaging Details standard export package cables size 20mm2
cable length 5M cable length Model Number ANS-GB-80A
Supply Ability 500pcs a week Certification 3C
voltage 750V Brand Name ANS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram Price USD
Delivery Time 25days Minimum Order Quantity 1pc
logo support customzation

Product Description

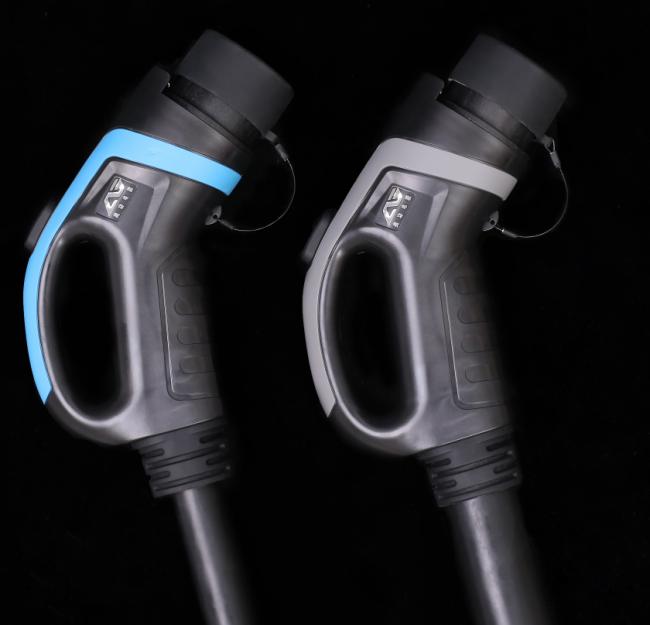

Chinese Standard DC Fast Charging plug 80A 750V GB/T EV Charging Cables



Features

  • Conform to the provisions and requirements of <Connection set for conductive charging of electric vehicles> GB/T20234.2-2015
  • Have one or two PTC ( PT1000 ) thermistor ( can match with NTC or Temperature control switch )
  • The head of pins using safety insulation design to prevent direct contact with the hand
  • Excellent protection performance, protection grade achieved IP55 ( working condition )
  • Adopted double color coating technology, personalized custom a variety of colors ( Orange, blue, green,grey )
  • Reliable material,flame-etardant, pressure proof .wear-resisting,impact resistance ,high oil proof
Rated Current: 80A 125A 150A 200A
Operating Voltage DC 1000V
Insulation Resisitance >1000MΩ(DC500V)
Withstand Voltage 3200V
Contact Pin Copper alloy, Silver plating
Working temperature -30°C ~+50°C
Flame Retardant Grade UL94 V-0
Contact Resistance 0.5mΩ Max
Waterproof IP65
Certificate CE,3C Approved



Materials
Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber

TPE insulation,TPE Sheath EV Charging Cable




Certification: IATF 16949,3C
