Price	USD
MOQ	1pc
Delivery Time	25days
Brand	ANS
Place of Origin	China
Certification	3C
Model Number	ANS-GB-16A
Packaging Details	standard export package
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	500pcs a week

Product Details

product name	GB/T EV Charging Cables	amps	32A
Place of Origin	China	color	green，blue ，orange ，grey
Packaging Details	standard export package	cables size	2.5mm2
cable length	5M cable length or based on requirement	Model Number	ANS-GB-16A
Supply Ability	500pcs a week	Certification	3C
voltage	250V	Brand Name	ANS
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram	Price	USD
Delivery Time	25days	Minimum Order Quantity	1pc
logo	support customzation

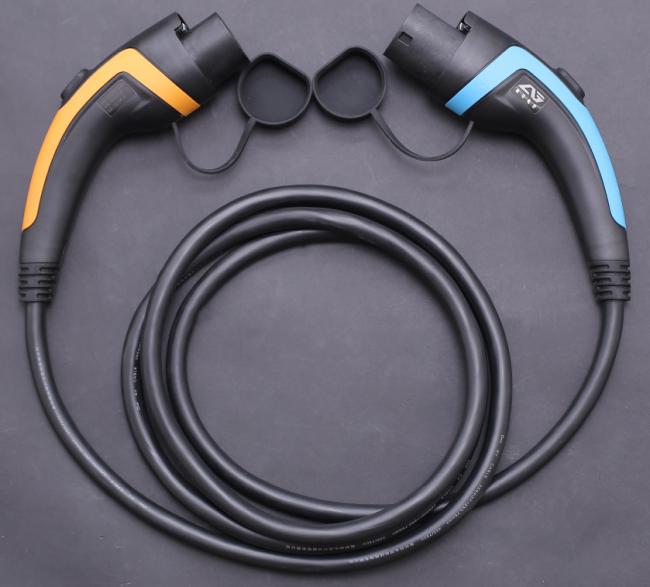

Chinese Standard 16A 250V 1Phase AC Charging Plug EV Connector GB/T EV Charging Cables

Features

Conform to the provisions and requirements of <Connection set for conductive charging of electric vehicles> GB/T20234.2-2015
The head of pins using safety insulation design to prevent direct contact with the hand
Excellent protection performance, protection grade achieved IP55 ( working condition )
Adopted double color coating technology, personalized custom a variety of colors ( Orange, blue, green,grey )
Reliable material,flame-etardant, pressure proof .wear-resisting,impact resistance ,high oil proof

rated current	16A
rated voltage	250V
Insulation resistance	>1000M Ω
Pins temperature rise	< 50K
Withstand voltage	2500V
Contact impedance	0.5m Ω Max
Shell material	thermoplastics,lame retardant grade UL94
Pin	copper alloy,silver-plate and use thermoplastic at the top
Envirommental perommance	-30℃- +50℃
cables size	32.5+20.5mm2

Certification: IATF 16949,3C

16A 250V 1Phase GBT Charging Cable Electric Vehicle Connectors
