| Price | Negotiated The Price |
| MOQ | 100 |
| Delivery Time | 10-12 working days |
| Brand | SECORE |
| Place of Origin | Shenzhen |
| Certification | RoHS |
| Model Number | BL2431-27GB |
| Packaging Details | 50pcs per carton or as request |
| Payment Terms | T/T, D/A |
| Supply Ability | 100000pcs per month |
| Place of Origin | Shenzhen | Typical application | robot arm, toilet cover |
| Packaging Details | 50pcs per carton or as request | shaft diameter | 3.5mm or customize |
| Motor dimension | 24*30.8（mm） | Model Number | BL2431-27GB |
| Supply Ability | 100000pcs per month | Certification | RoHS |
| Free load speed | 3rpm~200rpm | Brand Name | SECORE |
| Payment Terms | T/T, D/A | Speed Rated | 2.6rpm~172rpm |
| Rated current | 0.47A | Price | Negotiated The Price |
| Delivery Time | 10-12 working days | gear type | 30mm spur gear motor |
| Minimum Order Quantity | 100 | Rated Torque | 1.46~60kg.cm |

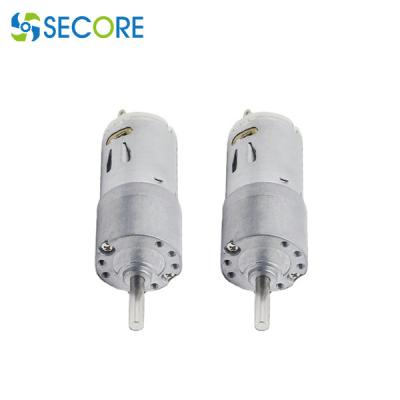

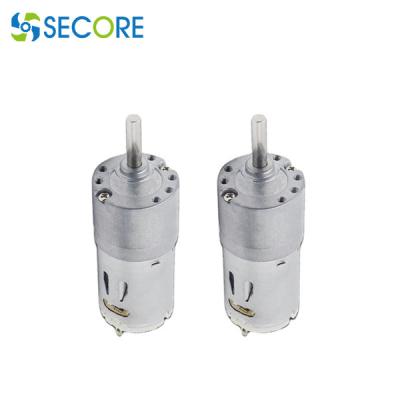

24V Toilet Cover Gear Motor Factory Supply 30mm High Torque 15KG 14rpm Spur Gear Motor For Robot Arm
Secore spur gear motor 24v 2431-27GB
| MODEL | VOLTAGE | NO LOAD | WITH LOAD | STALL | |||||
| SPEED RPM |
CURRENT max A |
SPEED RPM |
TORQUE Kg.cm |
CURRENT max A |
Output W |
TORQUE min Kg.cm |
CURRENT max A |
||
| DC2431-27GB | 12 | 3000 | 0.07 | 1950 | 0.05 | 0.26 | 1.03 | 0.128 | 0.53 |
| DC2431-27GB | 12 | 4500 | 0.09 | 8400 | 0.05 | 0.46 | 1.84 | 0.202 | 1.3 |
| DC2431-27GB | 12 | 9000 | 0.2 | 6400 | 0.05 | 0.67 | 4.1 | 0.34 | 2.9 |
| DC2431-27GB | 24 | 3500 | 0.08 | 2750 | 0.074 | 0.25 | 2.13 | 0.4 | 0.45 |
| DC2431-27GB | 24 | 7400 | 0.12 | 6400 | 0.061 | 0.37 | 4.02 | 0.4 | 1.582 |
| Reduction stage | 4 | 5 | 6 | 7 | 8 | |||||
| Reduction ratio | 37K | 88K, 114K, 131K | 206K, 265K, 305K, 341K, 392K, 450K | 619K, 711K, 796K, 914K, 1049K, 1548K | 1857K, 2132K, 2387K, 2447K | |||||
| gearbox length L | 22.2 | 24.8 | 27.4 | 30 | 32.6 | |||||
| Gearbox efficiency | 65% | 59% | 53% | 48% | 43% | |||||

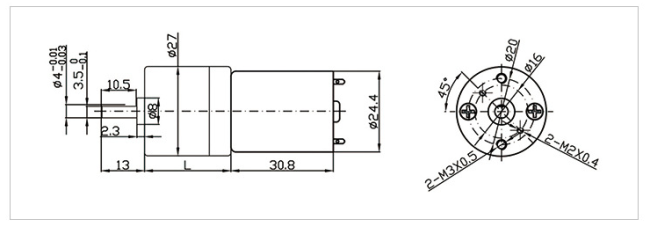

Dimension of the spur gear motor:
