| Price | Negotiated The Price |
| MOQ | 100 |
| Delivery Time | 7-12 working days |
| Brand | SECORE |
| Place of Origin | Guangdong, China |
| Certification | CE ROHS |
| Model Number | SC-40 |
| Packaging Details | 500pcs per carton or as request |
| Payment Terms | T/T, D/A |
| Supply Ability | 100000pcs per month |
| Place of Origin | Guangdong, China | Commutation | Carbon Brush |
| Speed RPM | 5-15rpm or customized | Packaging Details | 500pcs per carton or as request |
| Model number | SC-40 | Motor dimension | D37.3*L50mm |
| Model Number | SC-40 | Supply Ability | 100000pcs per month |
| Certification | CE ROHS | Operating voltage | 3.0V -24V |
| Shaft shape | Shaft knurled or D shape | Brand Name | SECORE |
| Payment Terms | T/T, D/A | gearbox diameter | 56.8mm |
| Price | Negotiated The Price | Delivery Time | 7-12 working days |
| Minimum Order Quantity | 100 | Application | stage lamp, lawn lamp, dc fan |

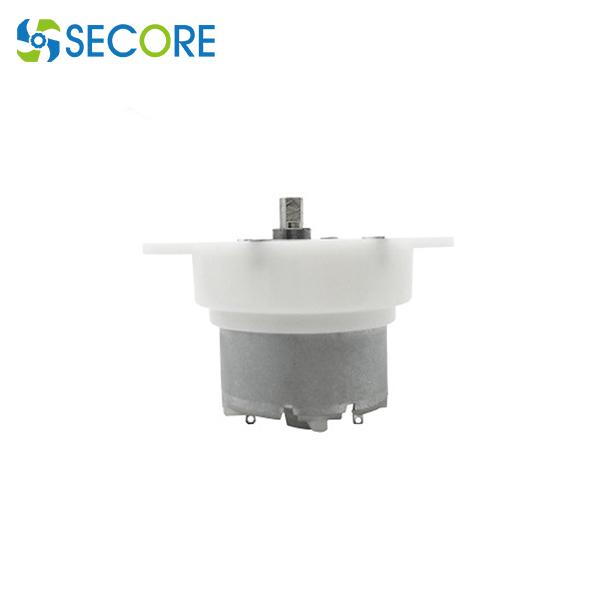

3V 24V Low Speed DC Gear Motor, 3WPlastic Geared motor For Stage Lamp, Lawn Lamp
| Model | Nominal Voltage | NO LOAD | STARTING | NOISE | NOMINAL VOLTAGE | Temperature | Eddy Direction | ||
| SPEED | CURRENT | VOLTAGE | CURRENT | ||||||
| RPM | A | V | A | dB | N.m | K | |||
| SC30 | DC4.5V | 6 | 0.051 | 3 | 0.1 | 4.1 | 0.049 | 40 | CW/CCW |
| SC40 | DC12V | 5-15 | 0.052 | 6 | 0.4 | 4.1 | 0.245 | 40 | CW/CCW |
| SC30 | DC6.0V | 5-6 | 0.022 | 3 | 0.05 | 4.1 | 0.147 | 40 | CW/CCW |
Mounting dimensions:
