| Price | Negotiated The Price |
| MOQ | 10 |
| Delivery Time | 7-10 working days |
| Brand | SECORE |
| Place of Origin | Guangdong |
| Certification | CE ROHS |
| Model Number | SC500C |
| Packaging Details | 50pcs per carton or as request |
| Payment Terms | T/T, D/A |
| Supply Ability | 100000pcs per month |
| Speed | 50RPM | Construction | pernanent magnet |
| Place of Origin | Guangdong | Commutation | Brush |
| Typical application | stage lighting, stage lamp, revolving light | Packaging Details | 50pcs per carton or as request |
| Model Number | SC500C | Supply Ability | 100000pcs per month |
| Certification | CE ROHS | Rated Voltage | 3-24V |
| Brand Name | SECORE | Payment Terms | T/T, D/A |
| Price | Negotiated The Price | Delivery Time | 7-10 working days |
| Product Type | lamp gear motor | Minimum Order Quantity | 10 |
| Rated Power | 0.01 ~0.12 watt | Rated Torque | 0.39-1.57mN.m |
Mini 24V Gear Motor, Slow Speed Revolving Lamp Reduction Motor With Gearbox
Specifications :
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| Rated voltage | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| r/min | A | r/min | A | mN.m | g.cm | W | N.m | kg.cm | A | |||
| SC-500C | 3.0V | 50 | 0.11 | 40 | 0.31 | 0.098 | 1.1 | 0.42 | 0.393 | 3.93 | 1.6 | |
| 6.0V | 60 | 0.118 | 50 | 0.25 | 0.098 | 1.1 | 0.62 | 0.491 | 4.91 | 2.1 | ||
| 12.0V | 50 | 0.11 | 44 | 0.21 | 0.197 | 2.1 | 1.21 | 1.276 | 12.76 | 3.1 | ||
| 24.0V | 60 | 0.051 | 54 | 0.11 | 0.197 | 2.1 | 1.21 | 1.568 | 15.68 | 3.1 | ||

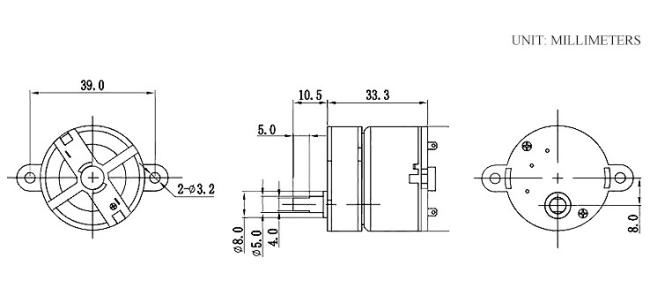

Dimensions:
TO BE TAILORED
* Expected voltage types
* Configurable shaft length and second shaft end
* Extended temperature range
* Modified shaft dimensions and pinion configurations such as flats, gears, pulleys and eccenter
* Customization for speed and or oad applications
* Customization for motors with increased electrical or mechanical tolerance requirement
If there is no suitable specifications, it can be customized according to actual needs.
