| Price | Negotiated The Price |
| MOQ | 100 |
| Delivery Time | 10-12 working days |
| Brand | SECORE |
| Place of Origin | Shenzhen |
| Certification | CE ROHS |
| Model Number | BLS-57100-GB |
| Packaging Details | 20pcs per carton or as request |
| Payment Terms | T/T, D/A |
| Supply Ability | 100000pcs per month |
| Item name | 57mm high torque gear motor, planetary brushless geared motor | Place of Origin | Shenzhen |
| Packaging Details | 20pcs per carton or as request | Rated speed | 9rpm |
| Model Number | BLS-57100-GB | Motor size | 57*100mm ( diameter * length) |
| Supply Ability | 100000pcs per month | Certification | CE ROHS |
| Brand Name | SECORE | Payment Terms | T/T, D/A |
| Price | Negotiated The Price | Delivery Time | 10-12 working days |
| Rated voltage | 12V/24V | Minimum Order Quantity | 100 |
| Gear head size | 58.5mm * optional length | Rated Torque | 90KG.CM |
| No load Speed | 11rpm | Gear ratio | 326 |
90kg High Torque Brushless Gear Motor With Planet Gearbox Factory Direct Supply
Key technical data for motor:
| Model # | RATED Voltage | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||
| SPEED | CURRENT | SPEED | TORQUE | CURRENT | Out. Power | TORQUE | CURRENT | ||
| VDC | ±10% r/min | mA | ±10% r/min | g.cm | mA | W | g.cm | A | |
| BLS-56100-12 | 12 | 3500 | 600 | 3050 | 400 | 1900 | 12.5 | 3200 | 4.5 |
| BLS-56100-24 | 24 | 3500 | 300 | 3050 | 400 | 1000 | 12.5 | 3200 | 4.5 |
Key technical data for motor with gearbox:
| gear ratio | 4 | 13 | 18 | 47 | 55 | 77 | 168 | 198 | 326 | |
| no-load Speed ( rpm ) | 12V | 870 | 290 | 190 | 72 | 62 | 45 | 20 | 18 | 11 |
| rated Torque (kg.cm ) | 1.4 | 4.2 | 5.8 | 14 | 16 | 23 | 47 | 55 | 90 | |
| rated Speed ( rpm ) | 760 | 230 | 170 | 65 | 55 | 40 | 18 | 15 | 9 | |
| no-load Speed ( rpm ) | 24V | 870 | 260 | 190 | 72 | 62 | 45 | 20 | 18 | 11 |
| rated Torque (kg.cm ) | 1.4 | 4.2 | 5.8 | 14 | 16 | 23 | 47 | 55 | 90 | |
| rated Speed ( rpm ) | 760 | 230 | 170 | 65 | 55 | 40 | 18 | 15 | 9 | |

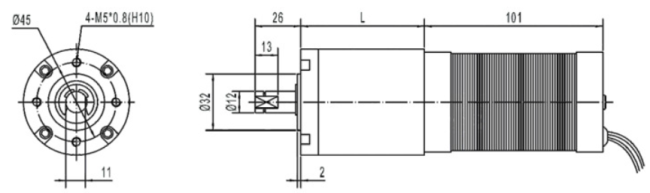

Gear motor dimension:
