| Price | Negotiated The Price |
| MOQ | 100 |
| Delivery Time | 15-18 working days |
| Brand | SECORE |
| Place of Origin | Shenzhen |
| Certification | ISO9001 |
| Model Number | SC775 |
| Packaging Details | 100pcs per carton or as request |
| Payment Terms | T/T, D/A |
| Supply Ability | 100000pcs per month |
| Place of Origin | Shenzhen | Typical application | massager equipment, massage device |

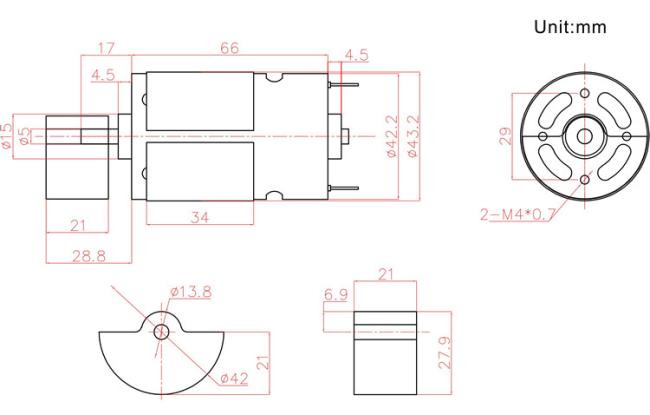

| motor dimension | 43*66mm | Packaging Details | 100pcs per carton or as request |
| motor type | Brush dc motor | Model Number | SC775 |
| Supply Ability | 100000pcs per month | Certification | ISO9001 |
| Brand Name | SECORE | Payment Terms | T/T, D/A |
| Price | Negotiated The Price | Delivery Time | 15-18 working days |
| Rated Speed | 9790rpm or other options | Rated voltage | 12V |
| Minimum Order Quantity | 100 | output power | 66W |
| keyword | high speed 775 vibration motor | Rated Torque | 64.7mN.m or as request |

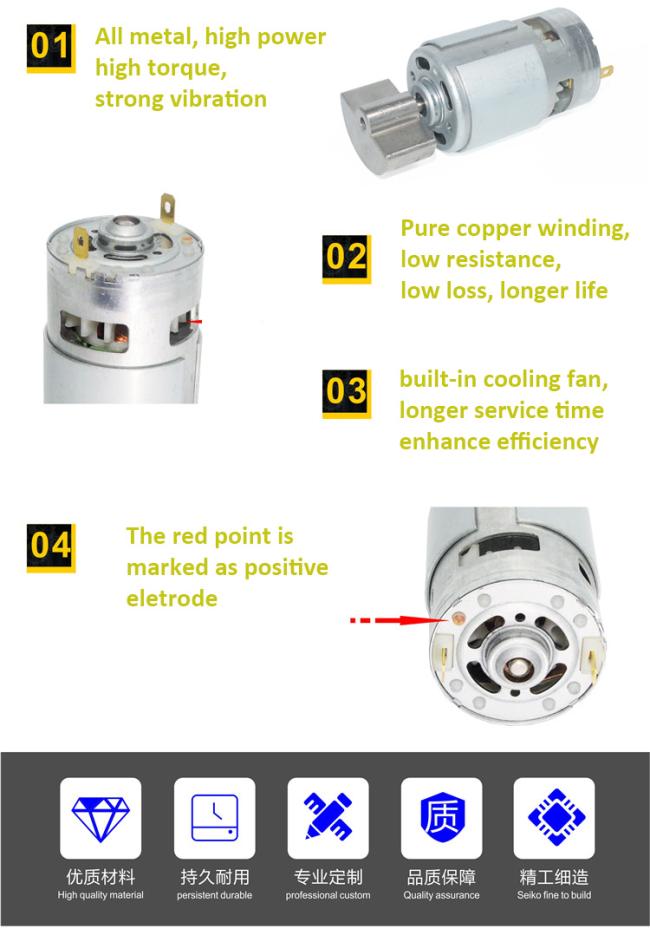

Strong Shaking 10000rpm Sector-Shaped Vibration Motor 775 12v24v With Built-in Impeller For Massager Equipment
Main feature case:
| Model number | Operating range | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||
| RATED | SPEED | CURRENT | SPEED | CURRENT | TORQUE | Output | TORQUE | CURRENT | ||
| VDC | VDC | ±10% r/min | A | ±10% r/min | A | mN.m | W | mN.m | A | |
| SC-775-3385 | 12.0-30.0 | 24 | 4700 | 0.163 | 4048 | 1.16 | 43.53 | 18.43 | 362.7 | 8.5 |
| SC-775-6517 | 9.0-18.0 | 12 | 11000 | 0.95 | 9790 | 7.44 | 64.7 | 66.27 | 588.2 | 60 |
| SC-775-23155 | 12.0-30.0 | 24 | 2500 | 0.09 | 2100 | 0.48 | 36.07 | 7.92 | 225.4 | 2.5 |
