| Price | Negotiated The Price |
| MOQ | 100 |
| Delivery Time | 7-10 working days |
| Brand | SECORE |
| Place of Origin | Dongguan |
| Certification | CE ROHS |
| Model Number | SC45G-775-24 |
| Packaging Details | 100pcs per carton or as request |
| Payment Terms | T/T, D/A |
| Supply Ability | 100000pcs per month |
| product name | 45mm planetary gear motor, 10N.m gear motor | Place of Origin | Dongguan |
| Peak torque | 30N.m | Packaging Details | 100pcs per carton or as request |
| Model Number | SC45G-775-24 | Supply Ability | 100000pcs per month |
| Certification | CE ROHS | Rated Voltage | 24V |
| Brand Name | SECORE | Payment Terms | T/T, D/A |
| Rated torque | 100KG.cm or as request | motor dia * length | 44.5*67mm |
| Price | Negotiated The Price | Delivery Time | 7-10 working days |
| Rated Speed | 18rpm | gearhead size | 45*mm, with optional length |
| Minimum Order Quantity | 100 | Application | automatic lifting door, robot, dental devices, fishing reel |

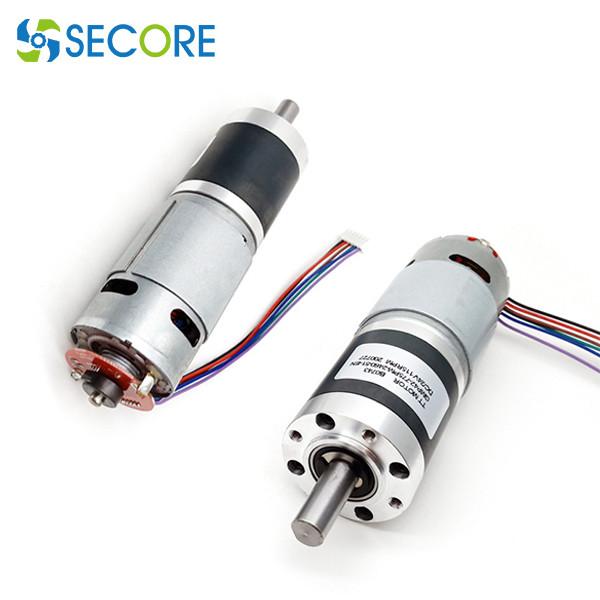

24V Low Speed 100kg Torque Planetary Geared Motor With Encoder For Electric Fishing Reels
Technical
parameter:
| Product name: DC gear motor | Model number: SC42-775GM |

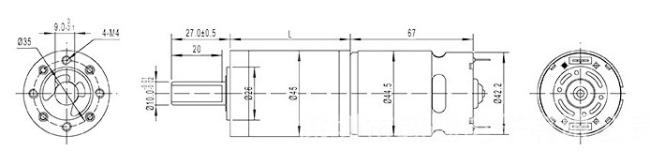

| Diameter: 45mm | Motor length: 67mm + planetary gearbox |
| Rated power: customizable | Rated voltage: 2.4V 3V 4.5V 5V 6V 7.2V 9V 12V |
| Rated speed: customizable | Application: Electronic lock, smart robot |
| Motor Model number | RATED Voltage | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||
| SPEED | CURRENT | SPEED | CURRENT | TORQUE | Output | TORQUE | CURRENT | ||
| VDC | ±10% r/min | A | ±10% r/min | A | g.cm | W | g.cm | A | |
| SC-775-24 | 24 | 6000 | 0.3 | 4500 | 2.3 | 900 | 40 | 3600 | 7.2 |
| SC-775-6 | 6 | 4800 | 1.2 | 3500 | 8.7 | 900 | 33 | 3600 | 32 |
| SC-775-12 | 12 | 4600 | 0.6 | 3460 | 4.4 | 900 | 32 | 3600 | 16 |
| gear ratio | 4 | 19 | 51 | 100 | 139 | 189 | 264 | 369 | 516 | 720 |
| gear reducer length | 51.5 | 51.5 | 64.5 | 64.5 | 64.5 | 74.5 | 74.5 | 74.5 | 74.5 | 74.5 |
| No load speed (rpm) | 1400 | 295 | 110 | 58 | 42 | 32 | 23 | 16 | 11.5 | 8.3 |
| rated output speed (rpm ) | 1125 | 235 | 88 | 45 | 32 | 24 | 18 | 14 | 10.5 | 8 |
| rated output torque (kg.cm) | 2.8 | 13 | 26 | 51 | 71 | 89 | 100 | 100 | 100 | 100 |
| Peak torque (kg.cm) | 11 | 54 | 110 | 216 | 300 | 300 | 300 | 300 | 300 | 300 |
Gear motor is a combination of motor and gear box. Adding a gear head to the motor reduces the speed while increasing the torque output. The most important parameters of a gear motor are speed (rpm), torque (lb-in) and efficiency (%). In order to select the most suitable gear motor for your application, you must first calculate the load, speed and torque requirements of your application. Secore provides a variety of planetary gear motors and Wom gear motors to meet the needs of a variety of applications. Most of our DC motors can be matched with one of our unique gearboxes to provide you with efficient gear motor solutions.
