| Price | Negotiated The Price |
| MOQ | 100 |
| Delivery Time | 7-10 working days |
| Brand | SECORE |
| Place of Origin | Dongguan |
| Certification | CE ROHS |
| Model Number | SC45G-775 |
| Packaging Details | 100pcs per carton or as request |
| Payment Terms | T/T, D/A |
| Supply Ability | 100000pcs per month |
| motor size | 44.5*67mm | product name | 45mm brush gear motor, 50KG planetary geared motor |
| Usage | automatic lifting door, robot, dental devices | Place of Origin | Dongguan |
| Peak torque | 21N.m | Packaging Details | 100pcs per carton or as request |
| Model Number | SC45G-775 | Supply Ability | 100000pcs per month |
| Certification | CE ROHS | Rated Voltage | 12V |
| Brand Name | SECORE | Payment Terms | T/T, D/A |
| Rated torque | 5N.m or as request | gearbox diameter | 45*mm, with optional length |
| Price | Negotiated The Price | Delivery Time | 7-10 working days |
| Rated Speed | 35rpm | Minimum Order Quantity | 100 |

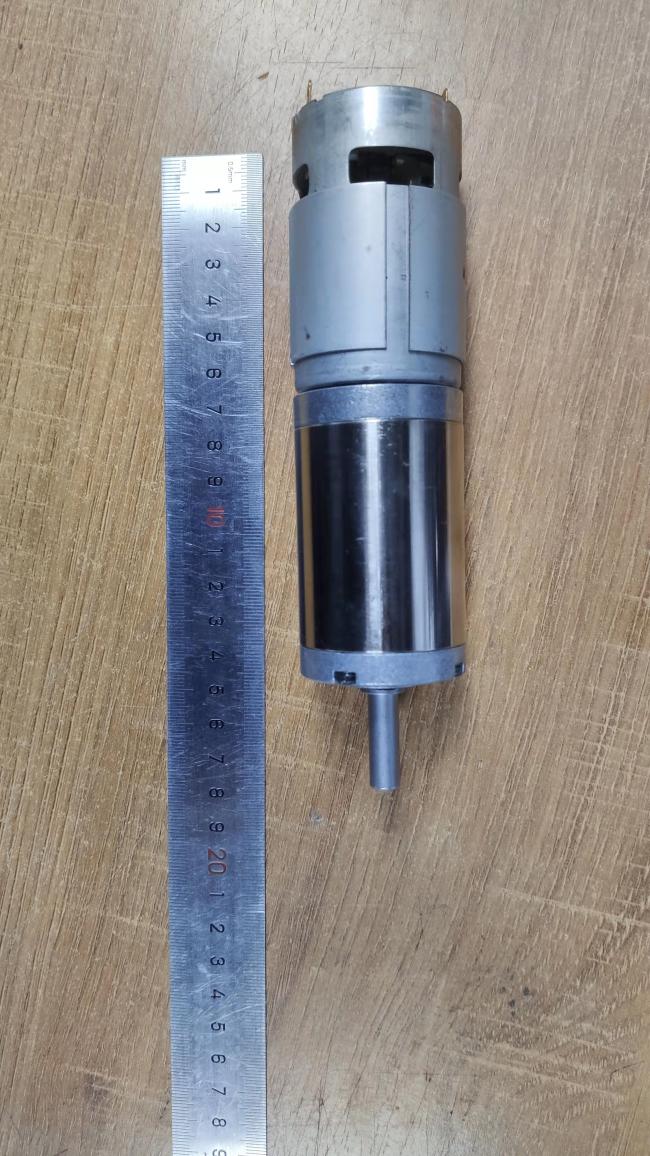

45mm 50kg Torque Planetary Gear Brush Motor 30W For Automatic Lifting Door
Technical
parameter:
| Motor Model number | RATED Voltage | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||
| SPEED | CURRENT | SPEED | CURRENT | TORQUE | Output | TORQUE | CURRENT | ||
| VDC | ±10% r/min | A | ±10% r/min | A | g.cm | W | g.cm | A | |
| SC-775-24 | 24 | 6000 | 0.3 | 4500 | 2.3 | 900 | 40 | 3600 | 7.2 |
| SC-775-6 | 6 | 4800 | 1.2 | 3500 | 8.7 | 900 | 33 | 3600 | 32 |
| SC-775-12 | 12 | 4600 | 0.6 | 3460 | 4.4 | 900 | 32 | 3600 | 16 |
| gear ratio | 4 | 19 | 51 | 100 | 139 | 189 | 264 | 369 | 516 | 720 |
| gear reducer length | 51.5 | 51.5 | 64.5 | 64.5 | 64.5 | 74.5 | 74.5 | 74.5 | 74.5 | 74.5 |
| No load speed (rpm) | 1100 | 220 | 86 | 44 | 32 | 24 | 17 | 12 | 8.7 | 6.3 |
| rated output speed (rpm ) | 870 | 185 | 69 | 35 | 25 | 19 | 14 | 10.5 | 8.2 | 5.7 |
| rated output torque (kg.cm) | 2.8 | 13 | 26 | 51 | 71 | 89 | 100 | 100 | 100 | 100 |
| Peak torque (kg.cm) | 11 | 54 | 110 | 216 | 300 | 300 | 300 | 300 | 300 | 300 |
Que:
To
customize
the
motor,
what
information
should
be
provided?
Ans:
You
need
to
offer
the
basic
specification
of
the
motor
like
expected
sizes,
rated
voltage,
speed,
torque.
Que:
What’s
your
main
motors?
Ans:
Various
diameter
options
for
DC
Micro
Brush
Motor,
brushless
and
Gear
Motor.
Tiny
Dc
Motor,
Electric
Motor,
Gear
Motor,
Mini
Dc
Motor,
Brush
Dc
Motor,
DC
Brushless
Motor,
Worm
gear
motor,
Spur
Gear
Motor,
Micro
Motor,
planetary
motor,
Vibration
Motor,
coin
motor
Etc.
o Brushed Motor
o Brushless Motor (BLDC motor)
Coreless brush & Coreless Brushless
o Planetary Gear motors
o Spur Gear motors
o Worm Gear Motor
Que:
What’s
the
main
application
of
the
micro
dc
motor?
Ans:
Our
DC
motors
are
widely
applied
in
precision
instrument,financial
equipment,
medical
devices,
audio
and
visual
equipment,
industrial
automation
and
secure,
banking
and
vending
system,
home
and
office
automation,
automatic
door
system,
medical
device,
personal
care,
power
tool,
smart
household
appliances,
kitchen
appliances,
auto
parts,
RC
Drone,
industry
apparatus,
consumer
electronics,
kids
toys,electric
water
valves,
robots,
Fascia
Massague
Gun
etc.
