| Price | Negotiated The Price |
| MOQ | 100 |
| Delivery Time | 15-18 working days |
| Brand | SECORE |
| Place of Origin | Shenzhen |
| Certification | ISO9001 |
| Model Number | SC25-370-1220 |
| Packaging Details | 100pcs per carton or as request |
| Payment Terms | T/T, D/A |
| Supply Ability | 100000pcs per month |
| Place of Origin | Shenzhen | Typical application | smart home, intelligent robot |
| motor dimension | 24.4*31mm | Packaging Details | 100pcs per carton or as request |
| Model Number | SC25-370-1220 | Supply Ability | 100000pcs per month |
| Certification | ISO9001 | Brand Name | SECORE |
| Payment Terms | T/T, D/A | reducer sizes | 24.4mm diameter * optional length |
| Price | Negotiated The Price | Delivery Time | 15-18 working days |
| Rated Speed | 99rpm or other options | Rated voltage | 12V |
| Minimum Order Quantity | 100 | keyword | 1N.m dual gear dc motor |
| Rated Torque | 10kg.cm or as request | gear motor weight | 97g |

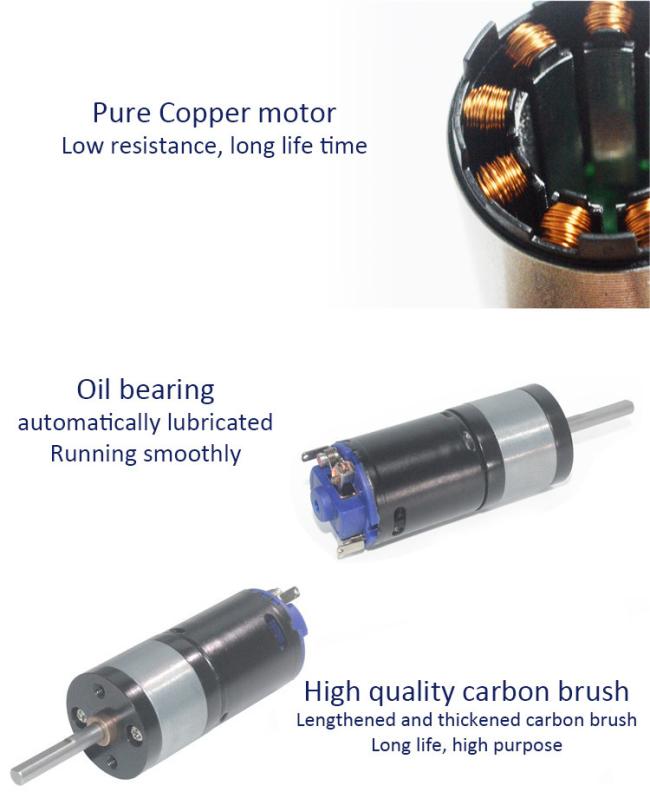

10kg.Cm High Torque Dc Reducer Motor With Double Gear Boxes For Smart Home
Main features:
SC370 MOTOR PARAMETERS:
| Model number | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||
| RATED | SPEED | CURRENT | SPEED | CURRENT | TORQUE | Output | TORQUE | CURRENT | |
| VDC | ±10% r/min | A | ±10% r/min | A | g.cm | W | g.cm | A | |
| SC370-0610 | 6 | 10000 | 0.3 | 8200 | 1.6 | 70 | 6 | 390 | 8.5 |
| SC370-1220 | 12 | 20000 | 0.4 | 17000 | 2.2 | 100 | 17.8 | 670 | 17 |
SC25-370-1220 GEAR MOTOR PARAMETERS:
| gear ratio | 4.4 | 9.6 | 21.3 | 35.5 | 46.8 | 78 | 103 | 171 | 226 | 378 | 500 |
| no-load Speed ( rpm ) | 4545 | 2083 | 939 | 563 | 427 | 256 | 194 | 117 | 88 | 53 | 40 |
| rated Torque (kg.cm ) | 0.3 | 0.6 | 1.3 | 2.1 | 2.8 | 4.7 | 6.2 | 10.3 | 13.6 | 15 | 15 |
| rated Speed ( rpm ) | 3864 | 1771 | 798 | 479 | 363 | 218 | 165 | 99 | 75 | 45 | 34 |
| stall Torque ( kg.cm ) | 1.2 | 2.6 | 5.8 | 9.6 | 12.6 | 21.1 | 27.8 | no stalling, max 25kg | |||
| L length mm | 18 | 17.5 | 19 | 21 | 23 | 25 | 27 | ||||
| weight g | 85 | 87 | 92 | 95 | 97 | 100 | |||||

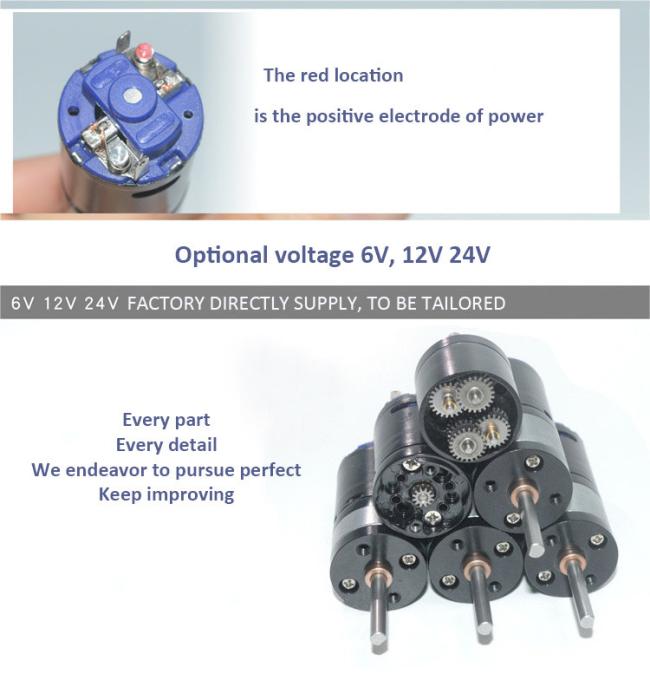

This gear reduction DC motor is upgraded with double gear transmission boxes. Can replace planetary gearbox, with high bearing strength, strong rigidity, large load torque and long service life.
Q & A
Que:
To
customize
the
motor,
what
information
should
be
provided?
Ans:
You
need
to
offer
the
specification
of
the
motor
like
expected
sizes,
rated
voltage,
speed,
torque,
shafts.
It'll
be
great
if
the
drawing
is
available.
Que:
What’s
your
main
motors?
Ans:
Various
diameter
options
for
DC
Micro
Brush
Motor,
brushless
and
Gear
Motor.
Tiny
Dc
Motor,
Electric
Motor,
Gear
Motor,
Mini
Dc
Motor,
Brush
Dc
Motor,
DC
Brushless
Motor,
Worm
gear
motor,
Spur
Gear
Motor,
Micro
Motor,
planetary
motor,
Vibration
Motor,
coin
motor
Etc.
Brushed Motor
Brushless Motor (BLDC motor)
Coreless brush & Coreless Brushless
Planetary Gear Motors
Spur Gear Motors
Worm Gear Motor
Que:
What’s
the
main
application
of
the
micro
dc
motor?
Ans:
Our
DC
motors
are
widely
applied
in
precision
instrument,financial
equipment,
medical
devices,
audio
and
visual
equipment,
industrial
automation
and
secure,
banking
and
vending
system,
home
and
office
automation,
automatic
door
system,
medical
device,
personal
care,
power
tool,
smart
household
appliances,
kitchen
appliances,
auto
parts,
RC
Drone,
industry
apparatus,
consumer
electronics,
kids
toys,electric
water
valves,
robots,
Fascia
Massague
Gun
etc.
