| Price | Negotiated The Price |
| MOQ | 10 |
| Delivery Time | 7-10 working days |
| Brand | SECORE |
| Place of Origin | China |
| Certification | CE ROHS |
| Model Number | SC500C |
| Packaging Details | 50pcs per carton or as request |
| Payment Terms | T/T, D/A |
| Supply Ability | 100000pcs per month |
| Construction | pernanent magnet | Place of Origin | China |
| Commutation | Brush commutating | Typical application | Robot, robot toy, robot arm |
| Speed RPM | 50RPM | Packaging Details | 50pcs per carton or as request |
| Model Number | SC500C | Supply Ability | 100000pcs per month |
| Certification | CE ROHS | Rated Voltage | 12V |
| Brand Name | SECORE | Payment Terms | T/T, D/A |
| Price | Negotiated The Price | Delivery Time | 7-10 working days |
| Product Type | robot arm gear motor | Minimum Order Quantity | 10 |
| Rated Power | 0.4W | Rated Torque | 2.1 g.cm |

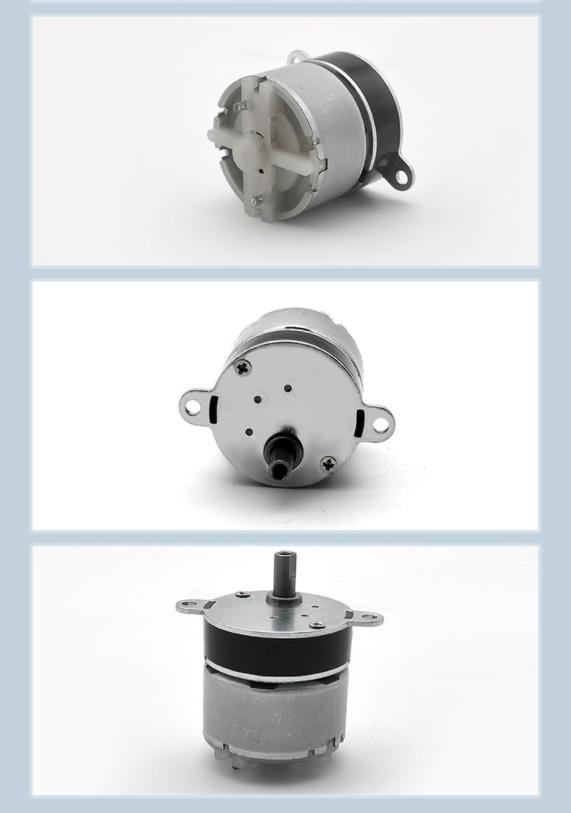

12V 24V Robot Gear Motor, 50rpm Robot Arm Metal Gear Reducing Motor
Specifications :
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| Rated voltage | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RPM | A | RPM | A | mN.m | g.cm | W | N.m | kg.cm | A | |||
| SC-500C | 3.0V | 52 | 0.12 | 42 | 0.32 | 0.098 | 1.1 | 0.43 | 0.393 | 3.93 | 1.7 | |
| 6.0V | 62 | 0.13 | 52 | 0.26 | 0.098 | 1.1 | 0.63 | 0.491 | 4.91 | 2.2 | ||
| 12.0V | 52 | 0.12 | 46 | 0.22 | 0.197 | 2.1 | 1.22 | 1.276 | 12.76 | 3.2 | ||
| 24.0V | 62 | 0.053 | 56 | 0.12 | 0.197 | 2.1 | 1.22 | 1.568 | 15.68 | 3.2 | ||
Dimensions:
What is gear motor?
A gear motor is a combination of a motor and gearbox. The addition of a gear head to a motor reduces the speed while increasing the torque output. The most important parameters in regards to gear motors are speed, torque and efficiency (%). In order to choose the most proper gear motor for your application, you must first compute the load, speed and torque requirements for your application. Secore offers a variety of spur gear motors, planetary gear motors and worm gear motors to meet different application requirements. Most of our DC motors can be complimented with one of our gearbox, to provide a highly efficient gear motor solution.
