| Price | Negotiated The Price |
| MOQ | 100 |
| Delivery Time | 10-12 working days |
| Brand | SECORE |
| Place of Origin | Guangdong |
| Certification | CE ROHS |
| Model Number | DC3365-SG |
| Packaging Details | 100pcs per carton or as request |
| Payment Terms | T/T, D/A |
| Supply Ability | 100000pcs per month |
| continuous current | 30mA | Place of Origin | Guangdong |
| Typical application | Financial equipment, automation, game consoles | motor dimension | D33mm * 65mm |
| Packaging Details | 100pcs per carton or as request | Model Number | DC3365-SG |
| Supply Ability | 100000pcs per month | Certification | CE ROHS |
| commutation | brush | voltage | 12V / 24V |
| Brand Name | SECORE | Payment Terms | T/T, D/A |
| Rated torque | 3.0 kgf.cm | Type | Gearbox motor, brush dc spur gear motor |
| Price | Negotiated The Price | Delivery Time | 10-12 working days |
| Rated Speed | 11rpm | Minimum Order Quantity | 100 |
12V Brush Dc Spur Gear Motor 10RPM, 33mm DC Brush Gear Motor Customized
Main features:
Motor type: Brush commutated DC gear motor
Gearbox type: spur gearbox
Diameter of Gearbox: 65*38*12mm; DC motor: 33mm diameter
| No load | load | stall | |||||||
| Model number | Rated voltage | current (mA) | speed (rpm) | current (mA) | speed (rpm) | torque kgf.cm | output power W | Torque kgf.cm | Current mA |
| DC6538-135 | 12 | ≤30 | 24 | ≤100 | 19 | 1.6 | 0.5 | ≥3.0 | ≤400 |
| DC6538-225 | 12 | ≤30 | 14 | ≤100 | 11 | 3 | 0.5 | ≥4.5 | ≤400 |
| Reduction ratio | 1:40 / 1:67 | 1:135 / 1:225 | 1:450 |
| gearbox length | 65*38*12 | 65*38*12 | 65*38*12 |
| gearbox efficiency | 72% | 65% | 58% |

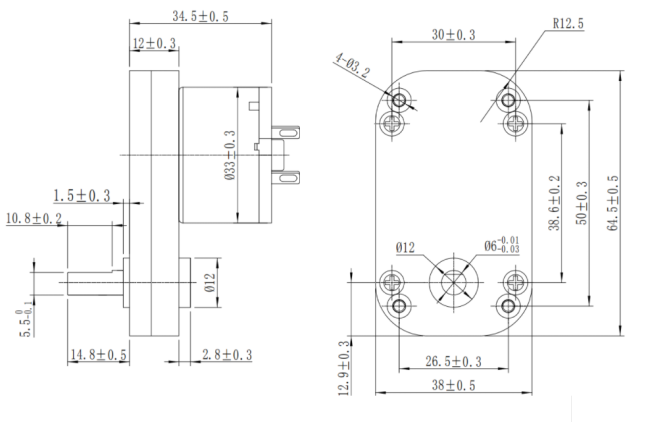

Gear motor dimensions:
Provide motor size, lead requirement, working voltage, no-load conversion, no-load current, load, stall current, etc, TO TAILOR YOUR MOTOR.
Rated voltage: 12VDC/24VDC other voltage
Application Industry/TApplication Industry: Financial equipment, automation, game consoles and other industries;
Note: The expected shape and performance can be customized according to requirements
