| Price | Negotiable |
| MOQ | 200 |
| Delivery Time | 10-12 working days |
| Brand | SECORE |
| Place of Origin | Shenzhen |
| Certification | CE ROHS |
| Model Number | DC3323-27GB |
| Packaging Details | 100pcs per carton or as request |
| Payment Terms | D/P, T/T,, Western Union, L/C |
| Usage | Cat toilet, cat litter box | product | 37mm gear motor, 520 geared motor |
| Place of Origin | Shenzhen | gearbox size | Φ37*L21.5mm~L29mm |
| motor dimension | Φ33*L23mm | Packaging Details | 100pcs per carton or as request |
| Model Number | DC3323-27GB | Certification | CE ROHS |
| Rated Voltage | 12V / 24V | Brand Name | SECORE |
| Payment Terms | D/P, T/T,, Western Union, L/C | Rated torque | 0.12mN.m, 1.64mN.m |
| Delivery Time | 10-12 working days | Rated Speed | 10rpm, 200rpm or per request |
| Minimum Order Quantity | 200 | Power | 1W, 2.5W |

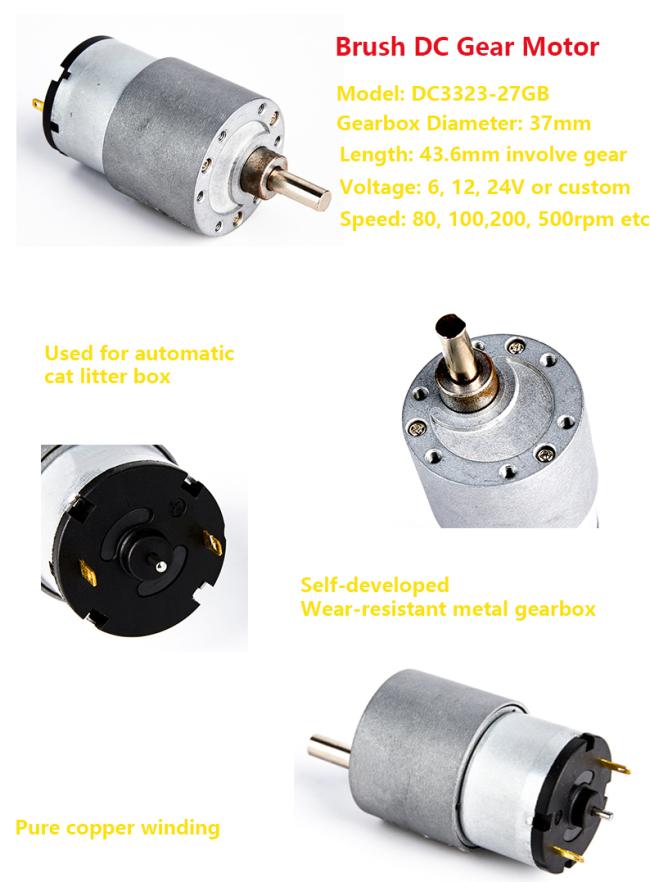

Cat Toilet Gear Motor 37mm Micro Brush Gearbox Motor 520 For Automatic Cat Litter Box
Secore Motor DC3323-27GB Brushed DC gear motor main features:
Place
of
Origin:Guangdong,
China
Brand
Name:
Secore
Model
Number:DC3323-27GB
Input
Voltage:
24V,
12V
Output
Speed:
8RPM,
10RPM,
16RPM,
100RPM,
200RPM
etc,
customizable
Application:
Cat
toilet,
cat
litter
box,
electronic
lock
| Model # | DC3323-27GB |
| Voltage | 12V, 24V |
| Power | 1W-2.5W |
| Speed | 10 r/min, 100rpm or as per request |

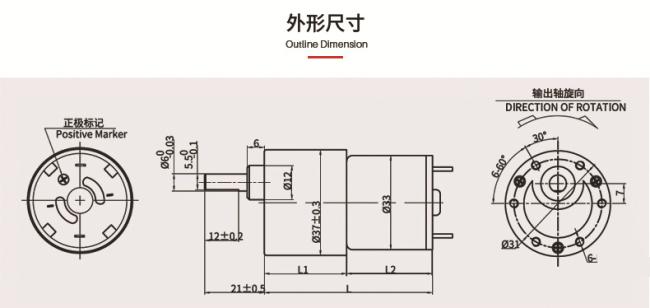

| Size | Φ37*L44mm or more length options |
| Application | Cat toilet, cat litter box |
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | Gear length (L) | Matching motor | Motor length (L1) | |||||
|
SPEED RPM |
CURRENT A |
SPEED RPM |
TORQUE mN.m |
CURRENT A |
POWER W |
TORQUE mN.m |
CURRENT A |
mm | Model | mm | ||
| DC3323-27GB | 12 | 260 | 0.06 | 200 | 0.12 | 0.53 | 2.46 | 0.41 | 2.6 | 21.5 | DC3323 | 22.6 |
| DC3323-27GB | 12 | 158 | 0.09 | 130 | 0.18 | 0.43 | 2.4 | 0.78 | 2.7 | 24 | DC3323 | 22.6 |
| DC3323-27GB | 24 | 58.2 | 0.07 | 49.2 | 0.34 | 0.18 | 1.74 | 1.74 | 2.3 | 24 | DC3323 | 22.6 |
| DC3323-27GB | 12 | 21 | 0.036 | 16.6 | 0.15 | 0.06 | 0.26 | 0.56 | 0.32 | 26.5 | DC3323 | 22.6 |
| DC3323-27GB | 12 | 38 | 0.09 | 30 | 0.61 | 0.4 | 1.91 | 2.25 | 2.6 | 26.5 | DC3323 | 22.6 |
| DC3323-27GB | 24 | 10 | 0.05 | 8.2 | 1.22 | 0.14 | 1.03 | 5.88 | 2.6 | 29 | DC3323 | 22.6 |
| DC3323-27GB | 12 | 12.6 | 0.08 | 10 | 1.64 | 0.36 | 1.71 | 6.18 | 2.7 | 29 | DC3323 | 22.6 |
