| Price | Negotiable |
| MOQ | 200 |
| Delivery Time | 10-12 working days |
| Brand | SECORE |
| Place of Origin | Shenzhen |
| Certification | CE ROHS |
| Model Number | DC2737-37GB |
| Packaging Details | 100pcs per carton or as request |
| Payment Terms | D/P, T/T,, Western Union, L/C |
| motor size | OD27mm*L37mm | product name | straight tooth gear motor, toy car gear motor |
| Place of Origin | Shenzhen | gearbox size | 37mm*24mm |
| Packaging Details | 100pcs per carton or as request | Model Number | DC2737-37GB |
| Certification | CE ROHS | Rated Voltage | 12V or as request |
| Brand Name | SECORE | Payment Terms | D/P, T/T,, Western Union, L/C |
| Delivery Time | 10-12 working days | Rated Speed | 38.4rpm |
| Minimum Order Quantity | 200 | Motor application | Toy car, electric paper output machine |
| Rated Torque | 14.8kg.cm, 1.48N.m | Power | 20W |
Long-Life Smart Home Dc Gear Motor 37mm Brush Spur Gear Motor For Electric Paper Output Machine
Secore brush motor gear motor DC2737-37GB main features:
Place
of
Origin:
Guangdong,
China
Brand
Name:
Secore
Model
Number:
DC2737-37GB
Voltage:
6V,
12V,
24V
Speed
/
Torque:
as
below
table,
or
customized
Application:
cooking
machine,
cook
machine,
cooker
machine,
robot,
paper
output
machine,
toy
car
| MODEL | VOLTAGE | Motor free load | motor with gearbox (no load ) | ||||||
| Current A | Speed RPM | torque kg.cm | Motor size | gear ratio | gearbox length | current | speed | ||
| DC2737-37GB | 12 | 0.14 | 8000 | 0.152 | 38 | 10 | 16.8 | 0.42 | 800 |
| DC2737-37GB | 12 | 0.14 | 8000 | 0.152 | 38 | 30 | 20.2 | 0.15 | 266.8 |
| DC2737-37GB | 12 | 0.14 | 8000 | 0.152 | 38 | 50 | 20.2 | 0.42 | 160.1 |
| DC2737-37GB | 12 | 0.14 | 8000 | 0.152 | 38 | 90 | 20.2 | 0.42 | 89.1 |
| DC2737-37GB | 12 | 0.14 | 8000 | 0.152 | 38 | 150 | 20.2 | 0.42 | 53.4 |
| DC2737-37GB | 12 | 0.14 | 8000 | 0.152 | 38 | 167 | 20.2 | 0.42 | 47.8 |
| DC2737-37GB | 12 | 0.14 | 8000 | 0.152 | 38 | 270 | 20.2 | 0.42 | 29.7 |
| DC2737-37GB | 12 | 0.14 | 8000 | 0.152 | 38 | 450 | 20.2 | 0.42 | 17.9 |
| DC2737-37GB | 12 | 0.14 | 8000 | 0.152 | 38 | 810 | 20.2 | 0.42 | 9.8 |
| DC2737-37GB | 12 | 0.14 | 8000 | 0.152 | 38 | 1350 | 20.2 | 0.42 | 5.9 |
| DC2737-37GB | 12 | 0.14 | 8000 | 0.152 | 38 | 2430 | 20.2 | 0.42 | 3.4 |
| MODEL | VOLTAGE | max efficiency | Noise | At stall | ||||
| current A | speed rpm | torque kg.cm | output power W | dB | current A | torque kg.cm | ||
| DC2737-37GB | 12 | 1.68 | 560 | 0.9 | 20.16 | dis: 10cm | 8.4 | 2.6 |
| DC2737-37GB | 12 | 0.6 | 213.2 | 2.6 | 7.2 | 65dB | 3 | 7.9 |
| DC2737-37GB | 12 | 1.68 | 128 | 4.4 | 20.16 | 65dB | 8.4 | 13.2 |
| DC2737-37GB | 12 | 1.68 | 71.2 | 7.9 | 20.16 | 65dB | 8.4 | 23.8 |
| DC2737-37GB | 12 | 1.68 | 42.8 | 13.3 | 20.16 | 65dB | 8.4 | 39.8 |
| DC2737-37GB | 12 | 1.68 | 38.4 | 14.8 | 20.16 | 65dB | 8.4 | 44.2 |
| DC2737-37GB | 12 | 1.68 | 23.8 | 19.8 | 20.16 | 65dB | 8.4 | 59.2 |
| DC2737-37GB | 12 | 1.68 | 14.2 | 30.7 | 20.16 | 65dB | 8.4 | 92.3 |
| DC2737-37GB | 12 | 1.68 | 7.9 | 51.8 | 20.16 | 65dB | 8.4 | 155.2 |
| DC2737-37GB | 12 | 1.68 | 4.8 | 61.6 | 20.16 | 65dB | 8.4 | 153.8 |
| DC2737-37GB | 12 | 1.68 | 2.6 | 77.7 | 20.16 | 65dB | 8.4 | 16.8 |

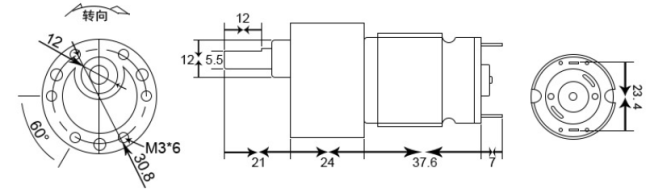

Outline dimensions:

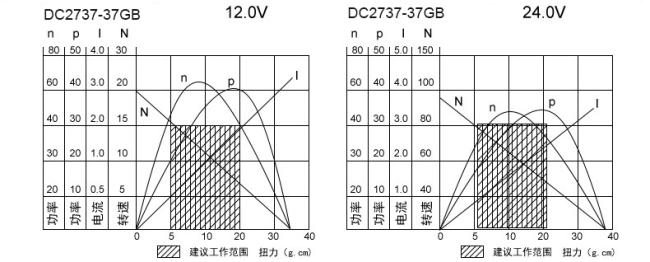

Specification curve:
Application cases:
