| Price | Negotiable |
| MOQ | 200 |
| Delivery Time | 10-12 working days |
| Brand | SECORE |
| Place of Origin | Shenzhen |
| Certification | CE ROHS |
| Model Number | DC3657-37GB |
| Packaging Details | 100pcs per carton or as request |
| Payment Terms | D/P, T/T,, Western Union, L/C |
| Usage | shoe cover dispenser, tapping machine | product name | brush dc spur gear motor, 555 spur gear motor |
| Place of Origin | Shenzhen | Packaging Details | 100pcs per carton or as request |
| Rated speed | 10rpm ~500rpm | Model Number | DC3657-37GB |
| Motor size | Φ36.5*L57mm, 555 motor | Certification | CE ROHS |
| Rated Voltage | 6V 12V 24 etc | Brand Name | SECORE |
| Payment Terms | D/P, T/T,, Western Union, L/C | Spur Gearhead | Φ37*L27mm |
| Delivery Time | 10-12 working days | Minimum Order Quantity | 200 |
| Rated Torque | 8kg, 35kg or as request | Power | 6.8W |

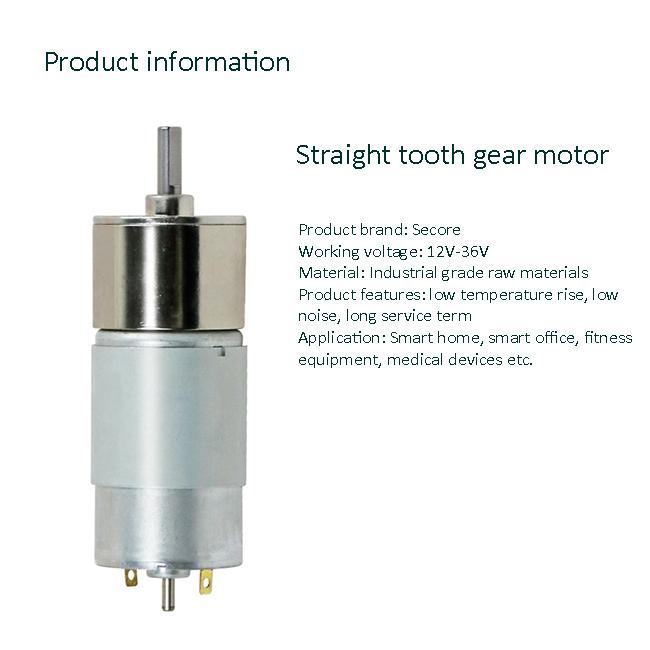

Shoe Cover Dispenser Gear Motor 37mm 555 Straight Teeth Spur Gear Motor Cw Ccw With Self-Locking
Secore Brushed Spur Gear motor 37mm 555 dc motor main features:
| MODEL | VOLTAGE | Motor free load | motor with gearbox (no load ) | ||||||
| Current A | Speed RPM | torque kg.cm | Motor size | gear ratio | gearbox length | current | speed | ||
| DC3657-37GB | 6 | 0.25 | 8000 | 0.45 | 57 | 33 | 27 | 0.375 | 242 |
| DC3657-37GB | 6 | 0.25 | 8000 | 0.45 | 57 | 77 | 27 | 0.375 | 104 |
| DC3657-37GB | 6 | 0.25 | 8000 | 0.45 | 57 | 78.3 | 27 | 0.375 | 102 |
| DC3657-37GB | 6 | 0.25 | 8000 | 0.45 | 57 | 133 | 27 | 0.375 | 60 |
| DC3657-37GB | 6 | 0.25 | 8000 | 0.45 | 57 | 135 | 27 | 0.375 | 59 |
| MODEL | VOLTAGE | max efficiency | At stall | ||||
| current A | speed rpm | torque kg.cm | output power W | current A | torque kg.cm | ||
| DC3657-37GB | 6 | 1.125 | 194 | 8.6 | 6.8 | 5.6 | 25.8 |
| DC3657-37GB | 6 | 1.125 | 187 | 20.1 | 6.8 | 5.6 | 60.3 |
| DC3657-37GB | 6 | 1.125 | 112 | 20.4 | 6.8 | 5.6 | 61.3 |
| DC3657-37GB | 6 | 1.125 | 62 | 34.7 | 6.8 | 5.6 | 104.2 |
| DC3657-37GB | 6 | 1.125 | 37 | 35.2 | 6.8 | 5.6 | 105.8 |

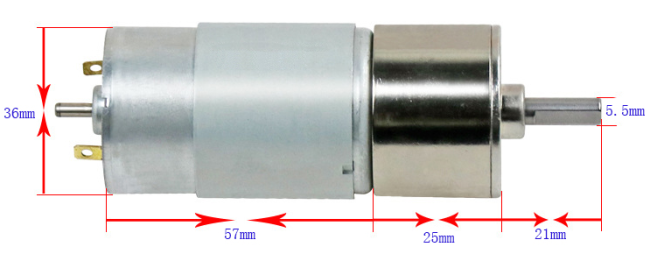

Outline Dimensions:

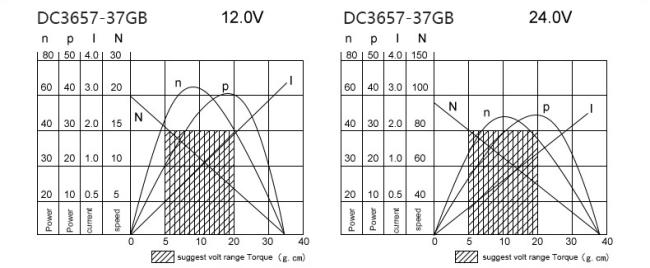

Performance Curve:
Application industry cases
