| Price | Negotiated The Price |
| MOQ | 500 |
| Delivery Time | 15-18 working days |
| Brand | SECORE |
| Place of Origin | Guangdong |
| Certification | CE ROHS |
| Model Number | BLH4260-GB |
| Packaging Details | 500pcs per carton or as request |
| Payment Terms | T/T, D/A |
| Supply Ability | 100000pcs per month |
| Speed | 800rpm or customized | product name | BLDC Geared motor, brushless gear motor, planetary bldc motor |
| Place of Origin | Guangdong | Typical application | roll curtain, electric curtain, Squirming pump, robot arm |
| Packaging Details | 500pcs per carton or as request | Model Number | BLH4260-GB |
| Supply Ability | 100000pcs per month | Certification | CE ROHS |
| Brand Name | SECORE | Payment Terms | T/T, D/A |
| Price | Negotiated The Price | Delivery Time | 15-18 working days |
| Rated voltage | 24V | Minimum Order Quantity | 500 |

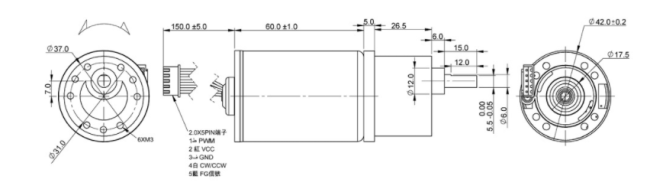

| Diemeter * Length | 42*60（mm） | Rated Torque | 1.5kg.cm or as request |
Customized Roll Curtain Brushless DC Gear Motor With Speed Decelaration
Main features:
brushless DC geared motor, the motor size is small, the diameter is 42mm, the speed can reach 3000rpm, the voltage is 12-24V, and the power is 20-100W. This permanent magnet brushless motor can be widely used: such as automatic rollingcurtain, Squirming pump, etc.
| Model |
Rated
voltage ( v ) |
no
load
current ( A ) |
no
load
speed ( RPM ) |
Rated
torque (gf.cm ) |
rated
current ( A ) |
rated
Speed ( RPM ) |
stall
torque ( gf.cm ) |
stall
current ( A ) |
max
power ( W ) |
| BLS4260 | 12 | 300 | 5000 | 500 | 2500 | 3400 | 1500 | 4 | 19.2 |
| BLS4260 | 24 | 140 | 5000 | 500 | 1300 | 3500 | 1700 | 4 | 21.8 |
| Gear motor model | Voltage ( dc ) | Reduction ratio | 4 | 20 | 100 | 190 | 370 | 516 |
| BLS4260-GB | 24V | motor length | 23 | 33 | 33 | 38 | 38 | 38 |
|
no
load
speed ( RPM ) |
1188 | 238 | 48 | 25 | 13 | 9 | ||
|
rated
Speed ( RPM ) |
831 | 166 | 33 | 18 | 9 | 6 | ||
|
Rated
torque (kg.cm ) |
1.5 | 8 | 15 | 20 | 30 | 30 | ||
|
stall
torque ( kg.cm ) |
4.8 | 23.8 | 80 | 80 | 80 | 80 | ||
| Gear motor model | Voltage ( dc ) | Reduction ratio | 4 | 20 | 100 | 190 | 370 | 516 |
| BLS4260-GB | 24V | motor length | 23 | 33 | 33 | 38 | 38 | 38 |
|
no
load
speed ( RPM ) |
1188 | 238 | 48 | 25 | 13 | 9 | ||
|
rated
Speed ( RPM ) |
831 | 166 | 33 | 18 | 9 | 6 | ||
|
Rated
torque (kg.cm ) |
1.5 | 8 | 15 | 20 | 30 | 30 | ||
|
stall
torque ( kg.cm ) |
4.8 | 23.8 | 80 | 80 | 80 | 80 |
MOTOR DESIGNER–ANSOFT Finite element analysis
Structure:
static
characteristics
analysis,
model,
buckling,
contact,
prestress
and
vibration
analysis
Heat:
heat
conduction
characteristics
of
multifunctional
structure
Dynamic:
analysis
of
the
movement
state
and
stress
of
components
Vibration:
Perform
dynamic
time,
frequency,
and
random
shock
analysis
Advantages of dynamic simulation analysis
*
Optimize
the
use
of
motor
materials
to
reduce
weight
and
reduce
costs
*
Reasonable
electromagnetic
design
and
structural
design
to
reduce
noise
and
vibration
Typical Application:
Industrial automation: conveyers, rotational operation, automatic gate system, solar tracker etc.
Household electrical appliance : lawn mower, ice crusher, stair lift, air-condition, masticating juicer, food waste disposer, kitchen appliances, etc.,
The automotive industry: truck tarp systems, pumps, electric chair, jack, etc.
Recreational equipment: swimming pool cleaners, pool cover systems, golf trolley, amusement machines and other places of entertainment, etc.
Office automation: automatic doors, elevator doors, roller shutter, curtains, punch machines, financial instruments, etc.
Medical and health-care equipment: all kinds of massage health care equipment, medical equipment, etc.
