| Price | Negotiable |
| MOQ | 1km |
| Delivery Time | 5-8 work days |
| Brand | JQ/OEM |
| Place of Origin | Guangzhou,China |
| Certification | ISO9001 ROHS CE-EMC FCC SDOC |
| Model Number | GYTC8Y/GYXTC8Y |
| Packaging Details | wooden drum |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 4500KM Per Month |
| Fiber count | 4-144 Core | Jacket | PE |
| Installation | Outdoor Aerial Self-supporting | Place of Origin | Guangzhou,China |
| Packaging Details | wooden drum | Color | Black |
| Model Number | GYTC8Y/GYXTC8Y | Supply Ability | 4500KM Per Month |
| Certification | ISO9001 ROHS CE-EMC FCC SDOC | Brand Name | JQ/OEM |
| Payment Terms | L/C, T/T, Western Union | Messenger wire | 7*1.0mm stranded steel wire |
| Type | Singlemode | Delivery Time | 5-8 work days |
| Product name | Figure 8 cable | Length | 2km or customized length |
| Oem | Available | Minimum Order Quantity | 1km |
| Structure | Figure 8 | Fiber type | YOFC/Fiberhome or as request |

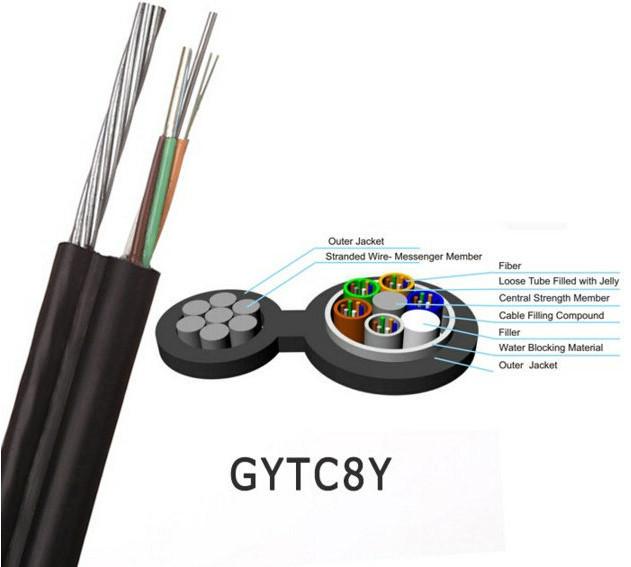

Figure 8 Aerial Self-Supporting Non-Armored Fiber Optic Cable GYTC8Y/GYXTC8Y
Features
Fiber:4-144
fibers
Uni-loose
tube
gel-filled
Loose tube gel-filled construction for superior fiber protection.
Non-Armored
OuterJacket
Black
UV-and
moisture-resistant
polyethylene
(PE) UV
and
moisture-resistant
design
Self-supporting
Figure
8
design
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Picture Show
Packing & Delivery
Packaing detail:
1km/ 2km/3km/4km/5km per wooden drum
Shipping:
By sea/by air or express delivery,it depends on the order quantity
Lead time:
| Quantity(km) | 1-300 | Above 300 |
| Earliest time(day) | 5-7 | Negotiable |
