Product Details

Cladding Diameter	125.0±0.1	Jacket	UV PE
Place of Origin	Guangzhou China	Water Blocking System	Filling Compound
Model Number	GYTC8Y/GYXTC8Y	Bending Radius	20D
Cable Use	Outdoor	Certification	ISO9001
strength member	aramid yarn	Brand Name	JQ
Outer Diameter	7.0mm-9.0mm	Fiber Diameter	9/125μm
Self Suporting	Stranded Steel Wire/Steel wire

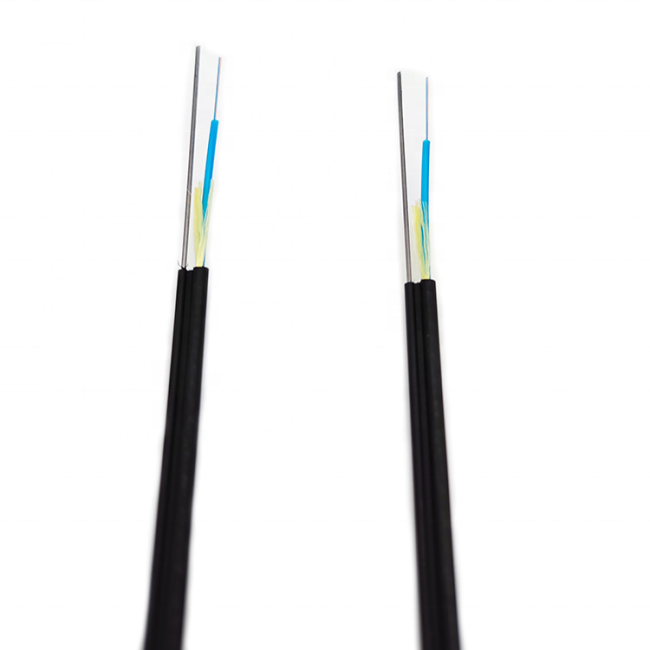

Figure 8 Fiber Optic Cable

Self-Supporting: The Figure 8 Fiber Optic Cable is designed to be self-supporting, eliminating the need for additional hardware or structures.
Stranded Steel Wire: The cable is reinforced with stranded steel wire, providing high strength and support for aerial installations.
UV PE Jacket: The cable is jacketed with UV PE material, which provides excellent protection against harsh weather conditions and UV radiation.
Aluminum Tape/Steel Tape Armored: The cable is armored with either aluminum tape or steel tape, providing additional protection against rodents, moisture, and other external factors.

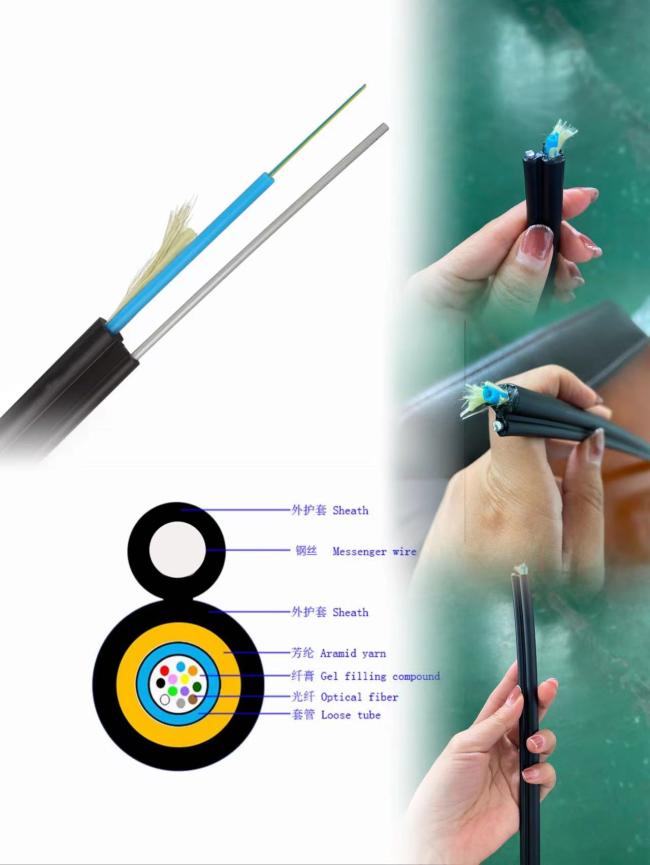

Cable structure and parameter

Fiber number	Galvanized steel wire diameter	Loose tube	Sheath thickness (nominal*)	Connect dimension	Cable dimension WH (nominal*)	Weight (approx.)
Fiber number	mm	mm	mm	mm	mm	kg/km
6	1.6	2.5	1.5	1.5*1.5	6.8*11.5	70
12	1.6	3	1.5	1.5*1.5	7.4*12.0	77

* The nominal sheath thickness may have a tolerance with ±0.2mm.
** The nominal cable dimension may have a tolerance with ±0.5mm.

Performance of Optical Fiber

The performance of cabled optical fiber (ITU-T Rec. G.652D)

Item	Specification
Fiber type	Single mode
Fiber material	Doped silica
Attenuation coefficient @ 1310 nm @ 1383 nm @ 1550 nm @ 1625 nm	≤ 0.36 dB/km ≤0.35 dB/km ≤0.22 dB/km ≤0.30 dB/km
Point discontinuity	≤ 0.05 dB
Cable cut-off wavelength	≤ 1260 nm
Zero-dispersion wavelength	1300 ~ 1324 nm
Zero-dispersion slope	≤0.093 ps/(nm².km)
Chromatic dispersion @ 1288 ~ 1339 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm	≤3.5 ps/(nm. km) ≤5.3 ps/(nm. km) ≤18 ps/(nm. km) ≤22 ps/(nm. km)
PMD	≤0.2 ps/km½
Mode field diameter @ 1310 nm	(8.6~9.5)±0.6 um
Core / Clad concentricity error	≤0.6 um
Cladding diameter	125.0 ± 1 um
Cladding non-circularity	≤1.0%
Primary coating diameter	245 ± 10 um
Proof test level	100 kpsi (=0.69 Gpa), 1%
Temperature dependence 0℃~ +70℃ @ 1310 & 1550nm	≤ 0.1 dB/km

Product Name	Figure 8 Fiber Optic Cable
Aerial Use	Yes
Customizable	Yes
Cable Diameter	7.0mm-16.0mm
Bend Radius	20x Cable Diameter
Jacket Material	LSZH (Low Smoke Zero Halogen)
Bending Radius	20D
Cable Sheath	PE (Polyethylene)
Self Supporting	Stranded Steel Wire
Jacket	UV PE (UV-resistant Polyethylene)
Fiber Diameter	9/125μm
Armored Material	Aluminum Tape or Steel Tape
Cable Use	Outdoor
