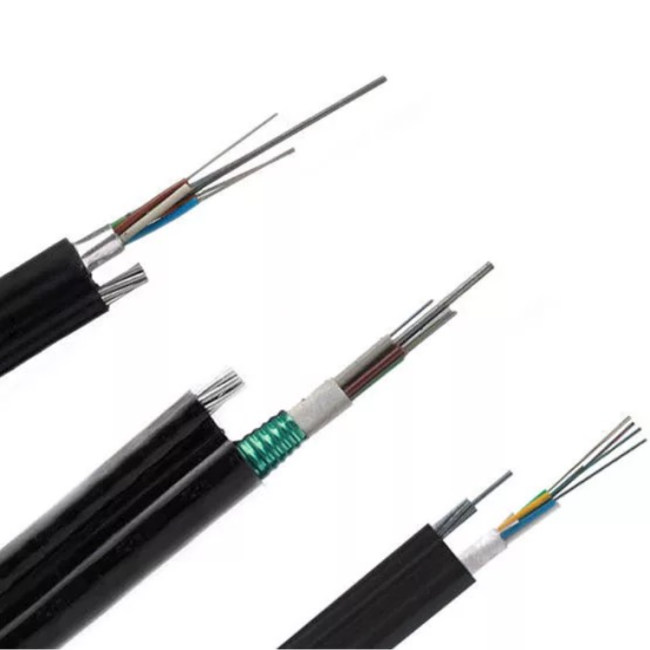

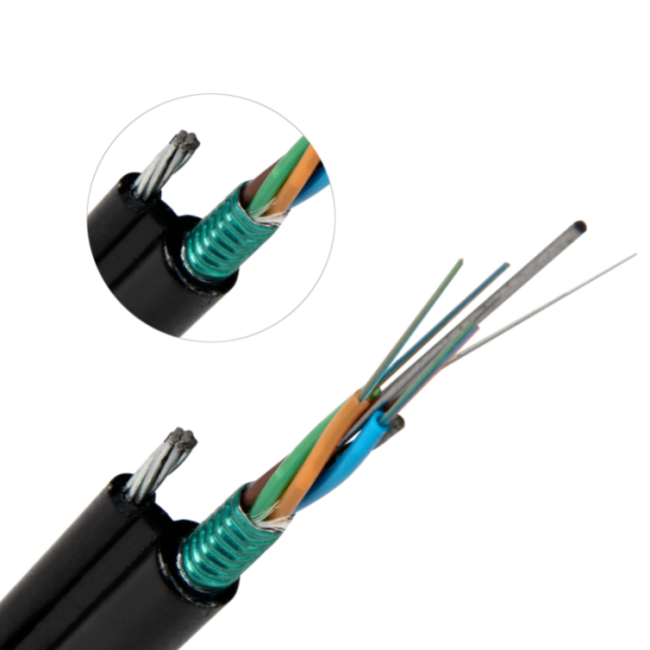

Steel Wire Figure 8 Fiber Optic Cable Self - Supported 5KM Length

Fig 8 Cable Single Mode Amoured 12 24 48 96 Cores Fiber Optic Cable

Product Description

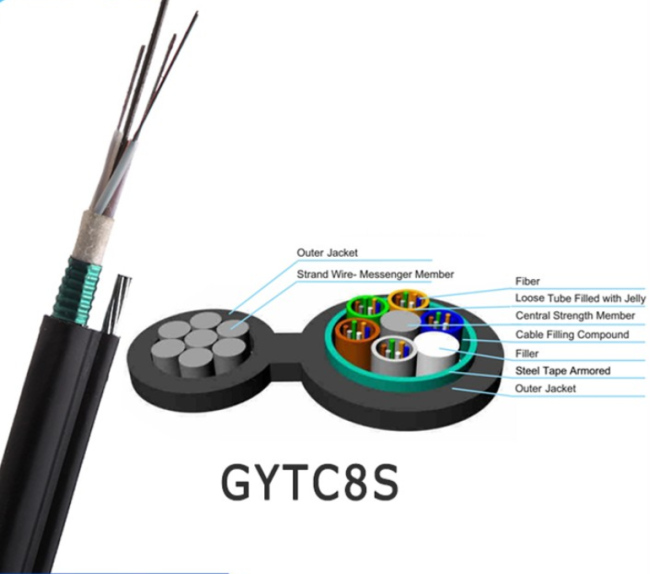

Type	GYFTC8S	GYTC8S	GYXTC8S
Fiber Count	2-144	2-144	2-12
Reference Outer Diameter	9.8~16.2mm	9.8~16.2mm	7.6mm
Cable Weight(kg/km)	180~260	180~260	130
Tensile Stength	2000~7000N	2000~7000N	1500~4000N
Attenuation (dB/km)	≤0.36dB/km@1310mm; ≤0.22dB/km@1550mm
Operation temperature	-40 ℃~70 ℃

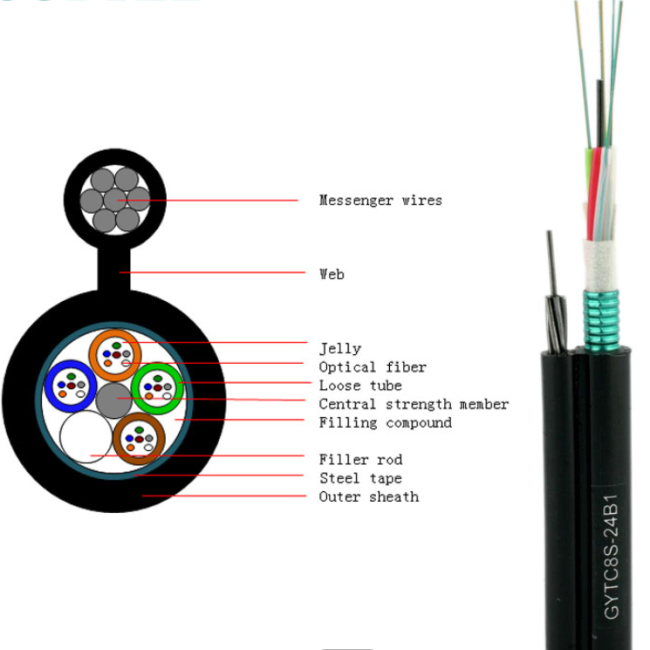

Self-supporting optical fiber

Adopted to the core network,metropolitan area network,access network etc.

. High tensile strength of stranded wires meed the requirement of self-supporting and reduce the installation cost;

. Special tube filling compound ensure a critical protection of fiber;

. The following measures are taken to ensure the cable watertight.

Fiber parameter

Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	mm	9.2±0.4
	1550nm	mm	10.4±0.8
Cladding diameter		mm	125.0±1
Cladding non-circularity		%	£1.0
Core/cladding concentricity error		mm	£0.5
Coating diameter		mm	245±5
Coating non-Circularity		%	£6.0
Coating/cladding concentricity error		mm	£12.0
Cable cut-off wavelength		nm	£1260
Attenuation Coefficient	1310nm	dB/km	£0.36
	1550nm	dB/km	£0.22
Proof stress level		kpsi	≥100



There are twelve fiber color code.They are A grade fiber.

We are fiber cable manufacturer.We have a factory.

Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed

We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.

Don't hesitate to contact me. Whatsapp:+86 18122383351

FQA

Q1.Are you the real manufacturer?
We are the real manufacturer with 10 year’s history.

Q2.What’s the MOQ?
The MOQ of Fiber Optic cable is 1km.

Q3.What’s delivery time?
The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

Q4.How to Store the Optical Fiber Cable Properly?

Store the drum indoor before using, the drum should place sideways not on the end.

Q5. Can you supply customized products and logo?
Yes. We supply OEM service.

Q6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
