| Price | Negotiate |
| MOQ | 1 PCS |
| Delivery Time | 5 working days |
| Brand | Shine Abrasives |
| Place of Origin | CHINA |
| Certification | ISO |
| Model Number | 1A1 |
| Packaging Details | 1 pcs in one carton or wood box |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000 PCS per week |
| Grit Size | D15 | Place of Origin | CHINA |
| Shape | 1A1 Straight | Diamond Rim Size | 15x10mm |
| Packaging Details | 1 pcs in one carton or wood box | HS Code | 6804211000 |
| Model Number | 1A1 | Supply Ability | 5000 PCS per week |
| Certification | ISO | Brand Name | Shine Abrasives |
| Payment Terms | L/C, T/T | Bond Type | Resin |
| Price | Negotiate | Delivery Time | 5 working days |
| Minimum Order Quantity | 1 PCS | Diameter | 20'' |
1A1 Diamond Wheels 20'' For Tungsten Carbide Coating OD Grinding
Shine Abrasives Resin bond 1A1 Diamond Wheels with 20 inch diameter. grit size at fine D15.
Wheel thickness is 15mm,the wheel hole is 203mm with a H7 tolerance.
Mainly used for Carbide HVOF Sprays Coating OD grinding
Cylindrical grind thermal sprayed HVOF coatings
Plasma Spray Coating OD grinding
Spray and Fuse Hardfacing OD grinding
Plasma Tungsten Carbide OD grinding
The drawing of Shine Abrasives 1A1 Diamond Wheels 20'' For Tungsten Carbide Coating OD Grinding
Main sizes form of Shine Abrasives 1A1 Diamond Wheels 20'' For Tungsten Carbide Coating OD Grinding
| Abrasive Material:Diamond | Bond Type:Resin |
| CBN Grit:D15 | Wheel Diameter: 20 inch 500mm |
| Wheel Bore:203mmH7 | Wheel Weight:7kgs/PC |
| Wheel Body Material:Aluminum | Diamond Ring Width:10mm |
| Wheel Thickness:15mm | Concentrate: 125% |
Other standard sizes also are available as requested.

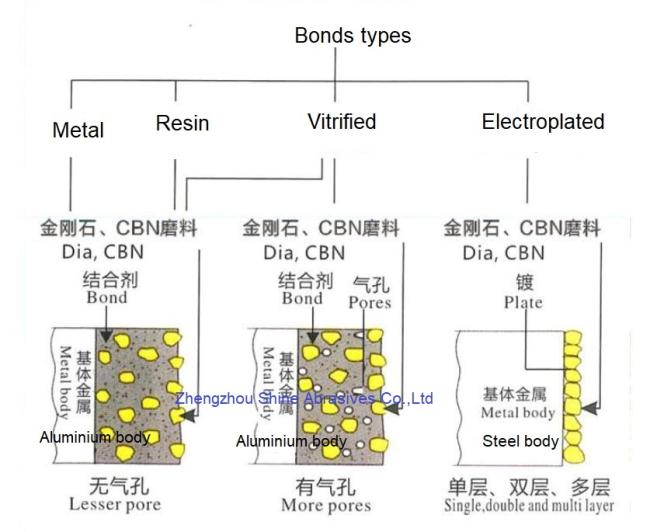

Diamond and CBN bonds type as below picture.
Application picture for reference.
Attention:Workers should ensure that you are fully informed on the safe operation of abrasive cutting and grinding wheels
