1A1 Diamond Wheels Resin Bond For Cemented Carbide OD Grinding
Shine Abrasives resin bond 1A1 Diamond wheel is Superior performance for
grinding non-ferrous materials.
Likes Cemented carbide,Glass,Ceramics,Fiberglass,Plastics,Stone,Abrasives,
Electronic components and materials

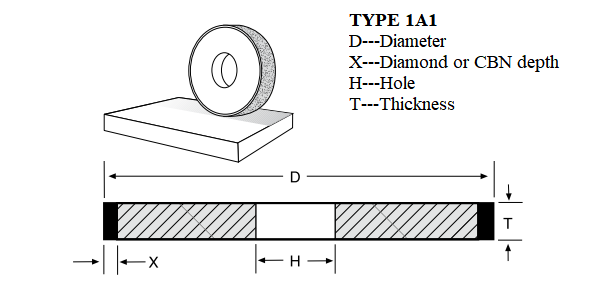

Drawing of Shine Abrasives 1A1 Diamond Wheels Resin Bond For Cemented Carbide OD Grinding
Main sizes of Shine Abrasives 1A1 Diamond Wheels Resin Bond For Cemented Carbide OD Grinding
| D-Diameter | T-Thickness | H-Hole | X-Diamond Depth |
|
50mm(2 inch) |
10mm 15mm 20mm 25mm |
20mm
customized |
3mm
5mm |
|
75mm(3 inch) |
10mm 15mm 20mm 25mm 30mm |
20mm
customized |
3mm 5mm
|
|
100mm(4 inch) |
10mm 15mm 20mm 25mm 30mm |
20mm 25.4mm 32mm
customized |
3mm 5mm 6mm 10mm |
|
125mm(5 inch) |
10mm 15mm 20mm 25mm 30mm |
20mm 25.4mm 32mm
customized |
3mm 5mm 6mm 10mm |
|
150mm(6 inch) |
10mm 15mm 20mm 25mm 30mm |
20mm 25.4mm 32mm
customized |
3mm 5mm 6mm 10mm |
|
200mm(8 inch) |
15mm 20mm 25mm 30mm 35mm |
20mm 25.4mm 32mm
customized |
5mm 6mm 10mm |
|
250mm(10 inch) |
15mm 20mm 25mm 30mm 35mm 40mm |
20mm 25.4mm 32mm
customized |
5mm 6mm 10mm |
|
300mm(12 inch) |
15mm 20mm 25mm 30mm 35mm 40mm |
20mm 25.4mm 32mm 76.2mm
customized |
5mm 6mm 10mm |
|
350mm(14 inch) |
15mm 20mm 25mm 30mm 35mm 40mm |
20mm 25.4mm 32mm 76.2mm
customized |
5mm 6mm 10mm |
|
400mm(16 inch) |
20mm 25mm 30mm 35mm 40mm 50mm |
127mm 203.2mm
customized |
10mm |
|
500mm(20 inch) |
25mm 40mm 50mm 60mm 75mm |
127mm 203.2mm 304.5mm
customized |
10mm |
|
600mm(24 inch) |
25mm 40mm 50mm 60mm 75mm 100mm |
127mm 203.2mm 304.5mm
customized |
10mm |
|
750mm(30 inch) |
25mm 40mm 50mm 60mm 75mm 100mm |
127mm 203.2mm 304.5mm
customized |
10mm |
|
850mm(34 inch) |
25mm 40mm 50mm 60mm 75mm 100mm |
127mm 203.2mm 304.5mm
customized |
20mm |
|
900mm(36 inch) |
25mm 40mm 50mm 60mm 75mm 100mm |
127mm 203.2mm 304.5mm
customized |
20mm |
|
1050mm(42 inch) |
25mm 40mm 50mm 60mm 75mm 100mm |
127mm 203.2mm 304.5mm
customized |
20mm |
Full range Diamond grit sizes are available as below chart.
| Application | Grit size |
Grit size asFEPA-1977 standard |
Grit size as Chinese GB standard |
| Roughing | 80#,100# | D251 D213 D181 | 60/70 70/80 80/100 |
|
Roughing cutting |
120# | D151 D126 | 100/120 120/140 |
|
Combined roughing and finishing
|
150# |
D107 |
140/170 |
| Improving finish | 180# | D91 | 170/200 |
|
Finishing Fine Finishing |
220# 320# 400# |
D76 D64 D54 D46 |
200/230 230/270 270/325 325/400 |
|
Super Fine Finishing
|
800# 1000# |
M10 M6.3 |
W10 W7 |
Shine Abrasives full range Diamond concentration are available as below chart.
| concentration | Features | Application |
Diamond abrasive concentration selected based on grinding wet or dry, material removal rates and form holding requirements |
| 50% |
Most economical
|
For broad area of contact grinding | |
|
75%
|
Freer cutting than 100% and the most economical for dry grinding with ASD diamond. | ||
|
100%
|
Very durable | Recommended under flood coolant conditions; for use with 220 grit or finer, when durability is required, and for cut-off applications. | |
|
125%
|
Form holding | Used in high-volume, high-pressure coolant, precision applications | |
Other special Resin bond 1A1 Diamond Wheels sizes,Diamond grit size, Diamond concentration can be customized made.
Features of Shine Abrasives 1A1 Diamond Wheels Resin Bond For Cemented Carbide OD Grinding
High quality synthetic diamond abrasives.
High material removal rates with longer wheel life vs. conventional green silicon carbide wheels
Wide variety of wheel standard shapes and bond options available
Free cutting; superior form holding,
efficient and available for wet or dry grinding.
Ideal for dry tool-room reconditioning applications
Fast stock removal, cool cutting; excellent for dry offhand finishing of carbide.
Most durable under high grinding forces, excellent for wet, offhand finishing of carbide tools.
