| Price | $11,000 ~ $12,000 / set |
| MOQ | 1 set |
| Delivery Time | 5--15days |
| Brand | RUNNING |
| Place of Origin | China |
| Certification | CE,SGS |
| Model Number | ZLJ-2000*830 |
| Packaging Details | FCL/LCL |
| Payment Terms | T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 50000sets/year |
| Condition | New | Place of Origin | China |
| Warranty | 2 Yeras | Heating type | Electrical |
| Cooling type | Water Cooling | Packaging Details | FCL/LCL |
| Material | Aluminum alloy | Model Number | ZLJ-2000*830 |
| Supply Ability | 50000sets/year | Certification | CE,SGS |
| Brand Name | RUNNING | Payment Terms | T/T, L/C, Western Union, MoneyGram |
| Price | $11,000 ~ $12,000 / set | Delivery Time | 5--15days |
| Minimum Order Quantity | 1 set | Application | conveyor belt hot vulcanizing joint |
Rubber Belt Joining Press Vulcaniser /Rubber Belt Splicing Machine
When order, pls supply below information, our technician will make a solution for you, or pls choose one model from bottom traditional sizes table
Normal vulcanizer model sheet:
A=
Splice
Length
B=
Bet
Width
C=Length
of
platen
along
the
belt
D=
Width
of
platen
measured
square
to
beltline
E=
Bias
Ange
F=Width
of
platen
along
the
belt
on
bias

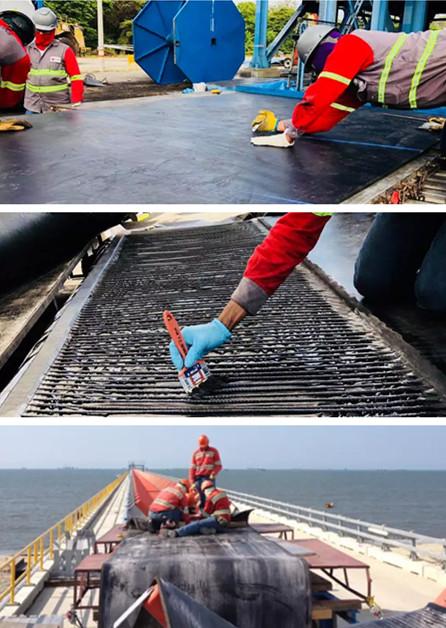

Application of conveyor belt splicing machine
Portable type conveyor belt joint vulcanizing press is mainly applied to industries for splicing and repairing conveyor belts such as metallurgy, mine, power plant, port, dock, construction material cement, chemical industry, tobacco, and food automatic line field.
Features of conveyor belt splicing machine
1.
Made
of
aluminum
alloy,
light
weight,
2.
Easy
installation
and
removal,
easy
to
handle.
3.
Suppress
water
bag:
1)
Light
weight,
it
is
the
1/4
weight
of
the
ordinary.
2)
Large
expansion
amplitude.
3)
Uniform
pressure
and
the
pressure
can
reach
3.0MPa.
4)
No
water
leakage
and
long
life.
4.
Automatic
temperature
control
and
timing.
Technical Parameters of conveyor belt splicing machine
| Model | Applied Width(mm) | Motor power | Dimension(LxWxH)(mm) | Weight(KG) |
| ZLJ-800x830 | 800 | 11.2 | 1280x830x630 | 650 |
| ZLJ-1000x830 | 1000 | 14.1 | 1480x830x630 | 700 |
| ZLJ-1200x830 | 1200 | 16.5 | 1680x830x710 | 900 |
| ZLJ-1400x830 | 1400 | 18.6 | 1930x830x760 | 1100 |
| ZLJ-1600x830 | 1600 | 21.1 | 2140x830x800 | 1320 |
| ZLJ-1800x830 | 1800 | 23.3 | 2300x830x850 | 1480 |
| ZLJ-2000x830 | 2000 | 25.6 | 2600x830x950 | 1860 |
Except the above models, we can design & make joint vulcanizer machine as your requirement, non-standard machines can be customized.
Our
Advantages
AUTOMATIC CONTROL BOX
With automatic temperature control, security alarm and automatically switch off the power. The control box can monitor the temperature of 3-5 different points on each heating platen at the same time to ensure the result of jointing.

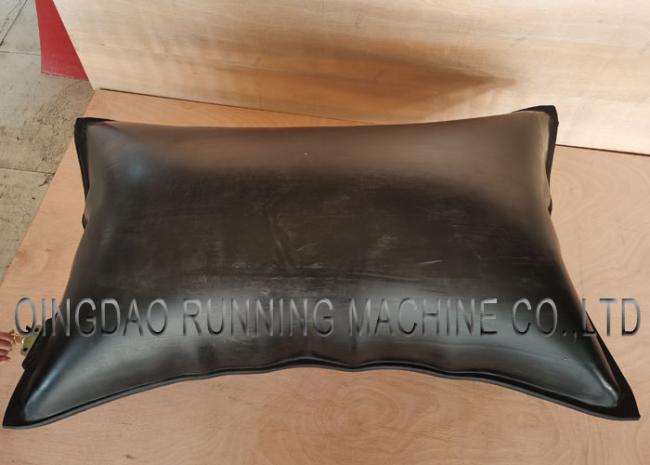

PRESSURE SYSTEM
Signature RUNNING "Pressure Bag" uniform pressure system is lighter up to 4 times than the outdated pressure bag.
The pressure bag can reach full expansion in one time and ensure the uniform pressure up to 3.0MPa.

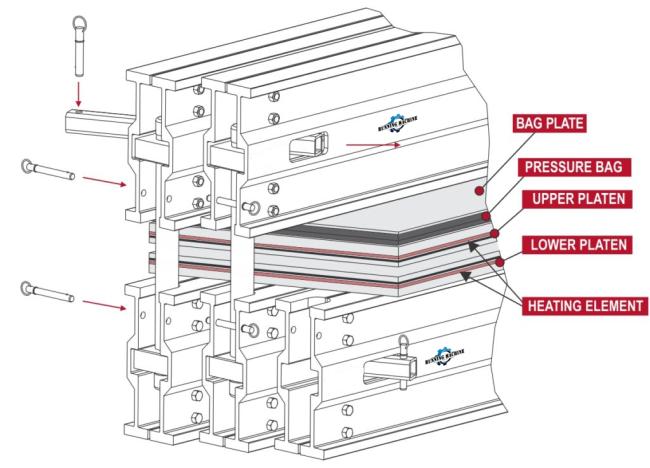

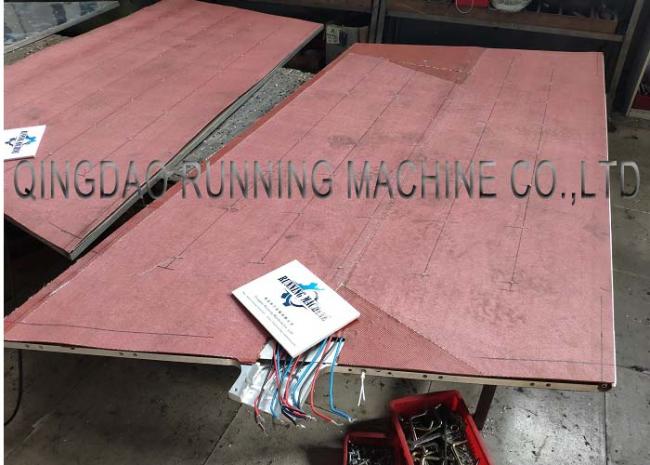

HEATING PLATEN
Custom
extruded
plank,
silicone
heating
elements
(up
to
180°C/356°F),
and
durable
composite
insulating
packaging
are
used
to
construct
a
flexible
platen
that
contours
to
belt
irregularities.
It
takes
15~25mins
rise
up
to
vulcanizing
temperature
(about
145°C).
The
flush
"quick
connect"
make
smooth
profile.
Recessed
power
connections
are
sealed
for
moisture
resistance.
COOLING
SYSTEM
(Option
Available)
Custom
"Extruded
Plank"
cooling
system
within
platens
is
made
by
several
cuprum
pipelines,
it
only
takes
about
20mins
to
drop
the
temperature
down
to
60°C.
PRESSURE
PUMP
Automatic
mute
pressure
pump
own
the
features
as
smaller
size,
lighter
weight
and
high
impact-resistance.
Compared
with
the
manual
pump,
the
operating
pressure
can
be
23kg/cm2
(2.3MPa).
EMBEDDED CONNECTOR
Upgrading to embedded water-cooled connector can effectively prevent damage caused by collision and prolong service life.

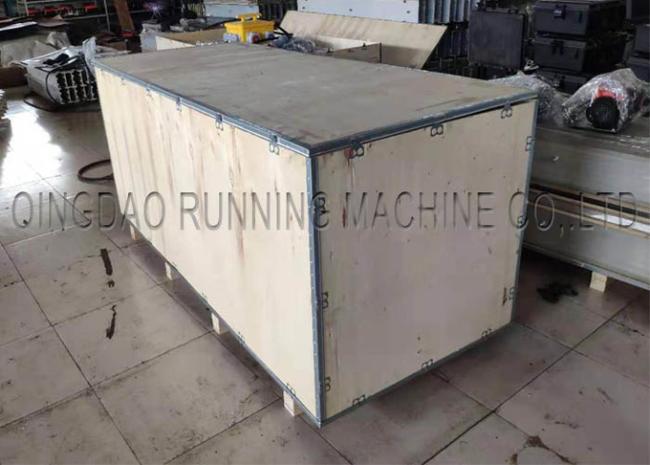

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tiger,we will use pe film for packing or pack it according to customers special request.
Our Services
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
