| Price | Negotiable |
| MOQ | 1 set |
| Delivery Time | 5--15days |
| Brand | RUNNING |
| Place of Origin | China |
| Certification | CE,SGS |
| Model Number | ZLJ |
| Packaging Details | FCL/LCL |
| Payment Terms | T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 50000sets/year |
| Place of Origin | China | Warranty | 24 months |
| Heating type | Electrical | Cooling type | Water Cooling |
| Packaging Details | FCL/LCL | HS Code | 84778000 |
| Material | Aluminum alloy | Model Number | ZLJ |
| Supply Ability | 50000sets/year | Certification | CE,SGS |
| Brand Name | RUNNING | Payment Terms | T/T, L/C, Western Union, MoneyGram |
| Key Selling Points | Long Service Life | Price | Negotiable |
| Delivery Time | 5--15days | Minimum Order Quantity | 1 set |
| Cooling time | in 15-30 mins | Application | conveyor belt hot vulcanizing joint |

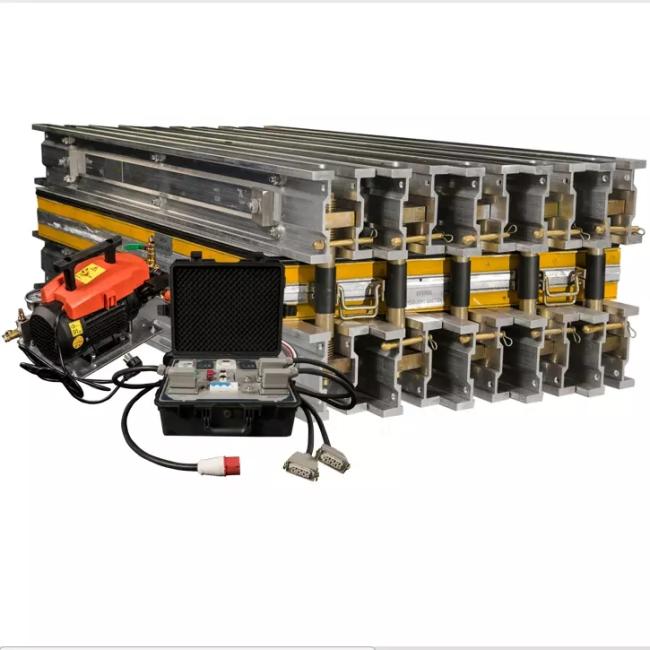

Water Cooling Conveyor Belt Jointing Machine , Rubber Vulcanizing Machine
Application
Portable type conveyor belt joint vulcanizing press is mainly applied to industries for splicing and repairing conveyor belts such as metallurgy, mine, power plant, port, dock, construction material cement, chemical industry, tobacco, and food automatic line field.
Specification of conveyor belt jointing machine
1.
Voltage:
220V
380V
415V
525V
660V
1140V
50HZ
60HZ(Customize
available
according
to
your
requirement)
2.
Quick
water
cooling
device:
15
minutes
From
145
ºCdown
to
80
ºCor
even
lower
3.
Cooling
source:
Water
or
Air
4.
Heating
source:
Electricity
5. Heating
time:
from
room
temperature
to
vulcanization
temperature
need
less
than
20
minutes
6. Heating
plate
surface
temperature
difference:
±
1
ºC
7.
The
temperature
adjustment
range:
0
~
200
ºC(custom)
8.
Vulcanization
pressure:
Max
2.5MPa.
9.
Curing
temperature:
0
~
99min
(according
to
the
thickness
of
the
belt
to
adjust),
Usually
10mm~25mins,
20mm~35mins
10.
Automatic
mute
pressure
pump
11.
Automatic
control
panel:
insulating
and
waterproof,
security
alarm,
Auto
power-off
when
reach
the
vulcanization
temperature.
Upgrading
explosion
proof
control
box
option
available.
Technical Parameters
| Model | Applied Width(mm) | Motor power | Dimension(LxWxH)(mm) | Weight(KG) |
| ZLJ-800x830 | 800 | 11.2 | 1280x830x630 | 650 |
| ZLJ-1000x830 | 1000 | 14.1 | 1480x830x630 | 700 |
| ZLJ-1200x830 | 1200 | 16.5 | 1680x830x710 | 900 |
| ZLJ-1400x830 | 1400 | 18.6 | 1930x830x760 | 1100 |
| ZLJ-1600x830 | 1600 | 21.1 | 2140x830x800 | 1320 |
| ZLJ-1800x830 | 1800 | 23.3 | 2300x830x850 | 1480 |
| ZLJ-2000x830 | 2000 | 25.6 | 2600x830x950 | 1860 |
Except the above models, we can design & make joint vulcanizer machine as your requirement, non-standard machines can be customized.
Our
Advantages
AUTOMATIC CONTROL BOX
With automatic temperature control, security alarm and automatically switch off the power. The control box can monitor the temperature of 3-5 different points on each heating platen at the same time to ensure the result of jointing.
PRESSURE SYSTEM
Signature RUNNING "Pressure Bag" uniform pressure system is lighter up to 4 times than the outdated pressure bag.
The pressure bag can reach full expansion in one time and ensure the uniform pressure up to 3.0MPa.
HEATING PLATEN
Custom
extruded
plank,
silicone
heating
elements
(up
to
180°C/356°F),
and
durable
composite
insulating
packaging
are
used
to
construct
a
flexible
platen
that
contours
to
belt
irregularities.
It
takes
15~25mins
rise
up
to
vulcanizing
temperature
(about
145°C).
The
flush
"quick
connect"
make
smooth
profile.
Recessed
power
connections
are
sealed
for
moisture
resistance.
COOLING
SYSTEM
(Option
Available)
Custom
"Extruded
Plank"
cooling
system
within
platens
is
made
by
several
cuprum
pipelines,
it
only
takes
about
20mins
to
drop
the
temperature
down
to
60°C.
PRESSURE
PUMP
Automatic
mute
pressure
pump
own
the
features
as
smaller
size,
lighter
weight
and
high
impact-resistance.
Compared
with
the
manual
pump,
the
operating
pressure
can
be
23kg/cm2
(2.3MPa).
EMBEDDED CONNECTOR
Upgrading to embedded water-cooled connector can effectively prevent damage caused by collision and prolong service life.
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tiger,we will use pe film for packing or pack it according to customers special request.
Our Services
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
