| Price | $12,500 ~ $14,000 /set |
| MOQ | 1 set |
| Delivery Time | 7 work days |
| Brand | RUNNING |
| Place of Origin | QINGDAO CHINA |
| Certification | CE |
| Model Number | ZLJ-1800*1000 |
| Packaging Details | Plywood case (Fumigation free) |
| Payment Terms | T/T, L/C |
| Supply Ability | 50 sets/month |
| Usage | conveyor belt jointing vulcanizing | Place of Origin | QINGDAO CHINA |
| Packaging Details | Plywood case (Fumigation free) | Model Number | ZLJ-1800*1000 |
| Supply Ability | 50 sets/month | Certification | CE |
| Jointing length | 1000mm | Brand Name | RUNNING |
| Payment Terms | T/T, L/C | Overall size | 2300*1000*850mm |
| Price | $12,500 ~ $14,000 /set | Delivery Time | 7 work days |
| Minimum Order Quantity | 1 set | Heating power | 25.2kw |
| Jointing width | 1800mm | Machine weight | about 1480kg |
1800mm Width Rubber Steel Cord Conveyor Belt Lightweight Jointing Vulcanizing Machine

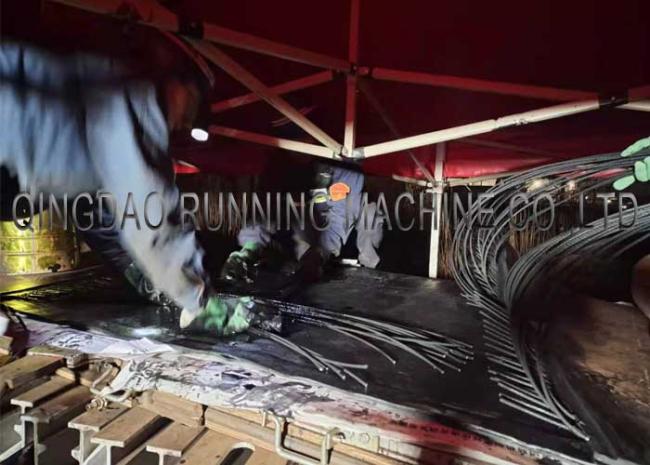

What is conveyor belt jointing vulcanizing?
Conveyor
belt
jointing
vulcanizing
is
the
process
of
joining
together
two
pieces
of
conveyor
belt.
Usually,
this
is
done
to
either
elongate
the
original
conveyor
belt
or
to
repair
a
torn
or
damaged
conveyor
belt.
There are several different types of vulcanized splices, including finger splice, wedge splice, stepped splice and overlap splice. And two types of vulcanizing processes: hot vulcanization and cold vulcanization.
Machine specification is as following, you can choose a type according to the conveyor belt width.
| Model |
Belt Width (mm) |
Power(kw) |
Dimensions (L*W*H mm) |
Weight(kg) | Single Piece Weight(kg) |
| ZLJ-650*830 | 650 | 9.5 | 1370*830*630 | 430 | 45 |
| ZLJ-650*1000 | 10.8 | 1370*1000*630 | 500 | 66 | |
| ZLJ-800*830 | 800 | 11.2 | 1520*830*630 | 535 | 70 |
| ZLJ-800*1000 | 13.5 | 1520*1000*630 | 575 | 79 | |
| ZLJ-1000*830 | 1000 | 14.1 | 1720*830*630 | 595 | 82 |
| ZLJ-1000*1000 | 15.7 | 1720*1000*630 | 620 | 95 | |
| ZLJ-1200*830 | 1200 | 16.5 | 1920*830*710 | 800 | 96 |
| ZLJ-1200*1000 | 17.2 | 1920*1000*710 | 870 | 113 | |
| ZLJ-1400*830 | 1400 | 18.6 | 1930*830*760 | 930 | 107 |
| ZLJ-1400*1000 | 20.7 | 2120*1000*760 | 1180 | 132 | |
| ZLJ-1600*830 | 1600 | 21.5 | 2320*830*800 | 1270 | 120 |
| ZLJ-1600*1000 | 22.3 | 2320*1000*800 | 1460 | 146 | |
| ZLJ-1800*830 | 1800 | 23.3 | 2520*830*850 | 1380 | 137 |
| ZLJ-1800*1000 | 25.6 | 2520*1000*850 | 1650 | 164 | |
| ZLJ-2000*830 | 2000 | 27.2 | 2720*830*950 | 1760 | 154 |
| ZLJ-2000*1000 | 30 | 2720*1000*950 | 1860 | 182 | |
| ZLJ-2200*830 | 2200 | 29.2 | 2920*830*950 | 1860 | 165 |
| ZLJ-2200*1000 | 34.1 | 2920*1000*950 | 1970 | 198 |
Features:
1.Machine
Maximum
size:
from
300MM-2000MM,Or
according
the
customer
2.Voltage:
220V
380V
415V
660V
50HZ;
3.Fast
Cooling
time:
15
minutes
(from
145
degrees
down
to
70
degrees
or
less);
4.Time
for
temperature
raise
(from
normal
temperature
to
vulcanizing
temperature)
no
more
than
25
minutes;
5.The
temperature
difference
of
sulfide
surface:
±2°c.
6.Temperature
adjustment
range:
0~300°c.
7.Vulcanizing
pressure:
0~2.5
MPa
(details
refer
to
users'
specifications
and
factory
markings);
8.Time
of
heat
preservation
for
vulcanizing
could
be
adjusted
according
to
thickness
of
the
rubber
belts;
9.
Splicing
length
of
rubber
conveyor
belt
for
vulcanizing
jointing
could
be
connected
together
by
single
or
several
pieces
if
necessary;
10.
rubber
conveyor
belt
as
well
as
tension
in
kilogram
required
for
vulcanizing
jointing
when
ordering
products.
11.
Users
could
order
spare
electric
pumps
additionally
according
to
the
requirements.

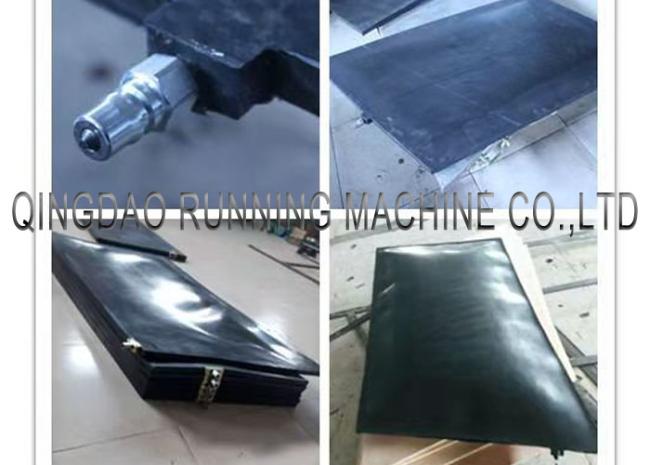

Our conveyor belt jointing vulcanizing machine use new designed water pressure bladder, which is made of rubber, for pressurizing. it has the advantages of more balanced pressure, better scalling, no rusting risk and lower leakage risk and longer service life.
Shipping package of conveyor belt jointing vulcanizing machine:
