Price	US$69-US$79
MOQ	1pcs
Delivery Time	1-3 working days
Brand	E-link
Place of Origin	China
Certification	ISO9001, CE, ROHS, FCC
Model Number	LNK-PSE951G-SFP Series
Packaging Details	HDMI Fiber PoE Injector Standard Carton Packaging
Payment Terms	T/T,Western Union,MoneyGram,PayPal
Supply Ability	1000/Month

Product Details

Data Speed:	10/100/1000Mbps	Place of Origin	China
Packaging Details	HDMI Fiber PoE Injector Standard Carton Packaging	Model Number	LNK-PSE951G-SFP Series
Supply Ability	1000/Month	Common mode surge protection(10/700us):	4KV
Certification	ISO9001, CE, ROHS, FCC	Size (LxWxH):	203mm X 130mm X 41mm
Brand Name	E-link	Payment Terms	T/T,Western Union,MoneyGram,PayPal
Output:	55VDC 1750mA	Storage Temperature:	-40℃ to 85℃
Price	US$69-US$79	Delivery Time	1-3 working days
Minimum Order Quantity	1pcs	Input :	100-240Vac 2.0A 50/60Hz

95W SFP PoE Injector

Model : LNK-PSE951G-SFP Series

Overview

The LNK-PSE951G-SFP is a professional-grade 95W SFP PoE Injector—a single-port midspan

integrated with an SFP fiber connection port, engineered for high-power device deployment and

long-distance data transmission. As a dedicated 95W SFP PoE Injector, it delivers stable power

output of 55Vdc at 1.75A (supporting up to 95W), transmitted via full-4pairs Ethernet cables, and

is equipped with 4KV (10/700us) surge protection to withstand electrical interference in complex

environments.

This 95W SFP PoE Injector supports 10/100Base-T and Gigabit adaptive data rates, with seamless

data interoperability among its LAN port, PoE output port, and SFP fiber port—functioning like a

compact switch to bridge copper and fiber networks. It is specifically optimized for 95W high-power

PoE-powered devices (PDs), it maintains broad compatibility with IEEE 802.3af/at (PoE/PoE+) and

PoE++ compliant terminals, with built-in intelligent PD detection and classification: it only supplies

power after identifying standard-compliant devices, eliminating risks of damage to non-PoE equipment.

Designed for versatility, the 95W SFP PoE Injector operates with a wide AC input range of 100-240Vac

and performs stably under full load at temperatures from -40℃ to 65℃—suitable for harsh industrial or

outdoor scenarios when paired with an optional waterproof case. It supports reliable power-data co-

transmission up to 100 meters via Cat5e/Cat6 cables, leveraging existing wiring to reduce deployment costs,

while the SFP port extends network coverage further via fiber optic links (ideal for cross-building or long-

distance deployments).

Equipped with robust protective mechanisms and wide environmental adaptability, the 95W SFP PoE

Injector excels in complex power situations—such as industrial parks, large-scale surveillance systems,

and outdoor wireless coverage projects. By combining 95W high-power output, SFP fiber expansion

capability, and multi-standard compatibility, it offers a cost-effective, reliable solution for integrating high-

power devices into hybrid copper-fiber networks.

Features

Gigabit SFP port for Fiber
LNK-PSE951G-SFP is a small switch. Data output through PoE port and SFP port simultaneously, that is to say, besides power device near, LNK-PSE951G-SFP also could transmit data to remote equipment. LAN, Fiber and PoE are data intercommunicating.
High PoE 95W output, active PoE Injector
Output voltage is rated, 55Vdc. With detection chip inside, before powering, there has a detect process.
4KV surge protection on PoE port
To protect indoor devices and inner components from surge damage, we design 4KV (10/700μs) on PoE port.
AC Port: 2KV(1.2/50us) surge protection
Wide Working temperature -40℃ to 65℃
LNK-PSE951G-SFP design industrial level working temperature -40℃ to 65℃, to meet harsh conditions requirements.

Technical Indexes

Parameter	Specifications
Standard	IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-Tx Fast Ethernet IEEE802.3ab 1000Base-T Gigabit Ethernet Support terminal equipment with IEEE802.3af/at RoHS Compliance WEEE Compliance
Input & Output	Input : 100-240Vac 2.0A 50/60Hz Output: 55VDC 1750mA Power Pins: 4/5(+), 7/8(-) & 3/6(+),1/2(-) Data Speed: 10/100/1000Mbps
Working Environment	Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters
AC Surge Protection	1.0KV (5P/5N) L-N 1.2/50 (8/20) Tr/Th us 2.0KV (5P/5N) L-PE 1.2/50 (8/20) Tr/Th us N -PE
PoE Surge Protection	Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 4KV Differential mode surge protection (10/700us): 1.5KV
Mechanical Characteristics	Case: Metal
	Color: Black
	Mounting: Wall-mounted
	IP Rated: IP20
	Size (LxWxH): 203mm X 130mm X 41mm
	Weight: 1070g
Safety Approvals	CE, FCC
EMI	FCC CFR47 Part 15, EN55024, EN55032
EMS	IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air) IEC61000-4-3(RS) 10V/m(80MHz~2GHz) IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM IEC61000-4-6(CS) 10V(150kHz~80MHz)
Immunity	IEC60068-2-6(Vibration) IEC60068-2-27(Impact) IEC60068-2-32(Free Fall)
LED Indicator	Power Indicator: Green PoE Load Indicator: Green SFP Fiber Indicator: Green LAN Data Indicator: Yellow

Ordering information

Model	Description
LNK-PSE951G-SFP	95W SFP PoE Injector: 55Vdc/1.75A/1000Mbps/(4,5+,7,8-) and (3,6+,1,2-)/Surge Protection/Active

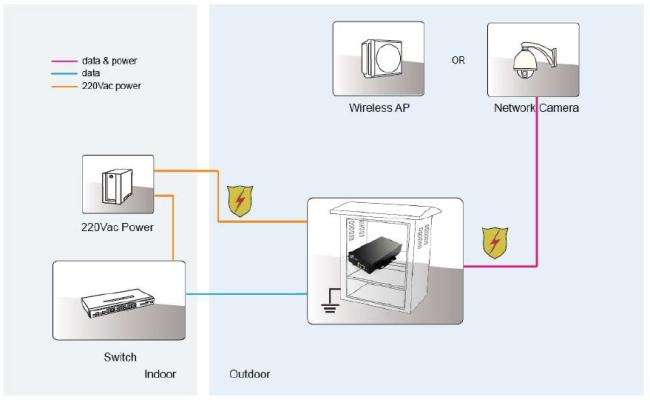

Application
