| Price | Negotiation |
| MOQ | 1 pcs |
| Delivery Time | 5-12 working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | ROHS,FCC,CE |
| Model Number | LNK-INJ302 |
| Packaging Details | PoE Injector Adapter Standard Export Package |
| Payment Terms | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability | 1000 pcs/month |
| Connector | 4x RJ45 | Place of Origin | China |
| Keyword | Power Over Ethernet Injector | Input Power | 12~48VDC |
| Packaging Details | PoE Injector Adapter Standard Export Package | Model Number | LNK-INJ302 |
| Casing | Aluminum Case | Supply Ability | 1000 pcs/month |
| Certification | ROHS,FCC,CE | Weight | 0.26Kg |
| Brand Name | E-link | Payment Terms | L/C, T/T, Western Union, MoneyGram, Paypal |
| Price | Negotiation | Delivery Time | 5-12 working days |
| Minimum Order Quantity | 1 pcs | Power | 60W Max per port |
PoE Injector Adapter Industrial 2 Ports Gigabit DIN Rail 802.3at PoE Power Supply
Power over Ethernet Injector Advantages

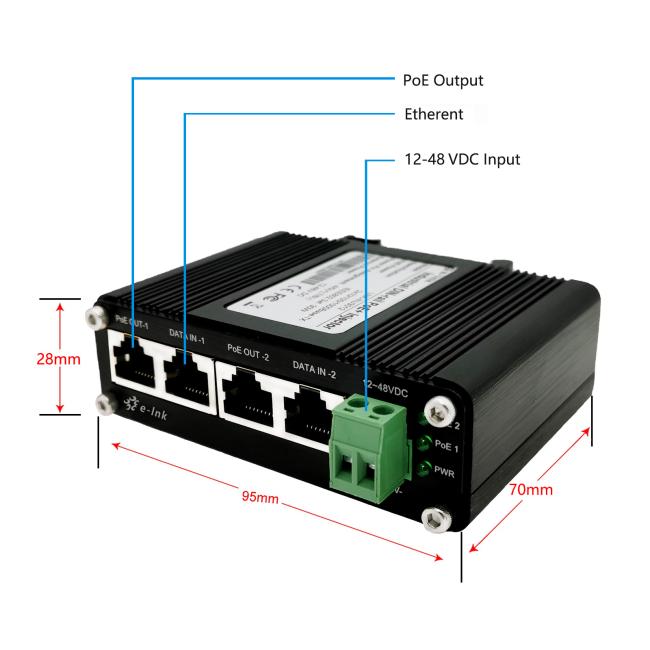

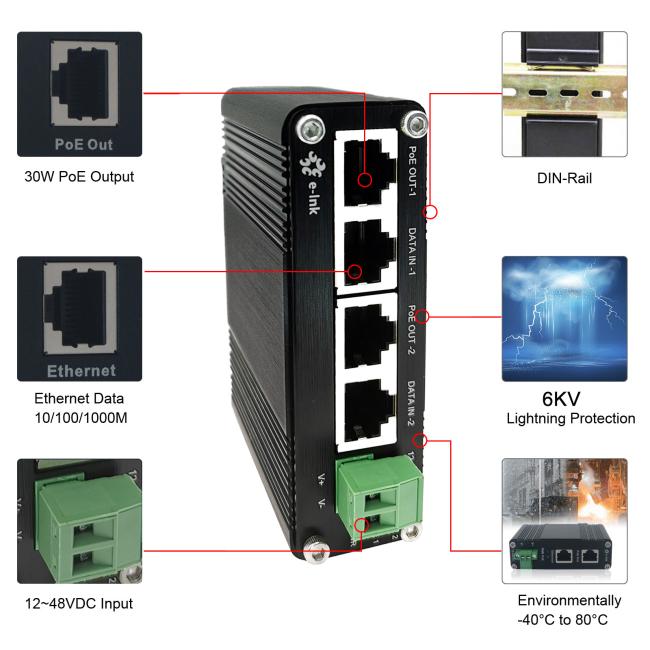

► 2 RJ45 Ethernet Data Input Port + 2 RJ45Power Over Ethernet Output Port (Data +Power)
► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment
► Max 60W PoE at one port, total POE power less than 60W
► Extensive LED indicators for PoE diagnostics
High Power PoE Injector Technical Indexes
|
Standards: |
IEEE802.3af Power over Ethernet |
|
IEEE802.3at Power over Ethernet |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
10/100/1000Base-T: Cat5 or above |
|
Maximum Distance: |
Cat5 UTP up to 100m |
|
Connector: |
4x RJ45 |
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Input Power: |
12~48VDC (Terminal Block) |
|
Power Consumption: |
70W Max. |
Power Sourcing Equipment Overview
The LNK-INJ302 product is a Hardened 2 ports Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at. LNK-INJ302 provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications.
PoE Device Ordering Information
|
Model |
Description |
|
LNK-INJ302 |
12~48VDC Power Input Industrial 2 ports Gigabit PoE+ Injector |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► Power Supply is to be purchased separately. |
