Price	US$8-US$15
MOQ	1pcs
Delivery Time	1-3 working days
Brand	E-link
Place of Origin	China
Certification	ISO9001, CE, ROHS, FCC
Model Number	LNK-POE-24-24W series
Packaging Details	HDMI Fiber PoE Injector Standard Carton Packaging
Payment Terms	T/T,Western Union,MoneyGram,PayPal
Supply Ability	1000/Month

Product Details

Place of Origin	China	Packaging Details	HDMI Fiber PoE Injector Standard Carton Packaging
Port	2 Ethernet front-end ports	Model Number	LNK-POE-24-24W series
Supply Ability	1000/Month	Certification	ISO9001, CE, ROHS, FCC
Transmission rate	LNK-POE-24-24W: 10/100Mbps LNK-POE-24-24W-G: 10/100/1000Mbps	Brand Name	E-link
Payment Terms	T/T,Western Union,MoneyGram,PayPal	Operating Humidity	90% ,No condensation;
Price	US$8-US$15	Delivery Time	1-3 working days
Minimum Order Quantity	1pcs	LED indicator	Every port : rate, link indicator
Output Voltage	24VDC @ 1.0A	Storage Temperature	-20~70℃

24VDC 1.0A 24W POE Adapter Injector

Model : LNK-POE-24-24W series

Overview

The LNK-POE-24-24W & LNK-POE-24-24W-G series is a dedicated 24VDC 1.0A 24W POE Adapter

Injector—an integrated Power over Ethernet device that combines voltage adaptation and power injection

functions. As a specialized 24VDC 1.0A 24W POE Adapter Injector, it delivers precise electrical parameters:

24VDC stable output voltage, 1.0A rated current, and 24W total power (calculated as 24VDC×1.0A), perfectly

matching the power demands of low-to-mid power network terminals.

This 24VDC 1.0A 24W POE Adapter Injector is optimized to supply operational power to a range of devices,

including small-to-medium surveillance cameras (such as fixed dome cameras with infrared night vision, entry-

level bullet cameras), and wireless LAN equipment like WiFi 6 entry-level access points, compact network

bridges, and mini routers for small offices. Its core advantage lies in the "adapter + injector" dual-design: it first

stabilizes input power to the standard 24VDC 1.0A specification, then injects this current into the Ethernet cable

—eliminating the need for direct connection of a separate power supply to terminal devices.

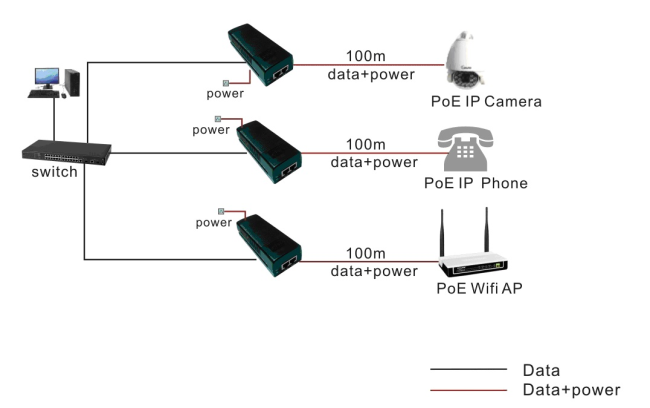

By merging 24VDC 1.0A power and network data onto a single Cat5e/Cat6 Ethernet cable, the 24VDC 1.0A 24W

POE Adapter Injector drastically reduces the need for extra power lines, cutting installation material costs and on-

site manpower by 30% or more. It supports reliable power-data co-transmission up to 100 meters, ensuring stable

operation of connected devices even in remote corners of indoor spaces. The 24VDC low-voltage output enhances

deployment safety, avoiding risks associated with high-voltage wiring—ideal for homes, small retail stores, and office

cubicle networks.

Designed for user convenience, the 24VDC 1.0A 24W POE Adapter Injector features plug-and-play functionality with

no complex software configuration required: simply connect the uplink port to a non-PoE switch, the downlink port to

the target device, and power on the unit. Built-in overcurrent protection prevents damage from device mismatches,

while its compact form factor fits easily in wall-mounted enclosures or small network cabinets. Compatible with all PoE-

compliant low-to-mid power terminals within the 24W range, it offers a cost-effective, reliable solution for small-scale

security monitoring and entry-level wireless network deployments.

Features

► Up to 24W of PoE Power

► Supports 10/100M or 10/100/1000M LAN environment

► Power over Ethernet (PoE) Injector delivers a PoE signal for distances of up to 100 meters (328 ft.)

► 1 x 10/100Mbps or 10/100/1000Mbps Auto-MDIX Data In port

► 1 x 10/100Mbps or 10/100/1000Mbps PoE Auto-MDIX Data Out port

► Easily install a PoE device where a power outlet is not available

► Safe and Reliable Power to WLAN Access Points

► Automatic Detection and Protection of Non–standard Ethernet Terminals

Technical Indexes

Ethernet power supply (POE)
POE characteristic	*PoE Power(max):24W
POE characteristic	*one port support POE power supply
Power supply way	*Spare Part to 4/5(+), 7/8(-)
Power supply way	*Data Part to 1/2(+), 3/6(-)
Port and Performance
Port	2 Ethernet front-end ports
Port parameters	*Electrical interface : RJ45
Port parameters	*Cable type :5 kinds of shielded twisted-pair cable(UTP) or higher level
Transmission rate	LNK-POE-24-24W: 10/100Mbps LNK-POE-24-24W-G: 10/100/1000Mbps
Protocol standard	*IEEE802.3 i 10 BASE-T;
	*IEEE802.3 u 100 BASE-TX;
	*IEEE 802.3ab Gigabit Ethernet
	*IEEE802.3 x Flow Control;
LED indicator	Every port : rate, link indicator
Environment and Specification
Environment condition	*Operating Temperature :0~55℃; Storage Temperature : -20~70℃
Environment condition	*Operating Humidity : 90% ,No condensation; Storage Humidity :95%,No condensation
Safety standard	CE/LVD
Other Characteristic
Input Voltage	90-260VAC @ 47-63 Hz
Output Voltage	24VDC @ 1.0A
Electromagnetic compatibility	*CE Class B
	*FCC Part 15 , Class B
	*VCCI Class B
	*C-Tick
