24VDC 0.5A 12W POE Adapter Injector Up to 12W of PoE Power

Price	US$7-US$14
MOQ	1pcs
Delivery Time	1-3 working days
Brand	E-link
Place of Origin	China
Certification	ISO9001, CE, ROHS, FCC
Model Number	LNK-POE-24-12W series
Packaging Details	HDMI Fiber PoE Injector Standard Carton Packaging
Payment Terms	T/T,Western Union,MoneyGram,PayPal
Supply Ability	1000/Month

Product Details

Product Specification

Place of Origin	China	Packaging Details	HDMI Fiber PoE Injector Standard Carton Packaging
Input Voltage	90-260VAC @ 47-63 Hz	Model Number	LNK-POE-24-12W series
Supply Ability	1000/Month	Certification	ISO9001, CE, ROHS, FCC
Safety standard	CE/LVD	Brand Name	E-link
Payment Terms	T/T,Western Union,MoneyGram,PayPal	Price	US$7-US$14
Delivery Time	1-3 working days	PoE Power(max):	12W
Port	2 Ethernet front-end ports	Minimum Order Quantity	1pcs
LED indicator	Every port : rate, link indicator	Output Voltage	24VDC @ 0.5A

Product Description

24VDC 0.5A 12W POE Adapter Injector

Model : LNK-POE-24-12W series

Overview

The LNK-POE-24-12W & LNK-POE-24-12W-G series is a dedicated 24VDC 0.5A 12W POE Adapter

Injector—a dual-function Power over Ethernet device integrating voltage adaptation and power injection.

As a specialized 24VDC 0.5A 12W POE Adapter Injector, it delivers precise output parameters: 24VDC

stable voltage, 0.5A rated current, and 12W total power (calculated as 24VDC×0.5A), perfectly matching

the power demands of low-to-mid power network terminal equipment.

This 24VDC 0.5A 12W POE Adapter Injector is optimized to supply operational power to small-scale

surveillance devices (such as fixed dome cameras, bullet cameras for home/retail use) and entry-level

wireless LAN equipment, including basic WiFi 5 access points, compact network bridges, and mini routers.

Its core advantage lies in the "adapter + injector" integrated design: it first stabilizes input power to 24VDC

0.5A, then injects this current into the Ethernet network cable—eliminating the need to directly connect a

separate power supply to the wireless LAN or surveillance device.

By combining 24VDC 0.5A power and network data on a single Cat5e/Cat6 Ethernet cable, the 24VDC 0.5A

12W POE Adapter Injector drastically reduces the need for extra power lines, cutting down both material costs

and on-site installation manpower by 30% or more. It supports reliable power-data co-transmission up to 100

meters, ensuring stable operation of connected devices even in remote corners of small spaces. The 24VDC

low-voltage output enhances deployment safety, avoiding risks associated with high-voltage power lines—ideal

for indoor environments like homes, small offices, and convenience stores.

Designed for plug-and-play convenience, the 24VDC 0.5A 12W POE Adapter Injector requires no complex

configuration: simply connect the uplink port to a non-PoE switch, the downlink port to the target device, and

power on the adapter injector. Built-in overcurrent protection prevents damage from device mismatches, while

its compact form factor fits easily in wall-mounted enclosures or small network cabinets. Compatible with all

PoE-compliant low-power terminals within the 12W range, it becomes a cost-effective, reliable solution for

small-scale security monitoring, home smart networks, and entry-level enterprise wireless coverage.

Features

► Up to 12W of PoE Power

► Supports 10/100M or 10/100/1000M LAN environment

► Power over Ethernet (PoE) Injector delivers a PoE signal for distances of up to 100 meters (328 ft.)

► 1 x 10/100Mbps or 10/100/1000Mbps Auto-MDIX Data In port

► 1 x 10/100Mbps or 10/100/1000Mbps PoE Auto-MDIX Data Out port

► Easily install a PoE device where a power outlet is not available

► Safe and Reliable Power to WLAN Access Points

► Automatic Detection and Protection of Non–standard Ethernet Terminals

Technical Indexes

Ethernet power supply (POE)
POE characteristic	*PoE Power(max):12W
POE characteristic	*one port support POE power supply
Power supply way	*Spare Part to 4/5(+), 7/8(-)
Power supply way	*Data Part to 1/2(+), 3/6(-)
Port and Performance
Port	2 Ethernet front-end ports
Port parameters	*Electrical interface : RJ45
Port parameters	*Cable type :5 kinds of shielded twisted-pair cable(UTP) or higher level
Transmission rate	LNK-POE-24-12W: 10/100Mbps LNK-POE-24-12W-G: 10/100/1000Mbps
Protocol standard	*IEEE802.3 i 10 BASE-T;
	*IEEE802.3 u 100 BASE-TX;
	*IEEE 802.3ab Gigabit Ethernet
	*IEEE802.3 x Flow Control;
LED indicator	Every port : rate, link indicator
Environment and Specification
Environment condition	*Operating Temperature :0~55℃; Storage Temperature : -20~70℃
Environment condition	*Operating Humidity : 90% ,No condensation; Storage Humidity :95%,No condensation
Safety standard	CE/LVD
Other Characteristic
Input Voltage	90-260VAC @ 47-63 Hz
Output Voltage	24VDC @ 0.5A
Electromagnetic compatibility	*CE Class B
	*FCC Part 15 , Class B
	*VCCI Class B
	*C-Tick

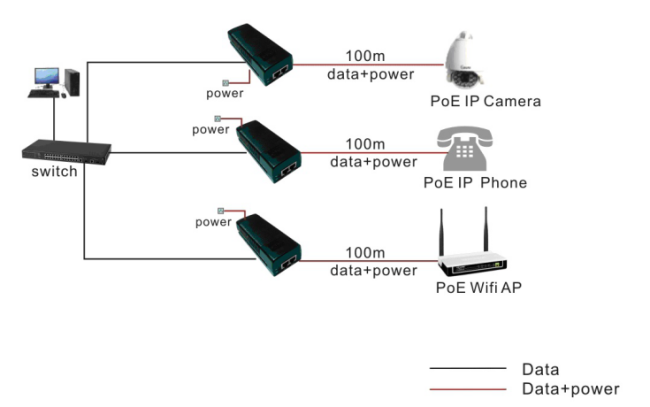

Application

24VDC 0.5A 12W POE Adapter Injector Up to 12W of PoE Power
