95W Single Port POE Injector Supports 10/100M or 10/100/1000M LAN environment

Price	US$49-US$65
MOQ	1pcs
Delivery Time	1-3 working days
Brand	E-link
Place of Origin	China
Certification	ISO9001, CE, ROHS, FCC
Model Number	LNK-POE-48-95W series
Packaging Details	HDMI Fiber PoE Injector Standard Carton Packaging
Payment Terms	T/T,Western Union,MoneyGram,PayPal
Supply Ability	1000/Month

Product Details

Product Specification

Place of Origin	China	Packaging Details	HDMI Fiber PoE Injector Standard Carton Packaging
Working Speed:	10/100Mbps	Dimensions	LxWxH: 80 x 76 x 25mm
MTBF:	190,000 hours (about 21 years）	Model Number	LNK-POE-48-95W series
Supply Ability	1000/Month	Certification	ISO9001, CE, ROHS, FCC
Brand Name	E-link	Payment Terms	T/T,Western Union,MoneyGram,PayPal
PoE output voltage:	48V~57V	Price	US$49-US$65
Delivery Time	1-3 working days	Minimum Order Quantity	1pcs
Connector Type	2x 10/100M or 10/100/1000M copper cable RJ45 ports	Network Port Protection:	meet the IEC61000-4-2(ESD)

Product Description

95W Single Port POE Injector

Model : LNK-POE-48-95W series

Overview

The 95W Single Port POE Injector is a high-power PoE solution independently developed by E-link,

specifically engineered to address the power demands of energy-intensive network devices. As a

dedicated 95W Single Port POE Injector, it supports the LT PoE++ high-power standard—far exceeding

the power limits of traditional PoE solutions—and maintains backward compatibility with IEEE 802.3af

(15.4W) and IEEE 802.3at (30W) PoE standards, ensuring seamless integration with both legacy and

modern PoE-powered devices (PDs).

This 95W Single Port POE Injector delivers a maximum output power of 95W, with a total power rating

of 100W, providing ample power reserve for stable operation of high-load equipment. It is equipped with

2x standard RJ45 network ports, featuring clear functional division for simplified network topology: one

port serves as the uplink interface, designed to connect to upper-layer network devices such as Ethernet

switches or routers to access data signals; the other functions as a integrated downlink port, combining

PoE power output and network data transmission in one, eliminating the need for separate power and

data cables.

A core advantage of the 95W Single Port POE Injector lies in its targeted support for high-power devices:

it is particularly optimized for scenarios requiring robust power supply, such as high-definition network dome

cameras with AI analytics, PTZ cameras with motorized zoom and infrared night vision, high-bandwidth WiFi

6E access points, and industrial-grade IP gateways. Built-in intelligent protection mechanisms (overcurrent,

overload, and short-circuit protection) further safeguard both the injector and connected devices, preventing

damage from power fluctuations or equipment mismatches.

Designed for practical deployment, the 95W Single Port POE Injector supports plug-and-play operation with

no complex software configuration required. It leverages standard Cat5e/Cat6 Ethernet cables to transmit both

power and data, extending reliable coverage up to 100 meters—ideal for remote installation sites where independent

power wiring is difficult. By combining 95W high-power output, single-port precision design, and broad standard

compatibility, it becomes a cost-effective and reliable solution for powering high-performance IP devices in security,

enterprise, and industrial networks.

Features

► Up to 95W of PoE Power over 4-pairs

► PoH, IEEE802.3at and 802.3af compliant

► Supports 10/100M or 10/100/1000M LAN environment

► Power over Ethernet (PoE) Injector delivers a PoE signal for distances of up to 100 meters (328 ft.)

► 1 x 10/100Mbps or 10/100/1000Mbps Auto-MDIX Data In port

► 1 x 10/100Mbps or 10/100/1000Mbps PoE Auto-MDIX Data Out port

Technical Indexes

Product Name	95W Single Port PoE Injector
Product Model	LNK-POE-48-95W & LNK-POE-48-95W-G
Connector Type	2x 10/100M or 10/100/1000M copper cable RJ45 ports
PoE Power Supply Type	PoE power supply is four line pairs of twisted pair, the positive power supply side is 1/2 or 4/5 line pair, the negative power supply side is 3/6 or 7/8 line pair
Network Medium	10BASE-T: 5 class UTP(≤100m)
	100BASE-TX: 5 class or more UTP(≤100m)
	1000BASE-TX: 5 class or more UTP(≤100m)
Temperature Resistance	≤80°C
Performance Specifications	PoE output voltage: 48V~57V
	Working Speed:10/100Mbps
	Network Port Protection: meet the IEC61000-4-2(ESD)
	MTBF: 190,000 hours (about 21 years)
Network Protocols and Standards	IEEE 802.3i 10BASET
	IEEE 802.3u 100BASETX
	IEEE 802.3x Flow Control
	IEEE 802.1ab 1000BASET
	IEEE 802.1af DTE Power via MDI
	Support LT PoE++ high power PoE standard, compatible with IEEE 802.3af/ IEEE 802.3at standard
LEDs Indicator	PoE working status
Power	The total power: 100W
	Each Port Output Power: 95W
	Voltage: 48V~57V
Dimensions	LxWxH: 80 x 76 x 25mm
Working Environment	Working Temperature: 0°～ 55°C, Storage Temperature: -20°～ 75°C
Working Environment	Working Humidity: 10% ～ 90%, non-condensing, Storage humidity:10% ～ 95%,non-condensing
Quality Specification	CE mark, commercial, FCC Part 15 Class B, RoHS
Quality Specification	1 year warranty

Ordering Information

Model	Description
LNK-POE-48-95W	10/100M 95W Single Port PoE Injector
LNK-POE-48-95W-G	10/100/1000M 95W Single Port PoE Injector

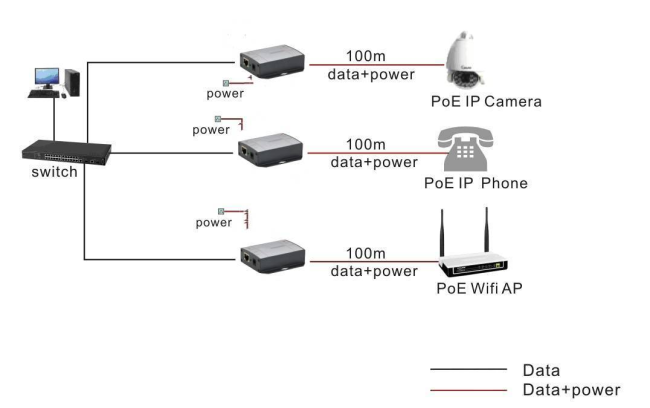

Application

95W Single Port POE Injector Supports 10/100M or 10/100/1000M LAN environment
