| Price | US$5.9 -US$10 |
| MOQ | 1pcs |
| Delivery Time | 1-3 working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | ISO9001, CE, ROHS, FCC |
| Model Number | LNK-PSE2424G |
| Packaging Details | HDMI Fiber PoE Injector Standard Carton Packaging |
| Payment Terms | T/T,Western Union,MoneyGram,PayPal |
| Supply Ability | 1000/Month |
| Place of Origin | China | Packaging Details | HDMI Fiber PoE Injector Standard Carton Packaging |
| Cabling: | 10/100/1000Base-T: Cat5 or above | Model Number | LNK-PSE2424G |
| Maximum Distance: | PoE (24W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft) | Supply Ability | 1000/Month |
| Certification | ISO9001, CE, ROHS, FCC | Brand Name | E-link |
| Payment Terms | T/T,Western Union,MoneyGram,PayPal | Storage Temperature: | -20°C to 70°C (-4°F to 158°F) |
| Dimensions (W×D×H): | 84 x 43 x 31mm | Price | US$5.9 -US$10 |
| Delivery Time | 1-3 working days | Minimum Order Quantity | 1pcs |
| Input Voltage Range: | 90-260VAC @ 47-63Hz. | Forward Filter Rate: | 1,488,000pps (1000Mbps) |
Model : LNK-PSE2424G
Overview
Features
► Output Voltage: 24VDC @ 0.5A
► Storage Temperature: -20C to +70 deg C
► Operating Humidity: 5% to 95% non-condensing
► Input Voltage: 90-260VAC @ 47-63Hz
► Input Current: 0.3A @ 120VAC, 0.2A @230VAC
► Efficiency: 70+%
► Output Ripple: 1% Max
► Switching Frequency: 200kHz
► Line Regulation: +/- 0.5%
► Load Regulation: +/- 1%
► Operating Temperature: -10C to +50 deg C
► Remotely power Equipment Through CAT 5/6 Cable up to 100m (328ft).
► Short Circuit, Over Current and Over Voltage Protection.
Technical Indexes
|
Ethernet |
|
|
Standards: |
IEEE 802.3 10Base-T Ethernet |
|
IEEE 802.3u 100Base-TX Fast Ethernet |
|
|
IEEE 802.3ab 1000Base-T Gigabit Ethernet |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
10/100/1000Base-T: Cat5 or above |
|
Maximum Distance: |
PoE (24W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft) |
|
Connector: |
LAN: 1 x RJ-45 STP, “Data” Input Port POE: 1 x RJ-45 STP, “Data + Power” Output Port AC Connector: 1 x AC Input power socket, IEC-60320-C15 |
|
Environmental |
|
|
Operating Temperature: |
-10°C to 50°C (14°F to 122°F) |
|
Storage Temperature: |
-20°C to 70°C (-4°F to 158°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Voltage Range: |
90-260VAC @ 47-63Hz. |
|
Output Voltage: |
DC 24V |
|
Power Consumption: |
24 watts max. |
|
PoE (Power over Ethernet) |
|
|
Port: |
RJ45 |
|
Power Pin Assignment |
Data provide over pairs 1/2(+) and 3/6(-) Power over spare pairs 4/5(+) and 7/8(-) |
|
PoE Power Output |
DC 24V/24-watt PoE via 2-pairs |
|
LED Indicators |
|
|
Power: |
Power Status |
|
PoE: |
PoE Status |
|
Dimensions (W×D×H): |
84 x 43 x 31mm |
|
Weight: |
0.25Kg |
|
Casing: |
Plastic Case |
|
Mounting Options: |
Desktop |
|
Regulatory Approvals |
|
|
ISO9001 |
|
Ordering Information
|
Model |
Description |
|
LNK-PSE2424G |
10/100/1000Mbps 24V 24W POE Injector with Power Cord |

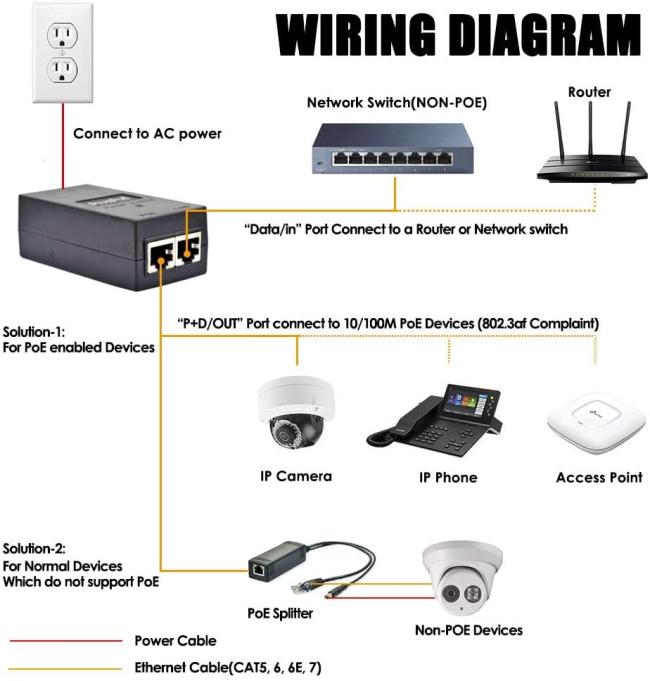

Application
