10/100/1000Mbps 60W Ultra POE Injector Compliant with Limited Power Source (LPS)

Price	US$40-US$52
MOQ	1pcs
Delivery Time	1-3 working days
Brand	E-link
Place of Origin	China
Certification	ISO9001, CE, ROHS, FCC
Model Number	LNK-POE600
Packaging Details	HDMI Fiber PoE Injector Standard Carton Packaging
Payment Terms	T/T,Western Union,MoneyGram,PayPal
Supply Ability	1000/Month

Product Details

Product Specification

Output Voltage:	DC 50-57V, 1.2A	Place of Origin	China
Power Consumption:	60 watts max.	Cabling	10/100/1000Base-T: Cat5 or above
Packaging Details	HDMI Fiber PoE Injector Standard Carton Packaging	Model Number	LNK-POE600
Supply Ability	1000/Month	Certification	ISO9001, CE, ROHS, FCC
Brand Name	E-link	Payment Terms	T/T,Western Union,MoneyGram,PayPal
Storage Temperature:	-20°C to 70°C (-4°F to 158°F)	Dimensions (W×D×H):	145 x 58 x 39mm
Price	US$40-US$52	Delivery Time	1-3 working days
Minimum Order Quantity	1pcs	Forward Filter Rate:	1,488,000pps (1000Mbps)

Product Description

10/100/1000Mbps 60W Ultra POE Injector

Model : LNK-POE600

Overview

The LNK-POE600 is a high-performance 10/100/1000Mbps 60W Ultra POE Injector—an IEEE 802.3af/at

dual-certified midspan engineered for long-distance power delivery, gigabit-speed network transmission,

and robust ultra-high PoE output. As a dedicated 10/100/1000Mbps 60W Ultra POE Injector, it supports

10/100/1000Mbps adaptive Ethernet protocols, ensuring seamless integration with modern high-bandwidth

infrastructures while delivering 60W of stable power.

This 10/100/1000Mbps 60W Ultra POE Injector features a single indoor port design, capable of supplying

a maximum output power of 60W—far exceeding the 30W limit of standard PoE+ (IEEE 802.3at) and addressing

the high-power demands of energy-intensive terminal devices. It is ideally suited for powering 802.11ax/b/g/n/ac

high-performance wireless access points, pan-tilt-zoom (PTZ) cameras with infrared night vision and AI analytics,

4K+ dome IP cameras, IP videophones with multi-screen displays, industrial thin clients, and other high-power

Ethernet end terminals that require up to 60W of continuous power.

A core advantage of the 10/100/1000Mbps 60W Ultra POE Injector lies in its broad compatibility and reliable

safety: it fully supports IEEE 802.3af/at powered devices (PDs) and maintains backward compatibility with all

IEEE 802.3af/at-compliant terminals, eliminating risks of device damage from power mismatches. Built-in

overcurrent, overvoltage, and short-circuit protection mechanisms further enhance deployment security,

making it suitable for 24/7 long-term operation. Its plug-and-play installation requires no complex software

configuration—simply connect the injector to a non-PoE gigabit switch (via the 10/100/1000Mbps data port)

and an AC power source, then link the output port to the target device via standard Cat.5e/6 UTP cable.

Leveraging existing Ethernet cabling to transmit both gigabit data and 60W power simultaneously, this 10/100/

1000Mbps 60W Ultra POE Injector avoids the need for separate power wiring, drastically reducing deployment

costs and manpower. It supports long-distance power-data co-transmission up to 100 meters, addressing the

challenge of powering remote high-power devices in scenarios like medium-sized security surveillance systems,

enterprise-grade wireless coverage, and smart retail deployments. With its 10/100/1000Mbps adaptive transmission,

60W ultra-power output, and IEEE standard compliance, it offers a cost-effective, future-proof solution for upgrading

non-PoE networks to support high-performance power-hungry devices.

Features

► Up to 60W of PoE Power

► Compliant with IEEE802.3af/at Standard

► Support 10/100/1000Base-T

► Compliant with Limited Power Source (LPS)

► High Efficiency > 85%

► Low No Load Power Consumption < 0.5W

► Provide 2 LED indicators include Power LED(Green) and PoE LED(Orange)

► Over-Voltage/Load/Temperature & Short Circuit protections

► Plug & Play, no configuration required

► Safe and Reliable Power to WLAN Access Points

► Automatic Detection and Protection of Non-standard Ethernet Terminals

► Injects 56V DC through a CAT 5 cable, use all 4 pairs into remote devices such as wireless AP, IP phone, web camera and other functions

Technical Indexes

Ethernet
Standards:	IEEE 802.3 10Base-T Ethernet
	IEEE 802.3u 100Base-TX Fast Ethernet
	IEEE 802.3ab 1000Base-T Gigabit Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	10/100/1000Base-T: Cat5 or above
Maximum Distance:	Ultra PoE (60W): 4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft) 802.3af / at PoE (15W / 30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft)
Connector:	LAN: 1 x RJ-45 STP, “Data” Input Port POE: 1 x RJ-45 STP, “Data + Power” Output Port AC Connector: 1 x AC Input power socket, IEC-60320 C13
Environmental
Operating Temperature:	-10°C to 50°C (14°F to 122°F)
Storage Temperature:	-20°C to 70°C (-4°F to 158°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Voltage Range:	100-240V AC @50/60Hz, 1.5A max.
Output Voltage:	DC 50-57V, 1.2A
Power Consumption:	60 watts max.
PoE (Power over Ethernet)
Standard:	IEEE 802.3af
Standard:	IEEE 802.3at
Port:	RJ45
Power Pin Assignment	Pin 1,2 / 4,5 (+), Pin 3,6 / 7,8 (-)
PoE Power Output	DC 50V-57V/30-watt PoE via 2-pairs
LED Indicators
Power:	Power Status
PoE:	PoE Status
Dimensions (W×D×H):	145 x 58 x 39mm
Weight:	0.25Kg
Casing:	Plastic Case
Mounting Options:	Desktop
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500W
ESD: 4KV/8KV

Ordering Information

Model	Description
LNK-POE600	60-watt Ultra Power over Ethernet Injector (10/100/1000Mbps, 4-Pair)

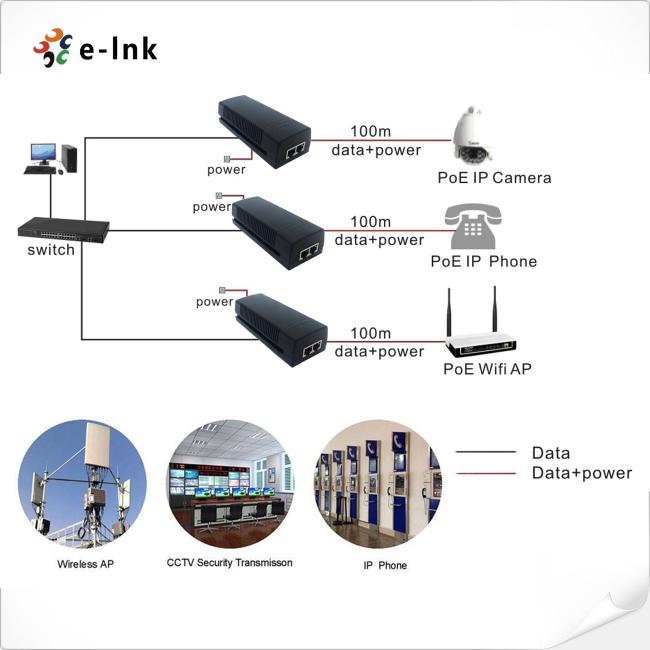

Application

10/100/1000Mbps 60W Ultra POE Injector Compliant with Limited Power Source (LPS)
