| Price | negotiation |
| MOQ | 1pcs |
| Delivery Time | 7-10 working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | CE, FCC, IP67 |
| Model Number | LNK-WP901 |
| Packaging Details | Industrial PoE Switch Standard Carton Packaging |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,PayPal |
| Supply Ability | 100000PCS/Month |
| Place of Origin | China | Packaging Details | Industrial PoE Switch Standard Carton Packaging |
| Model Number | LNK-WP901 | Supply Ability | 100000PCS/Month |
| Certification | CE, FCC, IP67 | Weight | 1.5KG |
| Case | Aluminum Case | Brand Name | E-link |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,PayPal | Dimensions (WxDxH): | 260mm X 210mm X 80mm |
| Price | negotiation | Delivery Time | 7-10 working days |
| Minimum Order Quantity | 1pcs | Operating Altitude | up to 5000meters |
| Mounting Options: | Pole-mounted | Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
Product Advantages
► Protection level: IP67
► 6KV(10/700us) surge protection on LAN, PoE ports
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port(Data + Power)
► Support 95W LTPoE++ Power Sourcing Equipment
► Supports Wall-mount installation
► Environmentally
hardened
-40°C
to
80°C
(-40°F
to
176°F)
operating
temperature
Overview

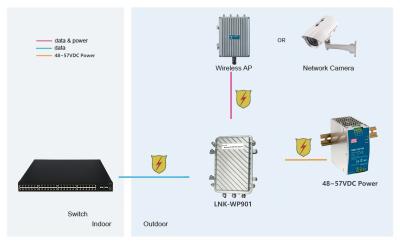

LNK-WP901 provides 95W PoE power for remote PDs over 4 pairs output with 6KV (10/700us) surge protection, fully compliant solution for outdoor installations, guaranteeing 30 Watts of power and ensuring safe and reliable operation in outdoor environment of any standard PoE data terminal. It allows wireless LAN access points, security network cameras and other IP terminals to receive power, a long with data, over standard Ethernet cables, leaving network infrastructure completely unaltered.
Technical Indexes
|
Parameter |
Specifications |
|
Standard |
IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-Tx Fast Ethernet IEEE802.3ab 1000Base-T Gigabit Ethernet Support terminal equipment with IEEE802.3af/at/bt, PoE++ RoHS Compliance WEEE Compliance Protection Level: IP67, IEC60529, NEMA 250 |
|
Input & Output |
Input : 48~57VDC Output: IEEE802.3bt 95W Power Pins: 4/5(+), 7/8(-) and 3/6(+),1/2(-) Data Speed: 10/100/1000Mbps |
|
Working Environment |
Operating Temperature: -40℃ to 80℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
|
AC Surge Protection |
Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
|
PoE Surge Protection |
Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
|
Mechanical Characteristics |
Case: Metal |
|
Color: Gray |
|
|
Mounting: Pole-mounted |
|
|
IP Rated: IP67 |
|
|
Size (LxWxH): 260mm X 210mm X 80mm |
|
|
Weight: 1.5KG |
|
|
Safety Approvals |
CE, FCC, IP67 |
|
EMI |
FCC CFR47 Part 15, EN55024, EN55032 |
|
|
IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air) IEC61000-4-3(RS) 10V/m(80MHz~2GHz) IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM IEC61000-4-6(CS) 10V(150kHz~80MHz) |
|
Immunity |
IEC60068-2-6(Vibration) IEC60068-2-27(Impact) IEC60068-2-32(Free Fall) |
Ordering Information
|
Model |
Description |
|
LNK-WP901 |

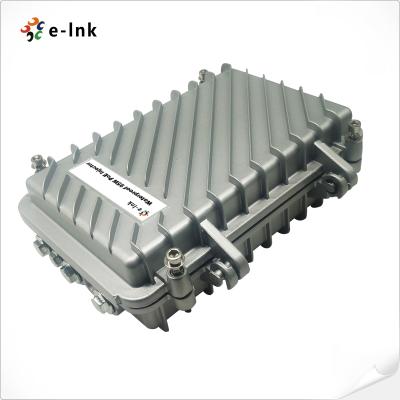

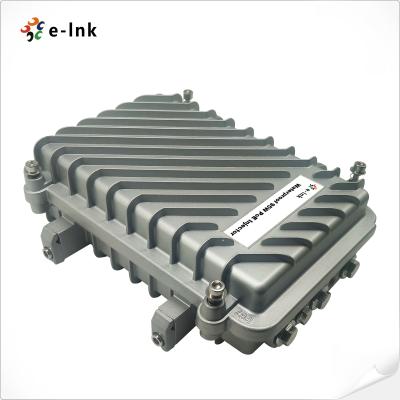

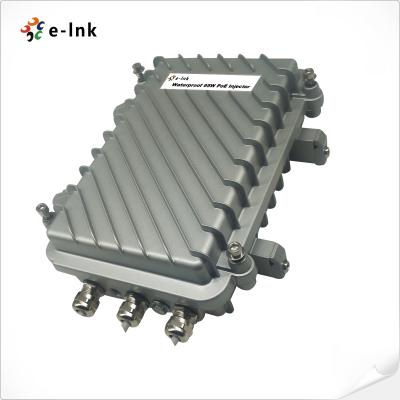

Outdoor Waterproof Industrial 95W Gigabit PoE Injector with Surge Protection |
