| Price | negotiation |
| MOQ | 1pcs |
| Delivery Time | 7-10 working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | CE, FCC |
| Model Number | LNK-POE200W |
| Packaging Details | Industrial PoE Switch Standard Carton Packaging |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,PayPal |
| Supply Ability | 100000PCS/Month |
| Place of Origin | China | Input Power | 90-240V AC ,50-60Hz |
| Packaging Details | Industrial PoE Switch Standard Carton Packaging | Model Number | LNK-POE200W |
| Supply Ability | 100000PCS/Month | Certification | CE, FCC |
| Weight | 120g | Size (LxWxH): | 100×48×32mm |
| Case | Metal Case | Brand Name | E-link |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,PayPal | Price | negotiation |
| Delivery Time | 7-10 working days | Minimum Order Quantity | 1pcs |
| Humidity | Max. 95% RH(non-condensing) | Operating Temperature: | 0 to +40°C, |
Product Advantages
· Compact wall mount design
· Up to 15.4W/30W of PoE Power
· Fully IEEE802.3af/IEEE802.3at compliant
· No additional power cables required
· Built in protection circuits
· Supports 10/100M or 10/100/1000M LAN environment
· Plug & Play
· No configuration required
· Reduced Installation cost
· Safe and Reliable Power to WLAN Access Points
· Automatic Detection and Protection of Non–standard Ethernet Terminals
Overview

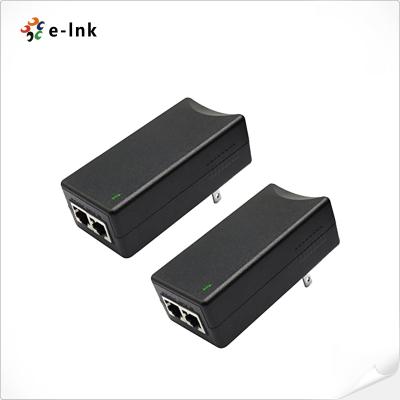

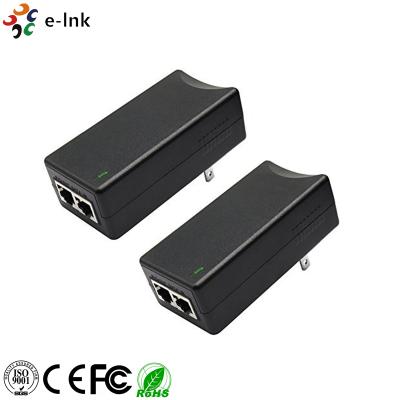

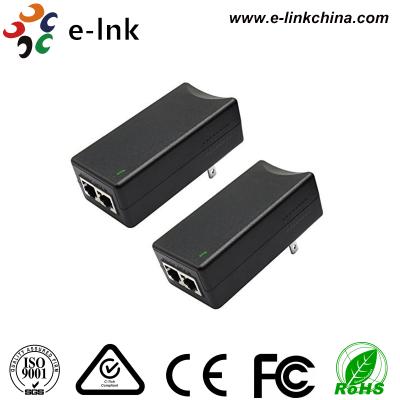

LNK-POE200W/LNK-POE300W wall mount active PoE injector is completely self-contained, a separate power supply and injector is not required. Compliant with IEEE802.3 af/at Ethernet power supply standard, it can be plugged directly into a wall electrical outlet, eliminating the need for additional power cables. The compact size makes it ideal for crowded equipment enclosures.
Technical Indexes
|
Parameter |
Specifications |
|
Features |
• Conforms to IEEE802.3af standard RJ-45 • Conforms to IEEE802.3af standard RJ-45 |
|
• Data Input Interface RJ-45 10/100Base-TX/ • Data Input Interface RJ-45 10/100/1000Base-TX |
|
|
Data Rate |
10/100Mbps 10/100/1000Mbps |
|
Input Power |
90-240V AC ,50-60Hz |
|
Output Power |
15.4W Max IEEE802.3af 30W Max IEEE802.3at |
|
Wiring |
|
|

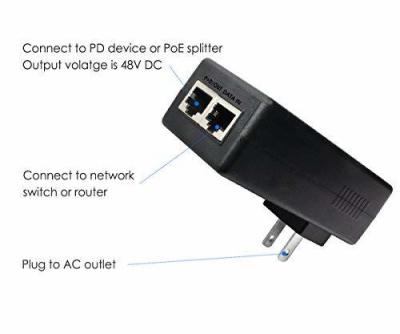

• Power over spare pairs 4/5(+) and 7/8(-) |
|
|
LED Display |
YES |
|
Operating Temperature |
0 to +40°C, |
|
Humidity |
Max. 95% RH(non-condensing) |
|

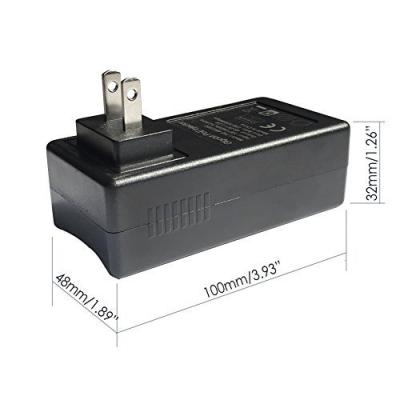

Dimension (LxWxH) |
100×48×32mm |
|
Weight |
120g |
Ordering Information
|
Model |
Decription |
|
LNK-POE200W |
Wall Mount PoE Injector, 10/100Mbps, IEEE 802.3af 15.4W |
|
LNK-POE200WT |
Wall Mount PoE Injector, 10/100Mbps, IEEE 802.3at 30W |
|
LNK-POE300W |
Wall Mount PoE Injector, 10/100/1000Mbps, IEEE 802.3af 15.4W |
|
LNK-POE300WT |
Wall Mount PoE Injector, 10/100/1000Mbps, IEEE 802.3at 30W |
