| Price | negotiation |
| MOQ | 1pcs |
| Delivery Time | 7-10 working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | CE, FCC |
| Model Number | LNK-POE-24-48W |
| Packaging Details | Industrial PoE Switch Standard Carton Packaging |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,PayPal |
| Supply Ability | 100000PCS/Month |
| EMI | FCC CFR47 Part 15, EN55024, EN55032 | Place of Origin | China |
| Packaging Details | Industrial PoE Switch Standard Carton Packaging | Model Number | LNK-POE-24-48W |
| Supply Ability | 100000PCS/Month | Certification | CE, FCC |
| Weight | 1070g | Size (LxWxH): | 203mm X 130mm X 41mm |
| Case | Metal Case | Brand Name | E-link |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,PayPal | Mounting | Wall-mounted |
| Price | negotiation | Delivery Time | 7-10 working days |
| Minimum Order Quantity | 1pcs | Operating Temperature: | -40℃ to 65℃ |
Product Advantages
· Gigabit
SFP
port for
Fiber
LNK-PSE951G-SFP
is
a
small
switch.
Data
output
through
PoE
port
and
SFP
port
simultaneously,
that
is
to
say,
besides
power
device
near,
LNK-PSE951G-SFP
also
could
transmit
data
to
remote
equipment.
LAN,
Fiber
and
PoE
are
data intercommunicating.
· High
PoE
95W
output,
active
PoE
Injector
Output
voltage
is
rated,
55Vdc.
With
detection
chip
inside,
before
powering,
there
has
a
detect
process.
· 4KV
surge
protection
on
PoE
port
To
protect
indoor
devices
and
inner
components
from
surge
damage,
we
design
4KV
(10/700μs)
on
PoE
port.
· AC Port: 2KV(1.2/50us) surge protection
· Wide
Working
temperature
-40℃
to
65℃
LNK-PSE951G-SFP
design
industrial
level
working
temperature
-40℃
to
65℃,
to
meet
harsh
conditions
requirements.
Overview

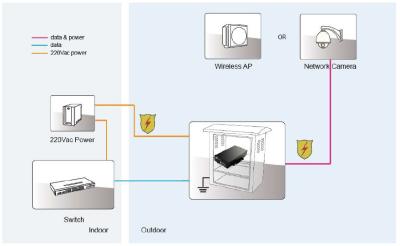

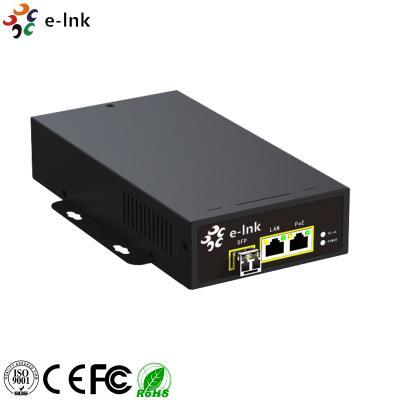

LNK-PSE951G-SFP is a single port PoE Injector with SFP fiber connection port. It provides 55Vdc, 1.75A power for remote PDs over full-4pairs output with 4KV (10/700us) surge protection. It supports both 10/100Base-T and Gigabit device. It works for 95W PoE PDs, such as wireless APs, base stations, high power cameras, door locks, displays, POS, information kiosks and other high power Ethernet terminals. It is also compatible and safe to use with any IEEE802.3af/at, PoE++ compliant terminals. It works like a switch; data is interoperable among LAN port, PoE port and SFP port.
Technical Indexes
|
Parameter |
Specifications |
|
Standard |
IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-Tx Fast Ethernet IEEE802.3ab 1000Base-T Gigabit Ethernet Support terminal equipment with IEEE802.3af/at RoHS Compliance WEEE Compliance |
|
Input & Output |
Input : 100-240Vac 2.0A 50/60Hz Output: 55VDC 1750mA Power Pins: 4/5(+), 7/8(-) & 3/6(+),1/2(-) Data Speed: 10/100/1000Mbps |
|
Working Environment |
Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
|
AC Surge Protection |
1.0KV (5P/5N) L-N 1.2/50 (8/20) Tr/Th us 2.0KV (5P/5N) L-PE 1.2/50 (8/20) Tr/Th us N -PE |
|
PoE Surge Protection |
Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 4KV Differential mode surge protection (10/700us): 1.5KV |
|
Mechanical Characteristics |
Case: Metal |
|
Color: Black |
|
|
Mounting: Wall-mounted |
|
|
IP Rated: IP20 |
|
|

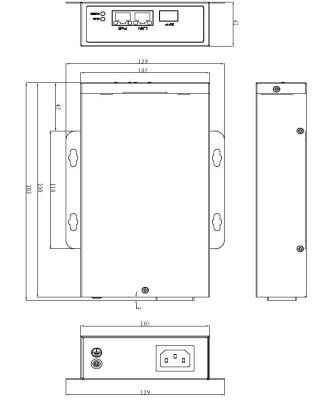

Size (LxWxH): 203mm X 130mm X 41mm |
|
|
Weight: 1070g |
|
|
Safety Approvals |
CE, FCC |
|
EMI |
FCC CFR47 Part 15, EN55024, EN55032 |
|
EMS |
IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air) IEC61000-4-3(RS) 10V/m(80MHz~2GHz) IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM IEC61000-4-6(CS) 10V(150kHz~80MHz) |
|
Immunity |
IEC60068-2-6(Vibration) IEC60068-2-27(Impact) IEC60068-2-32(Free Fall) |
|

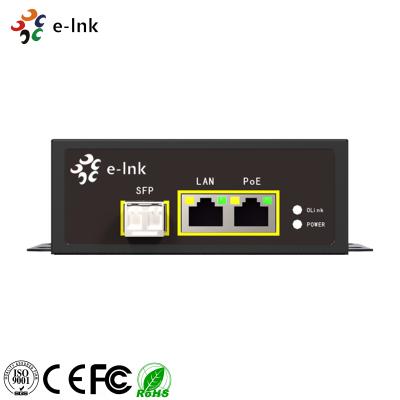

LED Indicator |
Power Indicator: Green PoE Load Indicator: Green SFP Fiber Indicator: Green LAN Data Indicator: Yellow |
Ordering Information
|
Model |
Description |
|
LNK-PSE951G-SFP |
95W SFP PoE Injector: 55Vdc/1.75A/1000Mbps/(4,5+,7,8-) and (3,6+,1,2-)/Surge Protection/Active |
