| Price | negotiation |
| MOQ | 1pcs |
| Delivery Time | 7-10 working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | CE, FCC |
| Model Number | LNK-PSE9501G |
| Packaging Details | Industrial PoE Switch Standard Carton Packaging |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,PayPal |
| Supply Ability | 100000PCS/Month |
| Place of Origin | China | PoE (Power over Ethernet) | 1200W |
| Packaging Details | Industrial PoE Switch Standard Carton Packaging | Model Number | LNK-PSE9501G |
| Supply Ability | 100000PCS/Month | Certification | CE, FCC |
| Weight | 7.0Kg | Case | Metal Case |
| Brand Name | E-link | Payment Terms | L/C,T/T,Western Union,MoneyGram,PayPal |
| Dimensions (W×D×H): | 440 x 235 x 43mm | Price | negotiation |
| Delivery Time | 7-10 working days | Minimum Order Quantity | 1pcs |
| Mounting Options: | 19inch Rackmount | Operating Temperature: | -10°C to 50°C (14°F to 122°F) |
Product Advantages
► Up to 95W of PoE Power
► Compliant with IEEE802.3af/at/bt Standard
► Support 10/100/1000Base-T
► Compliant with Limited Power Source (LPS)
► High Efficiency > 85%
► Low No Load Power Consumption < 0.5W
► Provide 2 LED indicators include Power LED(Green) and PoE LED(Orange)
► Over-Voltage/Load/Temperature & Short Circuit protections
► Safe and Reliable Power to WLAN Access Points
► Automatic Detection and Protection of Non-standard Ethernet Terminals

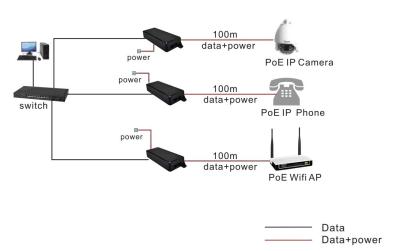

► Injects 56V DC through a CAT 5 cable, use all 4 pairs into remote devices such as wireless AP, IP phone, web camera and other functions
Overview

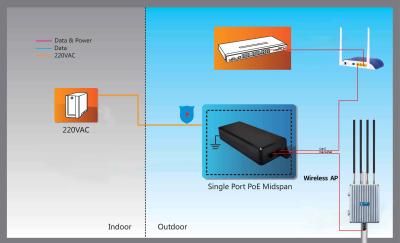

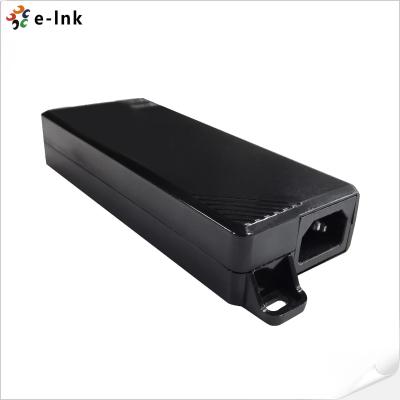

LNK-PSE9501G 95W – 56V Gigabit PoE Injector is a long-distance driving, fast network performing, strong PoE Output IEEE 802.3bt, 802.3at and 802.3af certified midspan. It is a single port indoor PoE injector that can provide up to 95W based on the IEEE 802.3bt standard.
Technical Indexes
|
Standards: |
IEEE 802.3 10Base-T Ethernet |
|
IEEE 802.3u 100Base-TX Fast Ethernet |
|
|
IEEE 802.3ab 1000Base-T Gigabit Ethernet |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
10/100/1000Base-T: Cat5 or above |
|
Maximum Distance: |
High Power PoE (95W): 4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft) 802.3af / at PoE (15W / 30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft) |
|
Connector: |
LAN: 1 x RJ-45 STP, “Data” Input Port POE: 1 x RJ-45 STP, “Data + Power” Output Port AC Connector: 1 x AC Input power socket, IEC-60320 C13 |
|
Environmental |
|
|
Operating Temperature: |
-10°C to 50°C (14°F to 122°F) |
|
Storage Temperature: |
-20°C to 70°C (-4°F to 158°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Voltage Range: |
100-240V AC @50/60Hz, 1.5A max. |
|
Output Voltage: |
DC 48-57V, 2A |
|
Power Consumption: |
95 watts max. |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE 802.3af |
|
IEEE 802.3at |
|
|
IEEE 802.3bt |
|
|
Port: |
RJ45 |
|
Power Pin Assignment |
Pin 1,2 / 4,5 (+), Pin 3,6 / 7,8 (-) |
|
PoE Power Output |
DC 48V-57V/95-watt PoE via 2-pairs |
|
LED Indicators |
|
|
Power: |
Power Status |
|
Port: |
PoE Status |
|
Dimensions (W×D×H): |
147 x 62 x 30mm |
|
Weight: |
0.45Kg |
|
Casing: |
Plastic Case |
|
Mounting Options: |
Desktop/Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500W |
|
|
ESD: 4KV/8KV |
|
Ordering Information
|
Model |
Description |
|
LNK-PSE9501G |
95-watt High Power over Ethernet Injector (10/100/1000Mbps, 4-Pair) |
