| Price | negotiation |
| MOQ | 1pcs |
| Delivery Time | 7-10 working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | CE, FCC |
| Model Number | LNK-POE56V |
| Packaging Details | Industrial PoE Switch Standard Carton Packaging |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,PayPal |
| Supply Ability | 100000PCS/Month |
| Place of Origin | China | PoE (Power over Ethernet) | 1200W |
| Packaging Details | Industrial PoE Switch Standard Carton Packaging | Model Number | LNK-POE56V |
| Supply Ability | 100000PCS/Month | Certification | CE, FCC |
| Weight | 7.0Kg | Case | Metal Case |
| Brand Name | E-link | Payment Terms | L/C,T/T,Western Union,MoneyGram,PayPal |
| Dimensions (W×D×H): | 440 x 235 x 43mm | Price | negotiation |
| Delivery Time | 7-10 working days | Minimum Order Quantity | 1pcs |
| Mounting Options: | 19inch Rackmount | Operating Temperature: | -10°C to 50°C (14°F to 122°F) |
Product Advantages
► Up to 56V 35W of PoE Power
► Fully IEEE802.3af/IEEE802.3at compliant
► Supports 10/100/1000M LAN environment
► Plug & Play
► No configuration required
► Reduced Installation cost
► Safe and Reliable Power to WLAN Access Points
► Automatic Detection and Protection of Non–standard Ethernet Terminals
Overview

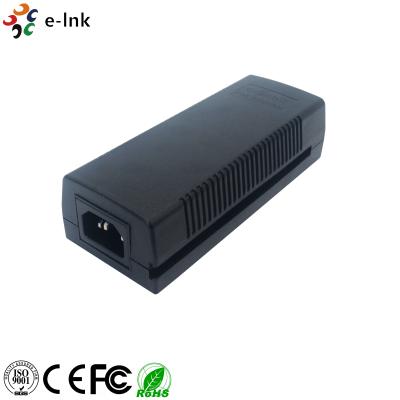

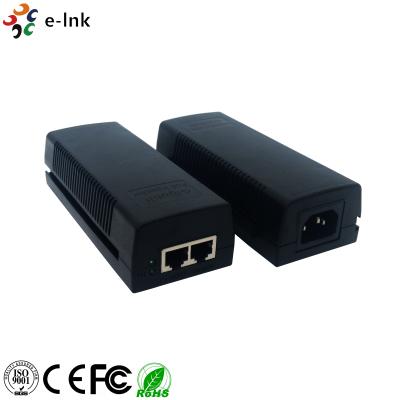

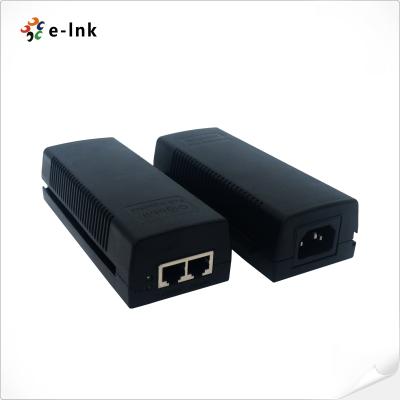

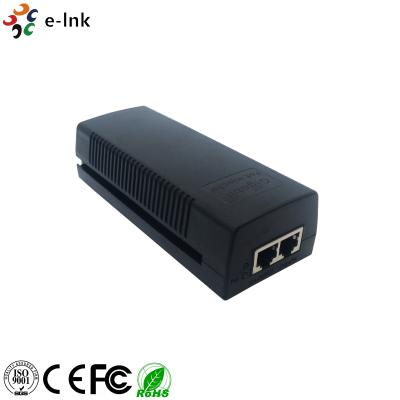

LNK-PSE2424G 24W – 24V Gigabit PoE Injector is a long-distance driving, fast network performing, strong PoE Output midspan. It is a single port indoor PoE injector that can provide up to 24W.
The midspans are ideal to power 802.11 access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other power Ethernet end terminals with 24W of power. With plug and-play installation, they are easy and cost effective to implement leveraging existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.
Technical Indexes
|
Parameter |
Specifications |
|
Features |
• Conforms to IEEE802.3af standard RJ-45 • Conforms to IEEE802.3af standard RJ-45 |
|
• Data Input Interface RJ-45 10/100/1000Base-TX |
|
|
• Output Port Power Cable Included |
|
|
Data Rate |
10/100/1000Mbps |
|
Input Power |
90-240V AC ,50-60Hz |
|
Output Power |
35W 56VDC |
|
Wiring |
|
|
• Power over spare pairs 4/5(+) and 7/8(-) |
|
|
LED Display |
YES |
|
Operating Temperature |
0 to +40°C, |
|
Humidity |
Max. 95% RH(non-condensing) |
|
Dimension |
61×40×12(H×D×W) |
|
Weight |
200g |
Ordering Information
|
Model |
Decription |
|
LNK-POE56V |
PoE Adapter, 10/100/1000Mbps, support 56V 35W PoE power |
