| Price | Deliberations |
| MOQ | Deliberations |
| Delivery Time | 5-8 work days |
| Brand | Airui |
| Place of Origin | Shandong，China |
| Certification | ISO/TS16949 |
| Model Number | AC005 |
| Packaging Details | 1. Hot shrink poly per set/box and ten boxes in one carton. 2. Pallet packing. 3. As your requirements |
| Payment Terms | L/C, T/T |
| Supply Ability | 20000 Set/Sets per Month |
| Place of Origin | Shandong，China | Tube | 50 mm square |
| Use | Trailer Parts | Size | 10 inch |
| Packaging Details | 1. Hot shrink poly per set/box and ten boxes in one carton. 2. Pallet packing. 3. As your requirements | Bolts | 5 bolts |
| Material | iron | Model Number | AC005 |
| Supply Ability | 20000 Set/Sets per Month | Certification | ISO/TS16949 |
| Brand Name | Airui | Payment Terms | L/C, T/T |
| Price | Deliberations | Delivery Time | 5-8 work days |
| Length | Customer Model | Quality | 100% Guaranteed |
| Minimum Order Quantity | Deliberations | Max Payload | 2000 kg |
Hub Face (HF):
measure from one end of the axle where the lug bolts protrude out from to the other end at the same point. This is the Hub Face.
| 5* 4.5", 6*5.5" wheel bolts pattern | |||||
| NO. | Description | QTY | option 1 | option 2 | option 3 |
| 1 | axle shaft | 1 | 45mm Rd / Sq solid | 50mm Rd / Sq solid | 60*5mm round tube |
| 2 | mounting plate | 2 | AT01200107 | ||

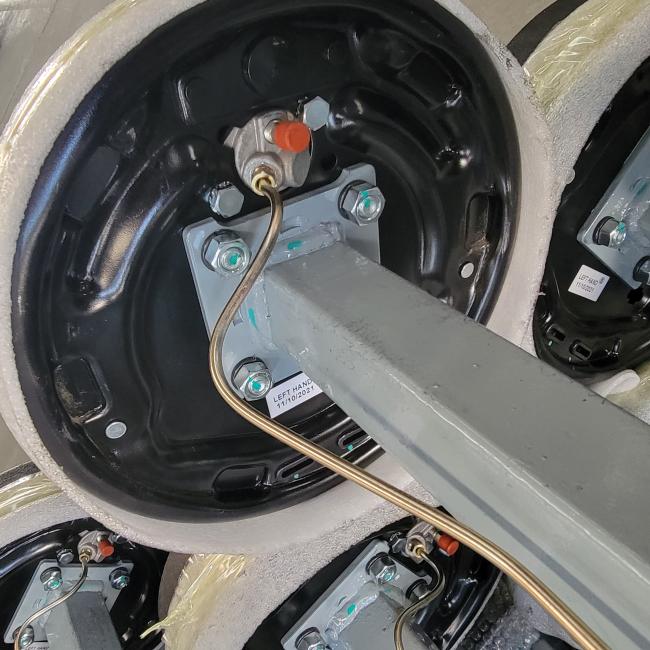

| 3 | 10" brake plate | 2 | AZ013L/R | AZ004L/R | AZ026L/R |
| 4 | bolt | 8 | AC00100501 | ||
| 5 | washer & nut | 8 | AC00100502/3 | ||
| 6 | oil seal | 2 | AC00500201 | ||
| 7 | inner bearing | 2 | L68149/10 | ||

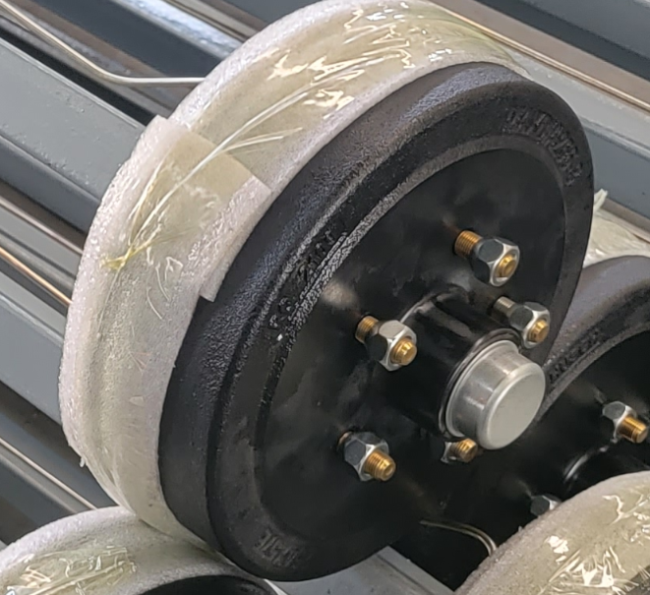

| 8 | 10" hub drum | 2 | AC00500300 | ||
| 9 | wheel nut | 8,10,12 | 1/2"-10UNF | 7/16"-20UNF | |
| 10 | outer bearing | 2 | LM12749/10 | L68149/10 | |
| 11 | flat washer | 2 | AC00500402 | ||
| 12 | castle nut | 2 | AC00500403 | ||
| 13 | split pin | 2 | AC00500404 | ||
| 14 | dust cap | 2 | AC00500405 | ||
1: Could you please make us an offer as soon as possible?
In order to get the price quickly and accurately, please provide the technical drawing or OE number, we will be very grateful.
2: Could you please provide us with the specifications of the products?
Sure, please confirm the product code you need before that.
3: How can you guarantee the quality of your products?
Our products have passed ISO9001 international quality standard certification. Our company has a very strict quality control system.
4: How to solve the problems in the later stage?
We are confident in our products. We pack them well to make sure they are well protected.
