2500-3500Kg Square Trailer Axle 50MM 12 Inch Boat Trailer Axles With Hydraulic Brakes

Price	Deliberations
MOQ	Deliberations
Delivery Time	5-8 work days
Brand	Airui
Place of Origin	Shandong，China
Certification	ISO/TS16949
Model Number	AC005
Packaging Details	1. Hot shrink poly per set/box and ten boxes in one carton. 2. Pallet packing. 3. As your requirements
Payment Terms	L/C, T/T
Supply Ability	20000 Set/Sets per Month

Product Details

Product Specification

Place of Origin	Shandong，China	Tube	50 mm square
Use	Trailer Parts	Size	12 inch
Packaging Details	1. Hot shrink poly per set/box and ten boxes in one carton. 2. Pallet packing. 3. As your requirements	Bolts	5 bolts
Material	Steel	Model Number	AC005
Supply Ability	20000 Set/Sets per Month	Certification	ISO/TS16949
Brand Name	Airui	Payment Terms	L/C, T/T
Price	Deliberations	Delivery Time	5-8 work days
Length	Customer Model	Quality	100% Guaranteed
Minimum Order Quantity	Deliberations	Max Payload	2500-3500 kg

Product Description

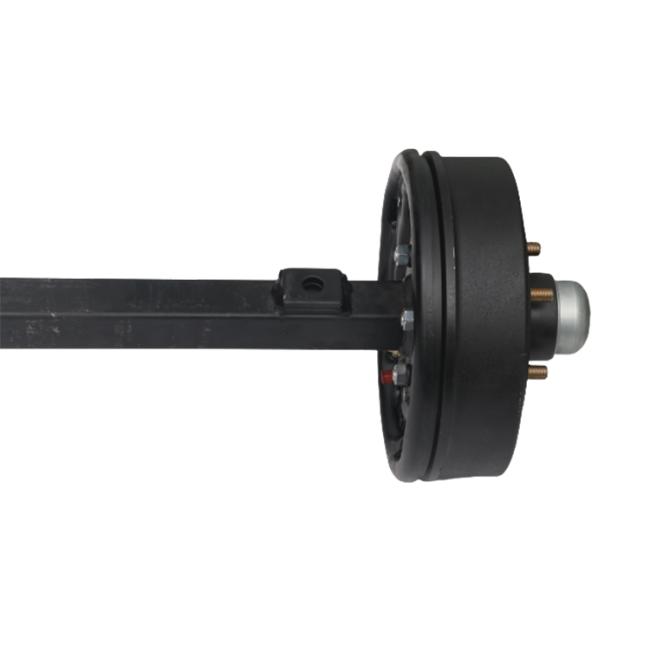

2500-3500 Kg 50 MM Square Solid Tube Straight With 12 Hydraulic Brake Trailer Axle

BOLT PATTERN

Use the distance between the center of one bolt hole to the center of the bolt hole adjacent to it:

If the distance is:

2-5/8" - the bolt pattern is 5 on 4-1/2

2-3/4" - the bolt pattern is 5 on 4-3/4

3" - the bolt pattern is 5 on 5

3-1/4" - the bolt pattern is 5 on 5-1/2

Hub Face (HF):

measure from one end of the axle where the lug bolts protrude out from to the other end at the same point. This is the Hub Face.

Spring Center (SC):

Measure from the middle of the spring on one axle to the center of the other spring on the same axle.

There should be about 15" difference between the Hub Face and the Spring Center measurement. (7-1/2" each side

NO.	Description	QTY	option 1	option 2	option 3
1	axle shaft	1	50mm Rd / Sq solid	60mm Rd / Sq solid	76*6mm round tube
2	mounting plate	2	AT01200105	AT01200110
3	12" brake plate	2	AZ011UR	AZ025L/R	AZ003L/R
4	bolt, washer & nut	8	AC00100501/2/3
5	oil seal	2	AC00200400	AT01700302
6	inner bearing	2	25580/20
7	12" hub drum	2	AC00200300	AC00200300C
8	wheel nut	12,16	1/2"-10UNF
9	outer bearing	2	15123/45	14125A/76
10	flat washer	2	AC00201001
11	castle nut	2	AC00200701
12	split pin	2	AC00200404
13	dust cap	2	AC00200601	AC00200601B

Our Advantage

1. Our joint venture partners are American Famous axle company AXLETEK,we have make a cooperation for 6 years.So we can supply stable and high quality brakes.

2. We have Researching and Development Department in Detroit,so we are also capable of developing products according drawing or samples to meet the special requirement of our customes.

We are based in Shandong, China, start from 2006,sell to North America(67.00%),Oceania(20.00%),Domestic Market(6.00%),South America(00.00%),Eastern Europe(00.00%),Southeast Asia(00.00%),Africa(00.00%),Eastern Asia(00.00%),Western Europe(00.00%),Central America(00.00%). There are total about 301-500 people in our office.
