1200-2000Kg 45MM Square Boat Trailer Axle 10'' Electric Brake Trailer Axle

Price	Deliberations
MOQ	Deliberations
Delivery Time	5-8 work days
Brand	Airui
Place of Origin	Shandong，China
Certification	ISO/TS16949
Model Number	AC005
Packaging Details	1. Hot shrink poly per set/box and ten boxes in one carton. 2. Pallet packing. 3. As your requirements
Payment Terms	L/C, T/T
Supply Ability	20000 Set/Sets per Month

Product Details

Product Specification

Place of Origin	Shandong，China	Tube	45 mm round
Use	Trailer Parts	Size	10 inch
Packaging Details	1. Hot shrink poly per set/box and ten boxes in one carton. 2. Pallet packing. 3. As your requirements	Bolts	5 bolts
Material	Steel	Model Number	AC005
Supply Ability	20000 Set/Sets per Month	Certification	ISO/TS16949
Brand Name	Airui	Payment Terms	L/C, T/T
Price	Deliberations	Delivery Time	5-8 work days
Length	Customer Model	Quality	100% Guaranteed
Minimum Order Quantity	Deliberations	Max Payload	1200-2000 kg

Product Description

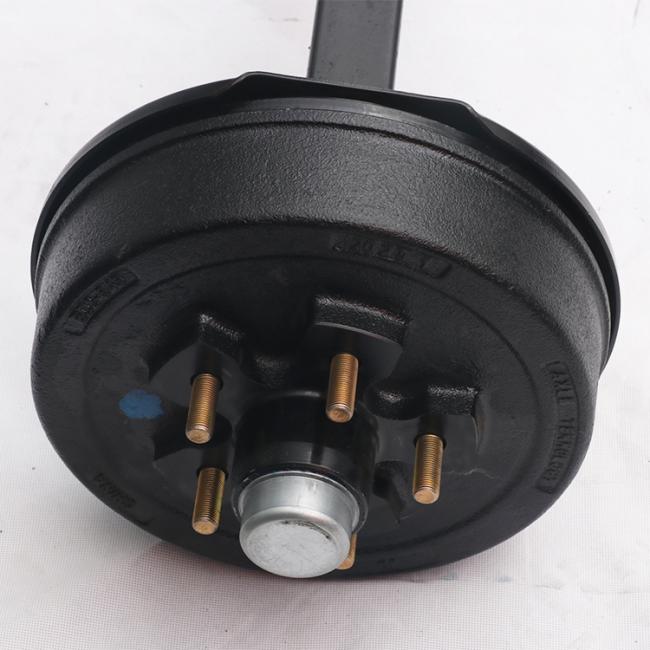

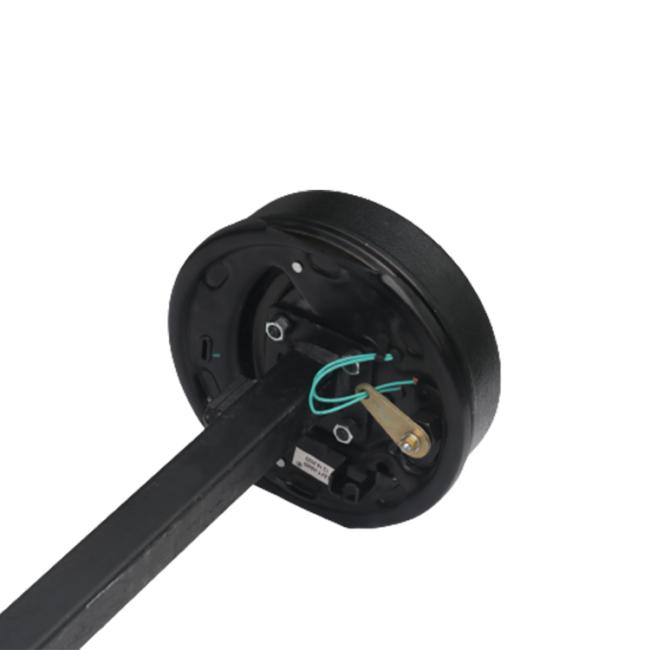

1200-2000 Kg 745 MM Square Solid Tube Straight With 10 Electric BrakeTrailer Axle

Fast lube Design.
Zerk fitting on the spindle uses a rubber plug on the hub cap to grease bearings simply.
Grease your axle without pulling off your whole entire hub.

Underslung – Axle is welded with spring seats on the bottom (Axle sits on top of the springs) which Allows for lower ride height. For optimal usage, use with double eye springs

High Strength Cambered Steel Axle Tube Construction to ensure Even Tire Wear so the tires will last longer.

Powder coated black.

Hub Face (HF):

measure from one end of the axle where the lug bolts protrude out from to the other end at the same point. This is the Hub Face.

Spring Center (SC):

Measure from the middle of the spring on one axle to the center of the other spring on the same axle.

There should be about 15" difference between the Hub Face and the Spring Center measurement. (7-1/2" each side

NO.	Description	QTY	option 1	option 2	option 3
1	axle shaft	1	50mm Rd / Sq solid	60mm Rd / Sq solid	76*6mm round tube
2	mounting plate	2	AT01200105	AT01200110
3	12" brake plate	2	AZ011UR	AZ025L/R	AZ003L/R
4	bolt, washer & nut	8	AC00100501/2/3
5	oil seal	2	AC00200400	AT01700302
6	inner bearing	2	25580/20
7	12" hub drum	2	AC00200300	AC00200300C
8	wheel nut	12,16	1/2"-10UNF
9	outer bearing	2	15123/45	14125A/76
10	flat washer	2	AC00201001
11	castle nut	2	AC00200701
12	split pin	2	AC00200404
13	dust cap	2	AC00200601	AC00200601B

Choose me,do not hesitate
(1)Design team:We have a professional design team.many designs,as you choose.your sample is always welcome.
(2)Professional factory:We are manufacturer,specializing in manufacturing trailer parts for 8 years.competitive price with good quality.
(3)Sample:We can give out sample freely, the shipment charge usually paid by your side,and the fee of it will be rebound when we have formal order.
(4) Rapid response to your needs:We will be answer within 24 hours.welcome to contact us if you have any problems,we are looking forward to cooperating with you

Our Advantage

1. Our joint venture partners are American Famous axle company AXLETEK,we have make a cooperation for 6 years.So we can supply stable and high quality brakes.

2. We have Researching and Development Department in Detroit,so we are also capable of developing products according drawing or samples to meet the special requirement of our customes.

Great for Utility Trailer Axle, Boat Trailer Axle, Car Haulers Trailer Axle, ATV Trailer Axle, Lawn & Landscape Trailer Axle, Motorcycle Trailer Axle, BBQ Pit Trailer Axle, Cargo Trailer Axle, Enclosed Trailer Axle, RV Trailer Axle & More
