| Price | Deliberations |
| MOQ | Deliberations |
| Delivery Time | 5-8 work days |
| Brand | Airui |
| Place of Origin | Shandong，China |
| Certification | ISO/TS16949 |
| Model Number | AC098 |
| Packaging Details | 1. Hot shrink poly per set/box and ten boxes in one carton. 2. Pallet packing. 3. As your requirements |
| Payment Terms | L/C, T/T |
| Supply Ability | 20000 Set/Sets per Month |
| Place of Origin | Shandong，China | Use | Trailer Parts |
| Size | 12 inch | Packaging Details | 1. Hot shrink poly per set/box and ten boxes in one carton. 2. Pallet packing. 3. As your requirements |
| Material | Steel | Model Number | AC098 |
| Supply Ability | 20000 Set/Sets per Month | Certification | ISO/TS16949 |
| Brand Name | Airui | Payment Terms | L/C, T/T |
| Price | Deliberations | Delivery Time | 5-8 work days |
| Quality | 100% Guaranteed | Minimum Order Quantity | Deliberations |
| Max Payload | 6000-7000 lbs |

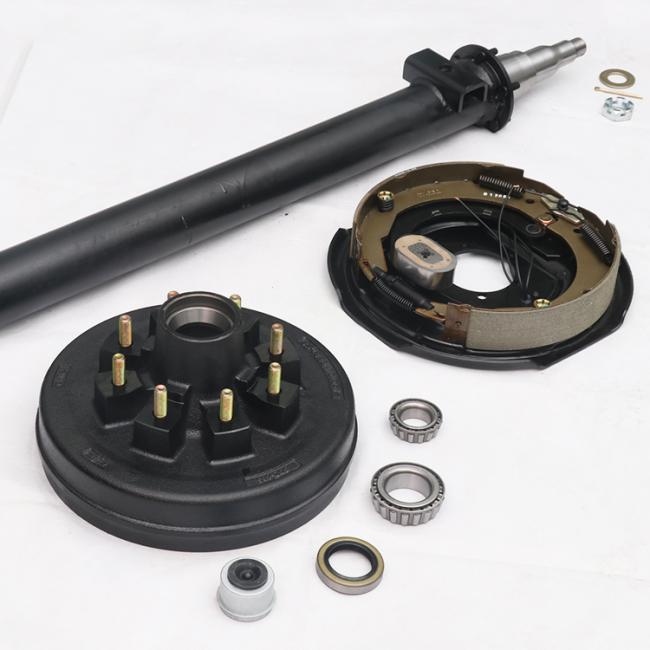

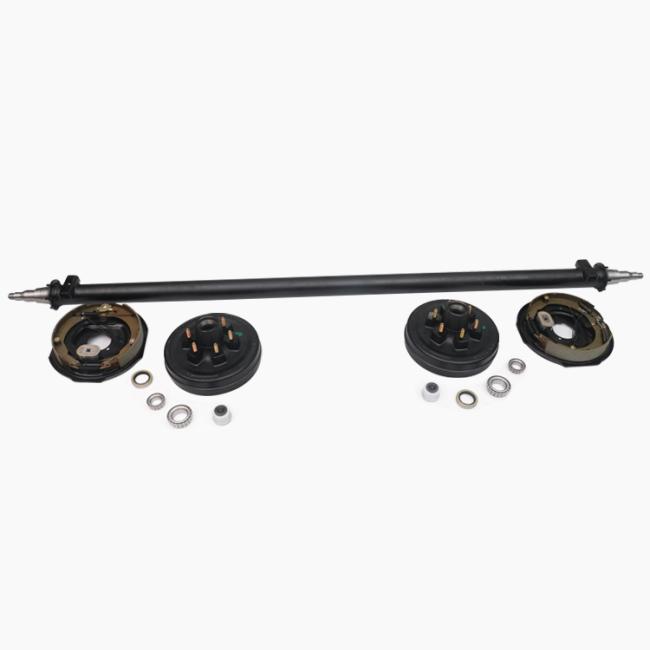

3500 lbs spindle 84 straight axle 60 mm tube 5 bolts 114.3 PCD trailer axle with 10" brake and drum
Questions that lead the user to the right axle:
LOAD CAPACITY: the load rating of an axle must support the maximum gross vehicle (GVW) rating. If your trailer weighs 1,000 lbs and your equipment weighs 2,200 lbs, you will need at least a 3,500 lbs capacity axle.
SPINDLE OPTIONS: the spindle options available are straight or drop. A drop spindle will give you the lower deck but limits the width available for your deck. Most common spindle choice is the straight.
|
NO. |
Description |
QTY |
option 1 |
option 2 |
option 3 |
|
1 |
axle shaft |
1 |
50mm Rd / Sq solid |
60mm Rd / Sq solid |
76*6mm round tube |
|
2 |
mounting plate |
2 |
AT01200105 |
AT01200110 |
|
|
3 |
12" brake plate |
2 |
AZ011UR |
AZ025L/R |
AZ003L/R |
|
4 |
bolt, washer & nut |
8 |
AC00100501/2/3 |
|
|
|
5 |
oil seal |
2 |
AC00200400 |
AT01700302 |
|
|
6 |
inner bearing |
2 |
25580/20 |
|
|
|
7 |
12" hub drum |
2 |
AC00200300 |
AC00200300C |
|
|
8 |
wheel nut |
12,16 |
1/2"-10UNF |
|
|
|
9 |
outer bearing |
2 |
15123/45 |
14125A/76 |
|
|
10 |
flat washer |
2 |
AC00201001 |
|
|
|
11 |
castle nut |
2 |
AC00200701 |
|
|
|
12 |
split pin |
2 |
AC00200404 |
|
|
|
13 |
dust cap |
2 |
AC00200601 |
AC00200601B |
|
