| Price | Negotiatable |
| MOQ | 1 |
| Delivery Time | Negotiable |
| Brand | FONGKO |
| Place of Origin | China |
| Model Number | FKSFP-010 |
| Brand Name | FONGKO | Condition | New |

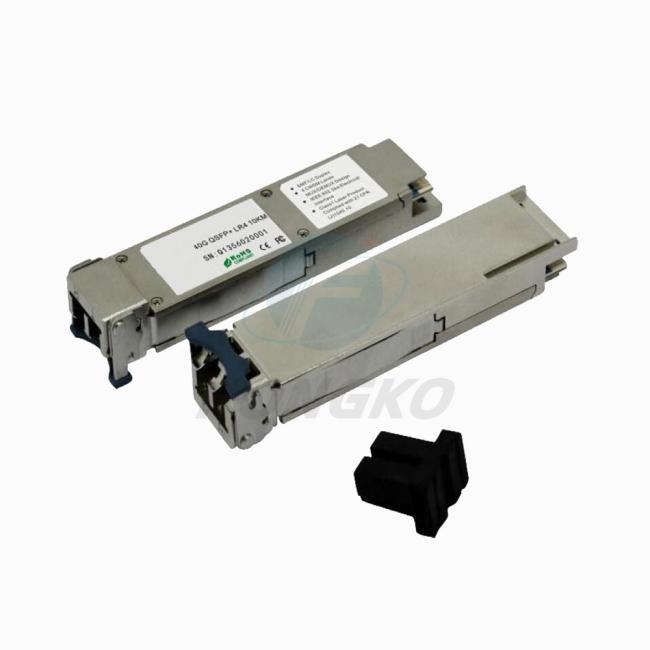

| Place of Origin | China | Keywords | 40Gb/s QSFP+ 10km Optical Transceiver |
| Price | Negotiatable | Product name | SFP Optical Transceiver |
| Use | FTTH | Minimum Order Quantity | 1 |
| Low power consumption | < 3.5W | Operating case temperature: | 0°C to +70°C |
| Model Number | FKSFP-010 |
| Absolute Maximum Ratings | |||||
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 3.6 | V | |
| Storage Temperature | TS | -20 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % | |
| Damage Threshold, per Lane | DT | 3.4 | dBm | ||
| General Operating Characteristics | |||
| Parameter | Value | Unit | Note |
| Module Form Factor | QSFP+ | ||
| Number of Lanes | 4 Tx and 4 Rx | ||
| Maximum Aggregate Data Rate | 41.2 | Gb/s | |
| Maximum Data Rate per Lane | 10.3 | Gb/s | |
|
Protocols Supported |
Typical applications include 40G Ethernet, Infiniband, Fibre Channel, SATA/SAS3 | ||
|
Electrical Interface and Pin-out |
38-pin edge connector ,Pin-out as defined by the QSFP+ MSA | ||
| Management Interface | Serial, I2C-based, 400 kHz maximum frequency | ||
| Parameter | Symbol | Min | Typ | Max | Units | Note |
| Bit Rate per Lane | BR | 10.313 | Gb/s | 1 | ||
| Bit Error Ratio | BER | 10-12 | 2 | |||
| Distance on SMF | D1 | 10 | Km | 3 |
| Optical Characteristics (TOP(C) = 0 to 70 ℃,TOP(I) =-40 to 85 ℃,VCC=3.13 to 3.47 V) | ||||||
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
|
Operating Wavelength |
λc |
1270 |
nm |
|||
| 1290 | ||||||
| 1310 | ||||||
| 1330 | ||||||
| Ave. output power | PAVE | -7 | +2.3 | dBm | ||
| Difference in launch power between any two lanes (OMA) |
DL |
4 |
dB |
|||
| Extinction Ratio | ER | 3.5 | dB | |||
| Peak power, each lane | PP | 4 | dBm | |||
| Dispersion penalty, each lane | TDP | 3.5 | dB | |||
| Average launch power of OFF transmitter, each lane |
POFF |
-30 |
dB |
|||
| Eye Mask coordinates: X1, X2, X3, Y1, Y2, Y3 | SPECIFICATION VALUES 0.23, 0.34, 0.43, 0.27, 0.35, 0.4 | Hit Ratio = 5x10-5 | ||||
| Receiver | ||||||
|
Operating Wavelength |
λc |
1264.5 | 1277.5 |
nm |
||
| 1284.5 | 1297.5 | |||||
| 1304.5 | 1317.5 | |||||
| 1324.5 | 1337.5 | |||||
|
Stressed
receiver
sensitivity in OMA(OLSQ854XM-CDS1) |
PSEN1 |
-11.5 |
dBm |
3 |
||
| Average Receive Power,each lane | PAVE | -11 | +2.4 | dBm | ||
| Receiver Reflectance | Rrx | -12 | dB | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -12 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
