| Price | Negotiatable |
| MOQ | 1 |
| Delivery Time | Negotiable |
| Brand | FONGKO |
| Place of Origin | China |
| Model Number | FKSFP-003 |
| Brand Name | FONGKO | Condition | New |

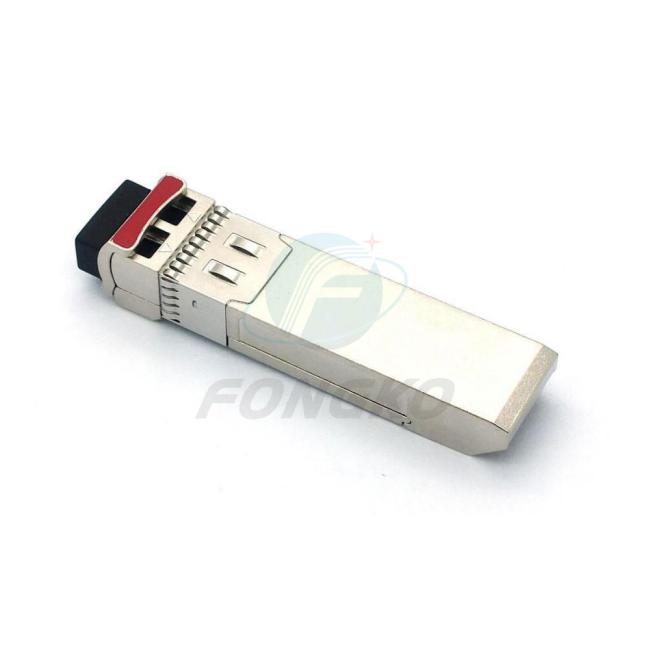

| Place of Origin | China | Keywords | RoHS Compliant 10Gb/s SFP+ 1550nm 40km Optical Transceiver |
| Price | Negotiatable | Product name | SFP Optical Transceiver |
| Use | FTTH | Minimum Order Quantity | 1 |
| Network | other | Low power consumption | < 1.2W |
| Operating case temperature: | Commerical:0 to 70 °C Industrial:-40 to 85 °C | Model Number | FKSFP-003 |
| Absolute Maximum Ratings | |||||
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 4.0 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % | |
| RX Damage Threshold | RxDamage | 5 | dBm | ||
| General Operating Characteristics | ||||||
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Data Rate | DR | 9.953 | 10.3125 | 11.3 | Gb/s | |
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Supply Current | Icc5 | 360 | mA | |||
|
Operating Case Temp. |
Tc | 0 | 70 |
°C |
||
| TI | -40 | 85 | ||||
| Electrical Characteristics (TOP(C) = 0 to 70 ℃,TOP(I) =--5 to 80 ℃,VCC =3.13 to 3.47 V) | ||||||
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Differential data input swing | VINPP | 120 | 850 | mVpp | 1 | |
| Transmit Disable Voltage | VD | VCC-0.8 | Vcc |
V |
||
| Transmit Enable Voltage | VEN | 0 | 0.8 | |||
| Input differential impedance | Rin | 100 | Ω | |||
| Receiver | ||||||
| Differential data output swing | Vout,pp | 300 | 850 | mVpp | 2 | |
| Output rise time and fall time | Tr, Tf | 28 | Ps | 3 | ||
| LOS asserted | VLOS_F | VCC-0.8 | Vcc | V | 4 | |
| LOS de-asserted | VLOS_N | 0 | 0.8 | V | 4 | |
