24F G652D Indoor Distribution Fiber Optic Cable PVC Jacket For CCTV 24 CORE

Price	Negotiatable
MOQ	1000 Meters
Delivery Time	Negotiable
Brand	FONGKO
Place of Origin	China
Model Number	FKCAB-002

Product Details

Product Specification

Usage	Indoor distribution	Place of Origin	China
Use	other	Core number	24 core
Model Number	FKCAB-002	Type: Indoor Bundle cable	-40~+60
Brand Name	FONGKO	Type	Fiber Optic Cable
Price	Negotiatable	Fiber color	IEC Standard
Minimum Order Quantity	1000 Meters	Network	FTTH FTTX
Outer sheath	LSZH/PVC	Fiber type	G652D & G657A1 & G657A2 & 62.5/125 & 50/125
Cable diameter	6.0 - 6.8mm

Product Description

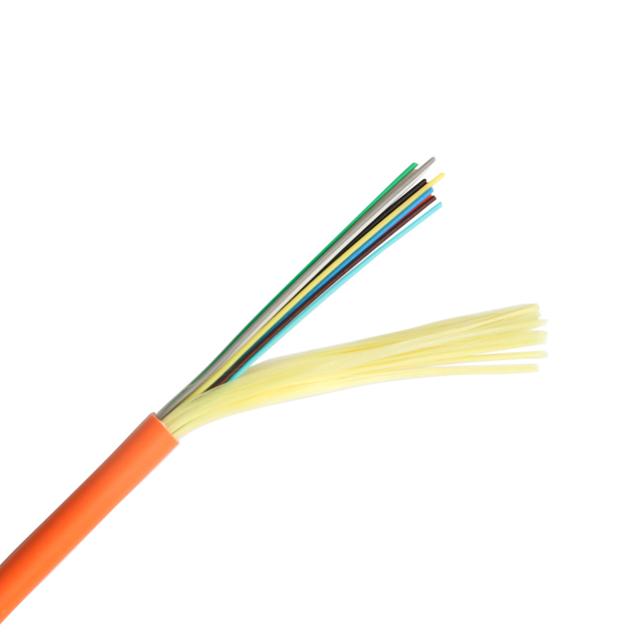

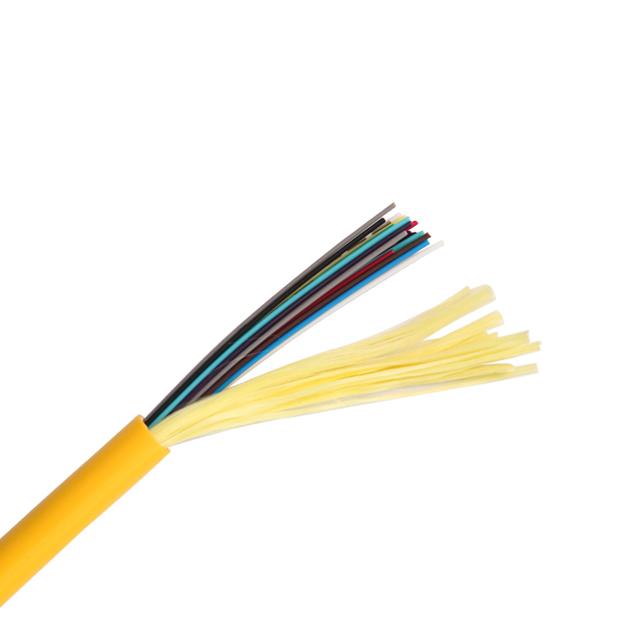

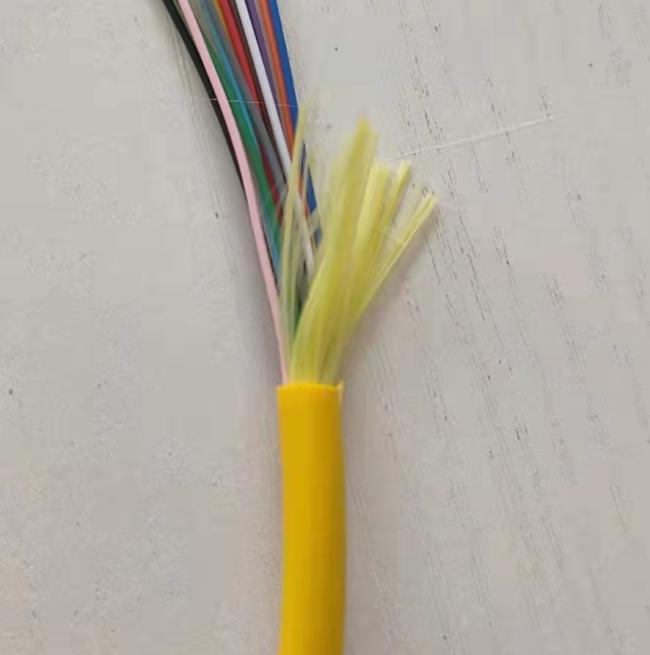

Indoor Bundle cable

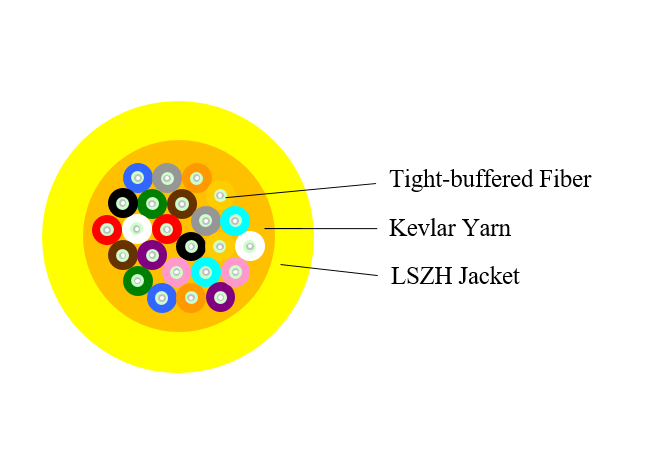

indoor fiber optic cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strength member over ф900μm or ф600μm tight buffer fibers and then is completed with PVC(LSZH) jacket.

Applications:

As building to building connecting cable, as pigtails movable connectors and patch cords for communication equipment.

Features:

Aramid yarn strength member ensure high tensile strength and long term stability in tranmission.
Small outer diameter, light weight, flame-retardant, easy to strip, low attenuation, highly soft.
Direct splicing between tight buffered cables and need no tie-in box or pigtail.

No.	Items			Unit	Specification
No.	Items			Unit			G.652D
1	Mode Field Diameter	1310nm	μm	9.2±0.4
1	Mode Field Diameter			1550nm	μm	10.4±0.5
2	Cladding Diameter			μm	124.8±0.7
3	Cladding Non-Circularity			%	≤0.7
4	Core-Cladding Concentricity Error			μm	≤0.5
5	Coating Diameter			μm	245±5
6	Coating Non-Circularity			%	≤6.0
7	Cladding-Coating Concentricity Error			μm	≤12.0
8	Cable Cutoff Wavelength			nm	λcc≤1260
9	Attenuation(max.)	1310nm	dB/km	≤0.4
9	Attenuation(max.)			1550nm	dB/km	≤0.3
