12F 12 Core CCTV Camera Cable Indoor Flame Retardant Cable 6mm

Price	Negotiatable
MOQ	1000 Meters
Delivery Time	Negotiable
Brand	FONGKO
Place of Origin	China
Model Number	FKCAB-001

Product Details

Product Specification

Usage	Indoor distribution	Place of Origin	China
Core number	12 core	Model Number	FKCAB-001
Type: Indoor Bundle cable	-40~+60	Brand Name	FONGKO
Type	Fiber optic patch cord	Price	Negotiatable
Fiber color	IEC Standard	Minimum Order Quantity	1000 Meters
Network	FTTH FTTX	Outer sheath	LSZH/PVC
Fiber type	G652D & G657A1 & G657A2 & 62.5/125 & 50/125	Cable diameter	6.0 - 6.8mm

Product Description

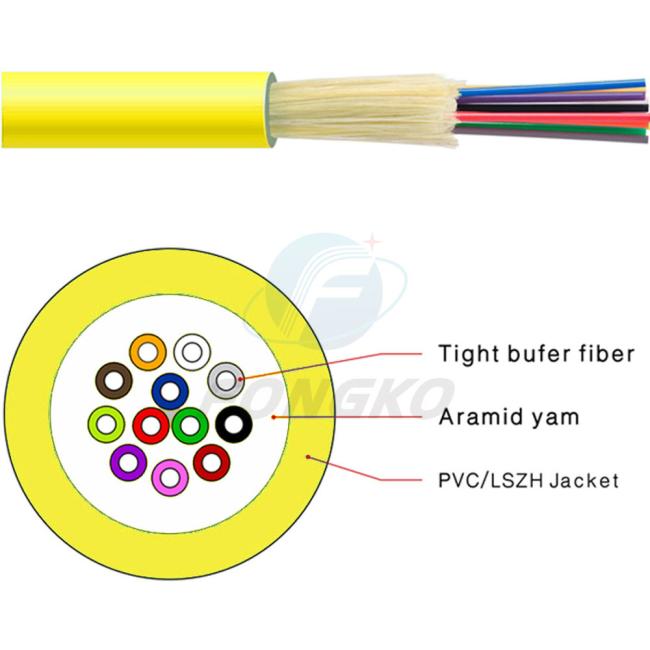

Indoor Bundle cable

indoor fiber optic cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strength member over ф900μm or ф600μm tight buffer fibers and then is completed with PVC(LSZH) jacket.

Applications:

As building to building connecting cable, as pigtails movable connectors and patch cords for communication equipment.

Features:

Aramid yarn strength member ensure high tensile strength and long term stability in tranmission.
Small outer diameter, light weight, flame-retardant, easy to strip, low attenuation, highly soft.
Direct splicing between tight buffered cables and need no tie-in box or pigtail.

	MPC-02	MPC-04	MPC-06	MPC-08	MPC-10	MPC-12
Cable Diameter(mm)	4.1±0.25	4.8±0.25	5.1±0.25	6.2±0.25	6.5±0.25	6.8±0.25
Cable Weight(kg/km)	12	20	24	29	32	35
Tight Buffer Fiber Diameter	900±50μm

Mechanical Characteristics
Tensile Strength	Long Term	80N	60	50
Tensile Strength		Short Term	150N	120	100
Crush Resistance	Long Term	100N/100mm	100N/100mm	100N/100mm
Crush Resistance		Short Term	500N/100mm	500N/100mm	500N/100mm
Bending Radius	Dynamic	20XD	20XD	20XD
Bending Radius		Static	10XD	10XD	10XD

Environmental Characteristics
Transport Temperature	-20℃～﹢60℃
Storage Temperature	-20℃～﹢60℃
Installation Temperature	-5℃～﹢50℃
Operating Temperature	-20℃～﹢60℃
